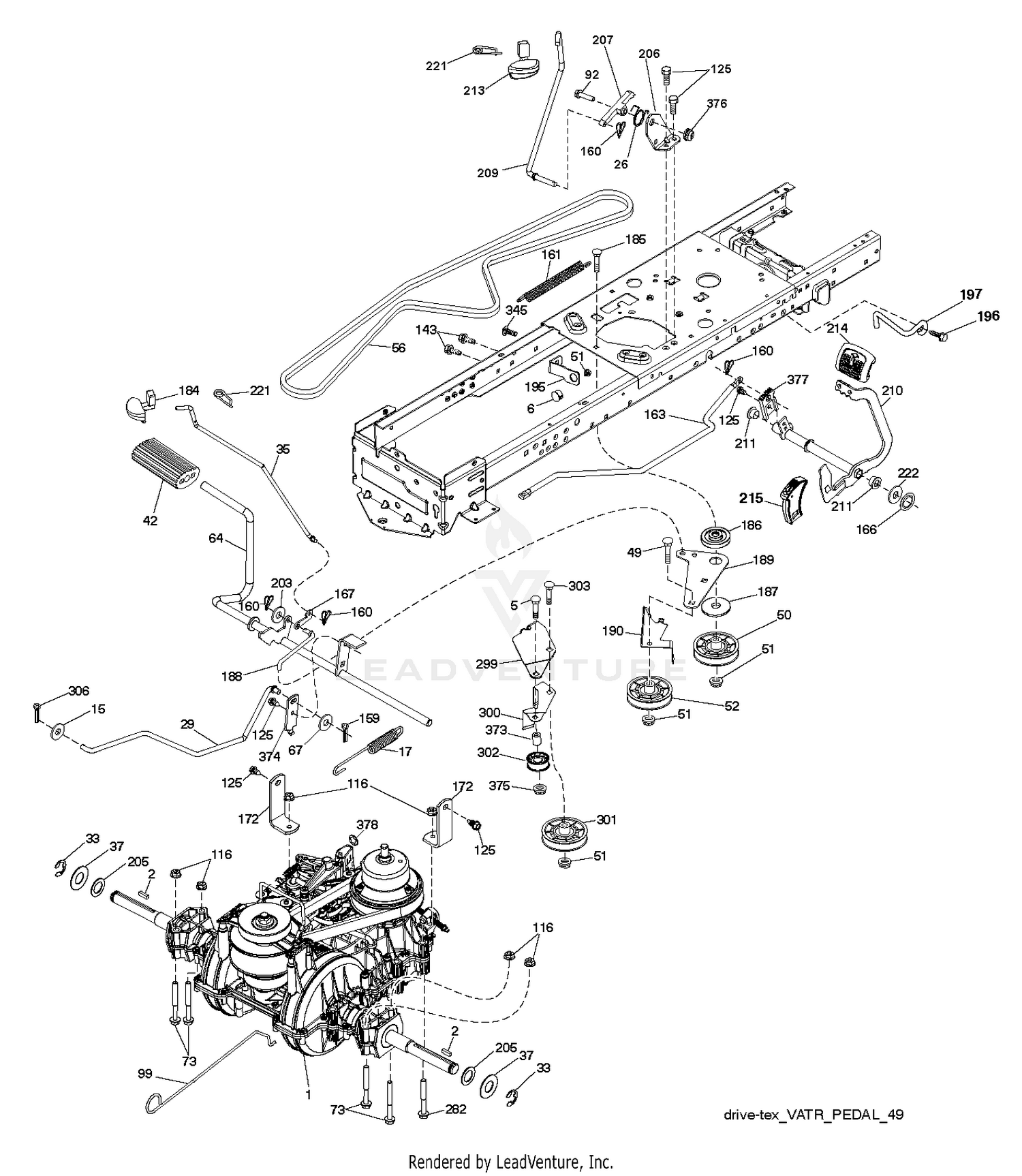

| Ref | Part Number | Description |
|---|
| 1 |
51-5460 |
KEY Price: $10.14 |
| 1 |
590277601 |
TRANSAXLE.VARIATOR.FAST.PDL.SD This part replaces 584973901. Price: $899.99 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
60-5220 |
NUT Price: $9.86 |
| 3 |
51-6270 |
DISCONTINUED Price: Call Us |
| 4 |
51-6310 |
PULLEY Price: $337.16 |
| 5 |
60-7110 |
DISCONTINUED Price: Call Us |
| 5 |
874760636 |
BOLT Price: $4.99 |
| 6 |
51-7250 |
WASHER Price: $1.22 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 7 |
51-6010 |
COVER Price: $67.40 |
| 9 |
93-3510 |
SPRING-WASHER This part replaces 51-6390. Price: $1.49 |
| 10 |
60-7480 |
DISCONTINUED Price: Call Us |
| 11 |
51-7400 |
WASHER Price: $1.31 |
| 12 |
60-7490 |
DISCONTINUED Price: Call Us |
| 13 |
60-7430 |
SEAL Price: $273.08 |
| 14 |
51-5900 |
OIL SEAL CASE Price: $252.56 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
51-6370 |
DISCONTINUED Price: Call Us |
| 17 |
501487101 |
SPRING.BRAKE.VARIATOR Price: $4.99 |
| 17 |
51-6360 |
DISCONTINUED Price: Call Us |
| 18 |
51-6340 |
FLYWHEEL ASM Price: $1,975.19 |
| 19 |
51-6350 |
RING GEAR Price: $506.66 |
| 20 |
51-6300 |
PIN-DOWEL Price: $5.90 |
| 21 |
51-5940 |
DISCONTINUED Price: Call Us |
| 23 |
51-6030 |
DISCONTINUED Price: Call Us |
| 25 |
86-6280 |
DISCONTINUED Price: Call Us |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
51-6330 |
THRUST PLATE Price: $34.16 |
| 29 |
584823102 |
ROD.BRAKE.VARIATOR.SD3.X431 This part replaces 584823101. Price: $9.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855001 |
Belts This part replaces 532197253. Price: $34.99 |
| 64 |
589671401 |
SHAFT VARIATOR PEDAL CROSS This part replaces 532448353. Price: $49.99 |
| 67 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532435935 |
ROD.BYPASS.VARIATOR.GEN2 Price: $4.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
583971301 |
ROD.CONTROL.PEDAL.VARIATOR Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 172 |
583974201 |
STRAP.TORQUE.VARIATOR Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 195 |
581504601 |
BRACKET.BRAKE.BRAKE.VAR.SD Price: $6.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
532448264 |
LATCH.CONTROL.CRUISE.VARIATOR Price: $17.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
588921002 |
WELDMENT.PEDAL.VARIATOR.X431 This part replaces 588921001. Price: $39.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 282 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 299 |
532415683 |
BRACKET.MOUNT.IDLERS Price: $7.99 |
| 300 |
531153901 |
SERVICE KIT IDLER KEEPER This part replaces 532415681. Price: $3.99 |
| 301 |
532415680 |
PULLEY.IDLER.V-GROOVE Price: $24.99 |
| 302 |
581420501 |
PULLEY.IDLER.FLAT.2" Price: $22.99 |
| 303 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 306 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 345 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 373 |
581461801 |
SPACER.IDLER Price: $3.99 |
| 374 |
581475201 |
ARM.CONTROL.BRAKE Price: $4.99 |
| 376 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 378 |
584287701 |
NUT.PUSH.8MM Price: $3.99 |
