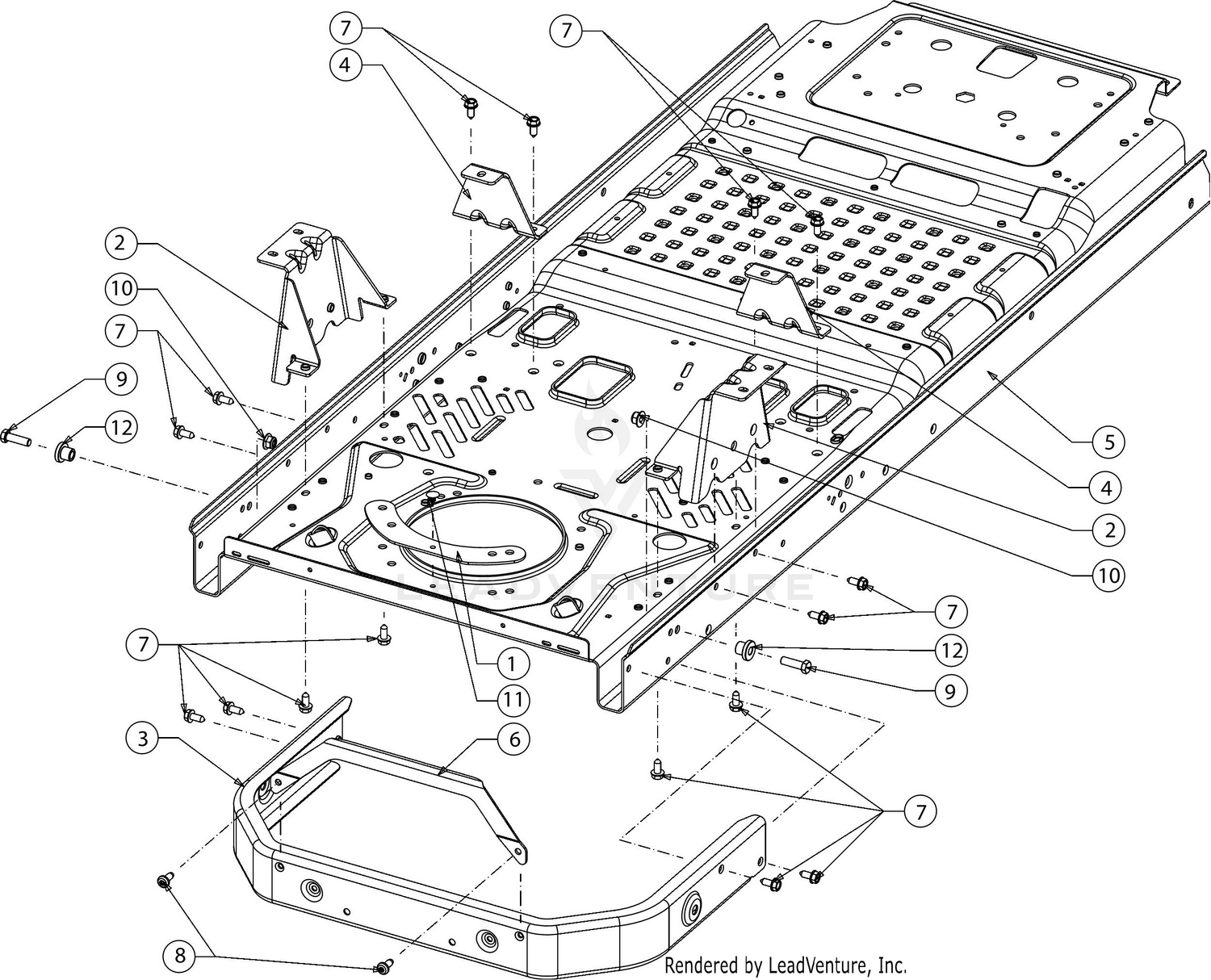

Frame
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 703-05383B-0637 | RETAINER PLATE Price: $16.27 |
| 2 | 703-08555-0637 | TRANSMISSION MOUNTING BRACKET Price: $27.95 |
| 3 | 703-08558B-0638 | REAR BUMPER Price: $45.58 |
| 4 | 703-08570-0637 | TRANSMISSION MOUNTING BRACKET Price: $11.15 |
| 5 | 703-09578K-0638 | FRAME (MTD RED) This part replaces 703-09578D-0638. Price: $550.36 |
| 6 | 703-09884-0637 | Rear Muffler Shield Bracket This part replaces 703-09884-0638. Price: $23.29 |
| 7 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 8 | 710-06096 | SCREW 5/16-18 X.75 Price: $5.94 |
| 9 | 710-3005 | SCREW 3/8-16 X 1.25 GR5 Price: $3.61 |
| 10 | 712-04065 | NUT Price: $3.68 |
| 11 | 726-04072A | RATCHET CLIP Price: $3.15 |
