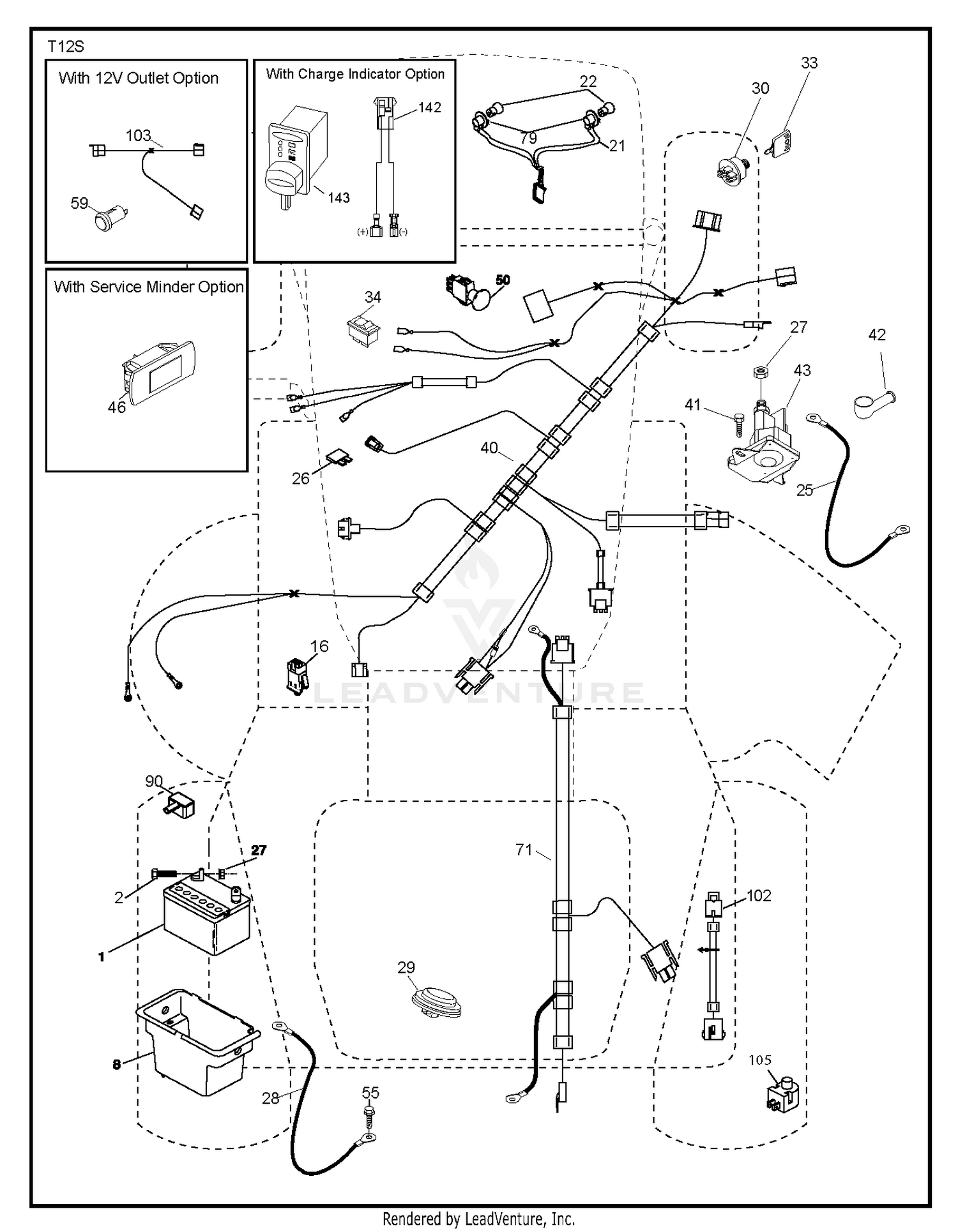

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 2 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
75-6390 |
FAN PULLEY Price: $50.20 |
| 4 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 5 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 6 |
75-4450 |
HUB Price: $205.03 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
532193228 |
BOX.BATTERY.MNT.REAR.L Price: $24.99 |
| 8 |
67-1630 |
SPACER Price: $28.84 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 10 |
93-7045 |
DISCONTINUED Price: Call Us |
| 11 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
94-1896 |
HOSE - AIR CLEANNER Price: $52.78 |
| 16 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
75-1360 |
DISCONTINUED Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
117-2738 |
ENGINE-MITSUBISHI (SERVICE) This part replaces 94-9432. Price: $11,452.38 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
5-3637 |
SPACER Price: $2.23 |
| 24 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 25 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 25 |
585555401 |
CABLE.STARTER.8GA.14 Price: $4.99 |
| 26 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
57-6390 |
NUT-JAM Price: $0.89 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532198885 |
CABLE.BLACK.18"REAR.BA Price: $17.99 |
| 28 |
93-7048 |
Bracket-Engine L.H. Rear Price: Call Us |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
70-8220 |
GROUND CABLE Price: $12.98 |
| 32 |
323-11 |
SCREW-HH Price: $1.08 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 33 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
63-7140 |
MOUNT-SHOCK, ENGINE Price: $54.67 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
93-7044-03 |
LH FRONT MOUNT ASM This part replaces 93-7044. Price: $78.31 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 40 |
581022701 |
HARNESS.IGN.DASH.HUSQ/PRED Price: $44.99 |
| 40 |
93-7049-03 |
DISCONTINUED This part replaces 93-7049. Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 42 |
323-7 |
SCREW-HH Price: $0.65 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 43 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 44 |
75-1380 |
V-BELT, FAN Price: $40.41 |
| 45 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 46 |
27-9560 |
SPACER Price: $3.87 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 47 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 48 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 49 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 50 |
321-4 |
SCREW-HH Price: $0.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
322-2 |
SCREW-HH Price: $0.69 |
| 52 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 53 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 55 |
323-9 |
SCREW-HH Price: $1.29 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 56 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 57 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 58 |
63-6360 |
Bracket-Engine Rear Price: Call Us |
| 59 |
63-6362 |
Bracket-Engine Front Price: Call Us |
| 60 |
3213-2 |
SCREW-HH Price: $1.90 |
| 61 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 62 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 102 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 105 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 142 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 583857801. Price: $27.99 |
| 143 |
583593501 |
CTEK CHARGE PORT W/HARNESS This part replaces 532448059. Price: $27.99 |
