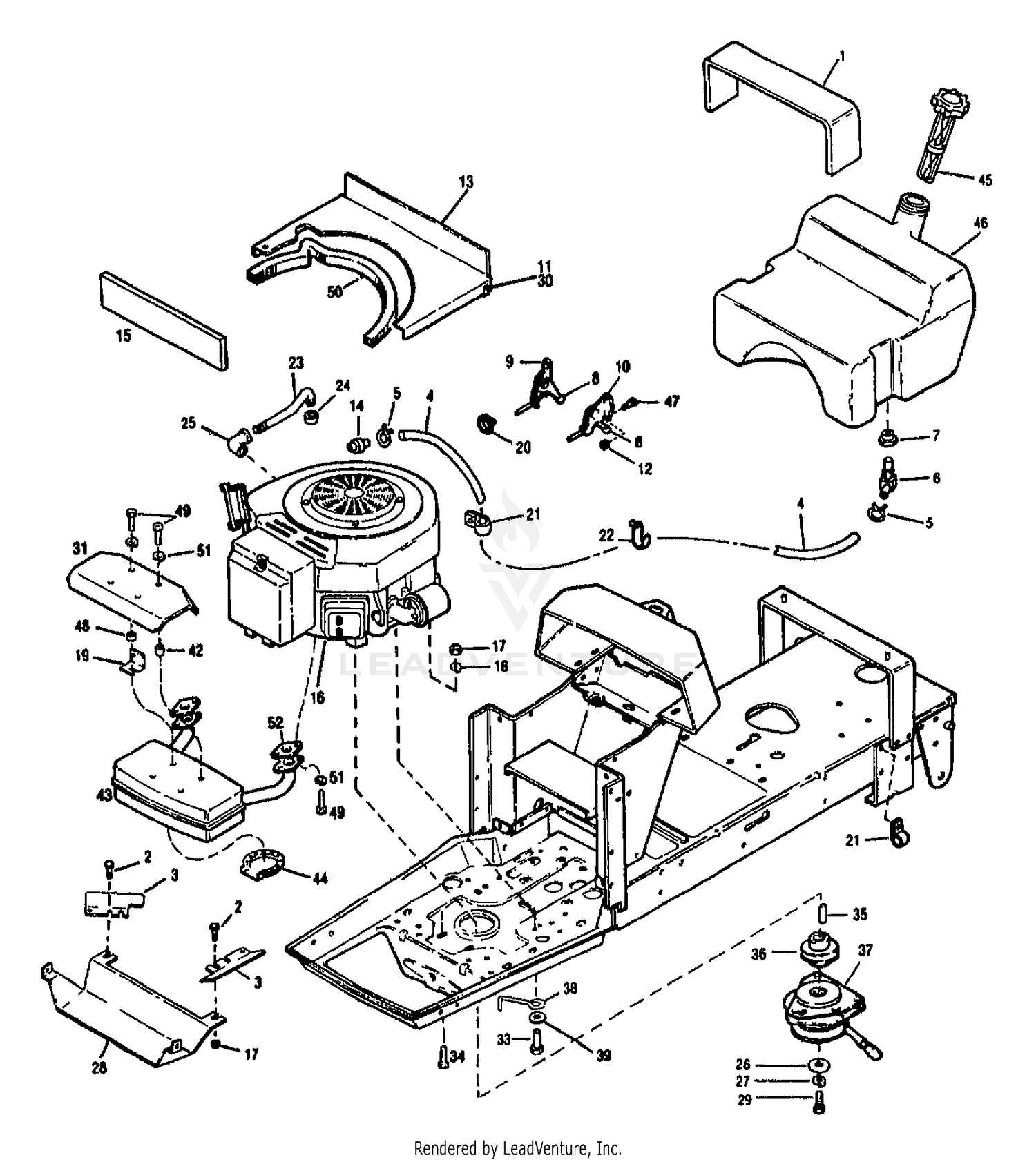

| Ref | Part Number | Description |
|---|
| 1 |
1744390 |
PAD-FUEL TANK Price: Call Us |
| 2 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 3 |
1758459001 |
HEAT SHIELD Not Available Price: |
| 4 |
1762101 |
FUEL LINE Not Available Price: |
| 5 |
726-0205 |
Hose Clamp This part replaces 1750687. Price: $3.71 |
| 6 |
951-0171 |
Fuel Shut-Off Valve with Screen This part replaces 1751477. Price: $18.13 |
| 7 |
935-0149 |
BUSHING This part replaces 1738433. Price: $2.43 |
| 8 |
731-0108 |
Knob, Throttle Control This part replaces 1737118. Price: $8.12 |
| 9 |
1758801 |
CONTROL-THROTTLE Not Available Price: |
| 10 |
1758800P |
CONTROL-CHOKE Not Available This part replaces 1758800. Price: |
| 11 |
710-0425 |
Screw, Machine, #10-24, 0.625 This part replaces 1115815. Price: $4.21 |
| 12 |
712-0272 |
Hex Sems Nut 010-24 Thd. This part replaces 1185985. Price: $3.58 |
| 13 |
1758426001 |
SHIELD-HEAT Price: Call Us |
| 14 |
BS-298090S |
Fuel Filter This part replaces 1727491. Price: $5.76 |
| 15 |
1764658 |
FOAM-LOWER Price: Call Us |
| 17 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 18 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 19 |
1758311001 |
BRACKET-HEAT SHIELD Not Available Price: |
| 21 |
1747738 |
CLIP-J Not Available Price: |
| 22 |
1745366 |
HANGER-CAB Not Available Price: |
| 23 |
1758458 |
TUBE-OIL D Not Available Price: |
| 24 |
1745688 |
CAP-DRAIN Not Available Price: |
| 25 |
1105029 |
ELBOW-90 D Not Available Price: |
| 26 |
1744455 |
WASHER-SPE Not Available Price: |
| 27 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 28 |
1758464001 |
HEAT SHIELD Not Available Price: |
| 29 |
710-3157A |
Screw, 7/16-20 x 3.25 This part replaces 1767165. Price: $9.67 |
| 30 |
712-0147 |
U-Type Speed Nut This part replaces 1185986. Price: $6.01 |
| 31 |
1763649001 |
HEAT SHIELD Not Available Price: |
| 33 |
1111606 |
BOLT - HEX HD, 5/16-18 x 2 Not Available Price: |
| 34 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 1100799. Price: $3.75 |
| 35 |
1748146 |
SQUARE KEY .25 Not Available Price: |
| 36 |
1742535 |
SHEAVE Price: Call Us |
| 37 |
917-3497 |
PTO CLUTCH ASSEMBLY This part replaces 1755341. Price: $587.56 |
| 38 |
1754787 |
CLUTCH-RETAINER Not Available Price: |
| 39 |
736-0262 |
FLAT WASHER .385X.870X.090 This part replaces 1100255. Price: $3.66 |
| 42 |
1758719 |
SPACER Price: Call Us |
| 43 |
1763650 |
MUFFLER Price: Call Us |
| 44 |
751-0564B |
Deflector, Muffler This part replaces 1758940. Price: $12.14 |
| 45 |
751-0531B |
Gas Gauge This part replaces 1748758. Price: $73.30 |
| 46 |
1756460 |
TANK-FUEL Price: Call Us |
| 47 |
1750962 |
SCR-FHP #1 Not Available Price: |
| 48 |
1714721 |
SPACER-.5X.281X.37 Not Available Price: |
| 49 |
1100069 |
SCR-HH 1/4-20X1.0 Price: $3.66 |
| 50 |
1758768 |
STRIP-SEAL Not Available Price: |
| 51 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
