| Ref | Part Number | Description |
|---|
| 1 |
43-3770 |
THROTTLE LINK Price: $7.78 |
| 2 |
3219-1 |
NUT-HEX Price: $0.47 |
| 3 |
18-1720 |
BALL JOINT Price: $50.30 |
| 4 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 5 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 6 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
43-3780 |
SWIVEL-CABLE Price: $25.86 |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
43-1940 |
DISCONTINUED Price: Call Us |
| 12 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 13 |
94-9160 |
DISCONTINUED This part replaces 43-1440. Price: Call Us |
| 14 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 15 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 16 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 17 |
5-3637 |
SPACER Price: $2.23 |
| 18 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 19 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 21 |
42-9100 |
V-BELT, FAN Price: $25.25 |
| 22 |
53-9710-03 |
ENGINE MT This part replaces 53-9710. Price: $92.13 |
| 23 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 24 |
32128-23 |
NUT-HF Price: $1.51 |
| 25 |
3256-64 |
WASHER-FLAT Price: $0.63 |
| 26 |
43-5950 |
WASHER-LOCK, SPRING Price: $1.15 |
| 27 |
43-3510 |
ENGINE PULLEY Price: $413.91 |
| 28 |
43-3210 |
SCREW-HH Price: $4.27 |
| 29 |
75-9900-01 |
SUPPORT-ENGINE, FRONT This part replaces 75-9900. Price: $226.52 |
| 30 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 31 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 32 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 33 |
251-252 |
BEARING Price: $98.35 |
| 34 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 35 |
32120-69 |
RING-SNAP Price: $2.78 |
| 36 |
3241-5 |
SCREW-SET Price: $0.61 |
| 37 |
110-5236 |
HUB-ENGINE This part replaces 27-1960. Price: $30.97 |
| 38 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 39 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 40 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 41 |
43-3190 |
HEX HD CAPSCREW Price: $1.40 |
| 42 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 43 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 44 |
32128-37 |
NUT-HF Price: $3.63 |
| 45 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 46 |
33114-060 |
SCREW-HH This part replaces 42-9510. Price: $0.88 |
| 47 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 48 |
43-3790 |
BELT GUIDE BRKT Price: $53.55 |
| 49 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 50 |
3217-5 |
NUT-HEX Price: $0.25 |
| 51 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 52 |
43-3730-03 |
THROTL CONT BRKT ASM This part replaces 43-3730. Price: $67.00 |
| 53 |
329-7 |
SCREW-HH Price: $0.22 |
| 54 |
43-3760 |
THROTTLE LEVER Price: $18.91 |
| 55 |
47-7420 |
HOSE-FUEL Price: $28.62 |
| 56 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 57 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 58 |
63-1400 |
ROD-BELT Price: $17.83 |
| 59 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 60 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 61 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 62 |
5-0652 |
SPACER Price: $5.35 |
| 63 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |

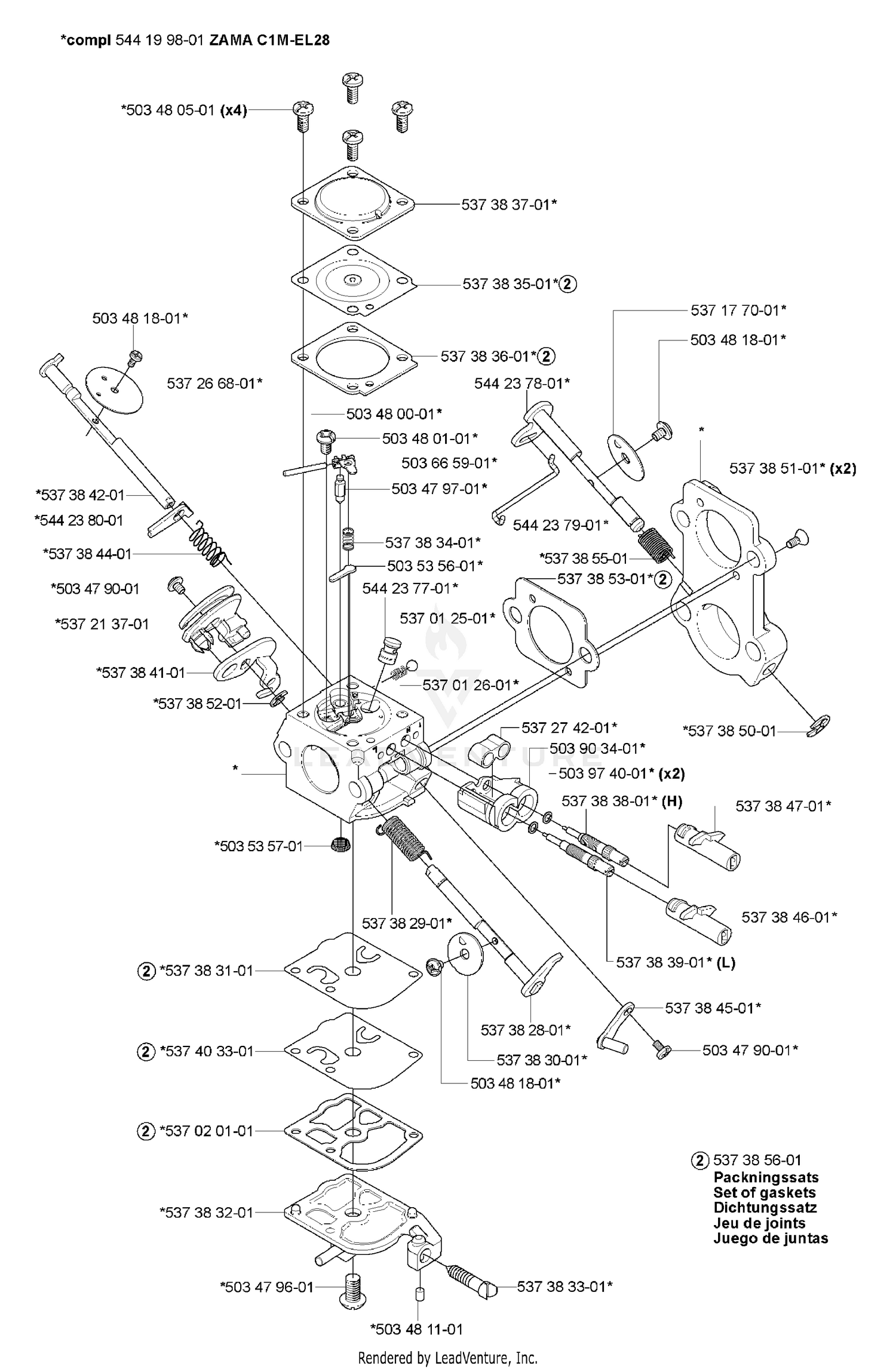

| 503479001 |
503479001 |
SCREW Price: $2.99 |
| 503479601 |
503479601 |
SCREW Price: $2.99 |
| 503479701 |
503479701 |
INLET NEEDLE Price: $8.99 |
| 503480001 |
537020801 |
PIN This part replaces 503480001. Price: $2.99 |
| 503480101 |
503480101 |
SCREW Price: $2.99 |
| 503480501 |
503480501 |
SCREW Price: $2.99 |
| 503481101 |
503481101 |
PLUG Price: $3.99 |
| 503481801 |
503481801 |
SCREW Price: $2.99 |
| 503535601 |
503535601 |
PLUG Price: $3.99 |
| 503535701 |
503535701 |
STRAINER Price: $3.99 |
| 503665901 |
503665901 |
LEVER Price: $3.99 |
| 503903401 |
503903401 |
SLEEVE Price: $6.99 |
| 503974001 |
503974001 |
WASHER Price: $2.99 |
| 537012501 |
537012501 |
BALL Price: $2.99 |
| 537012601 |
537012601 |
SPRING Price: $2.99 |
| 537020101 |
537020101 |
GASKET Price: $3.99 |
| 537177001 |
537177001 |
THROTTLE FLAP Price: $14.99 |
| 537213701 |
537213701 |
LEVER Price: $6.99 |
| 537266801 |
537266801 |
CHOKE FLAP Price: $4.99 |
| 537274201 |
537274201 |
SLEEVE Price: $5.99 |
| 537382801 |
537382801 |
THROTTLE SHAFT Price: $24.99 |
| 537382901 |
537382901 |
SPRING Price: $3.99 |
| 537383001 |
537383001 |
FLAP Price: $11.99 |
| 537383101 |
537383101 |
PUMP DIAPHRAGM Price: $11.99 |
| 537383201 |
537383201 |
COVER Price: $24.99 |
| 537383301 |
537383301 |
SCREW Price: $6.99 |
| 537383401 |
537383401 |
SPRING Price: $3.99 |
| 537383501 |
537383501 |
DIAPHRAGM Price: $22.99 |
| 537383601 |
537383601 |
GASKET Price: $4.99 |
| 537383701 |
537383701 |
COVER Price: $11.99 |
| 537383801 |
537383801 |
NEEDLE HIGH SPEED Price: $14.99 |
| 537383901 |
537383901 |
LOW SPEED NEEDLE Price: $9.99 |
| 537384101 |
537384101 |
LEVER Price: $4.99 |
| 537384201 |
537384201 |
CHOKE SHAFT Price: $17.99 |
| 537384401 |
537384401 |
SPRING Price: $3.99 |
| 537384501 |
537384501 |
LEVER Price: $17.99 |
| 537384601 |
537384601 |
LIMITER Price: $4.99 |
| 537384701 |
537384701 |
LIMITER Price: $6.99 |
| 537385001 |
537385001 |
CLIP Price: $4.99 |
| 537385101 |
537385101 |
SCREW Price: $2.99 |
| 537385201 |
537385201 |
CLIP Price: $2.99 |
| 537385301 |
537385301 |
GASKET Price: $3.99 |
| 537385501 |
537385501 |
SPRING Price: $3.99 |
| 537385601 |
537385601 |
GASKET SET Price: $17.99 |
| 537403301 |
537403301 |
DIAPHRAGM Price: $9.99 |
| 544199801 |
580735801 |
CARBURETOR This part replaces 544199801. Price: $129.99 |
| 544237701 |
544237701 |
JET Price: $14.99 |
| 544237801 |
544237801 |
SHAFT Price: $19.99 |
| 544237901 |
544237901 |
ROD Price: $8.99 |
