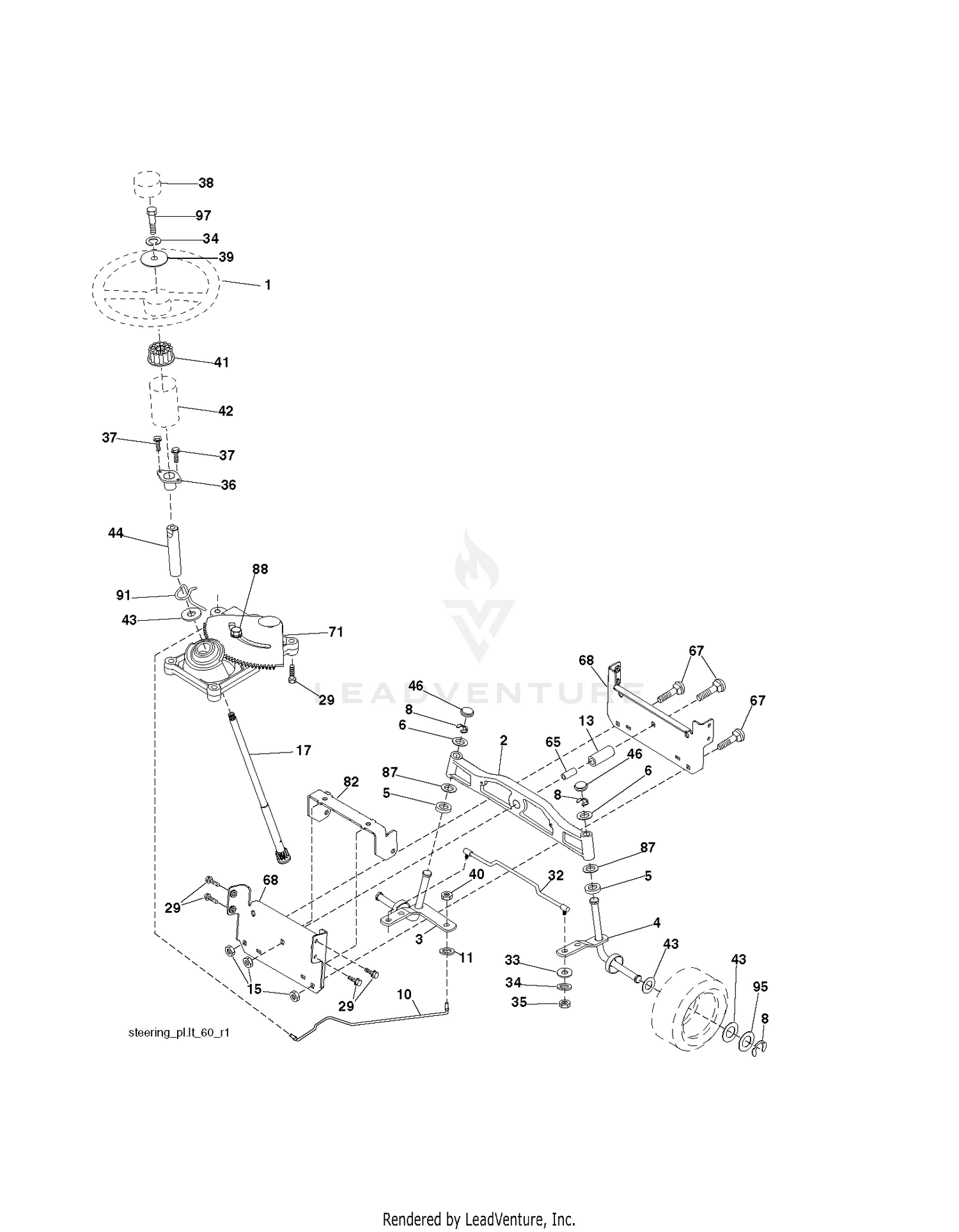

| Ref | Part Number | Description |
|---|
| 1 |
132-6203 |
CONTROL KIT Price: $3,452.34 |
| 2 |
132-6204 |
COIL KIT Price: $736.78 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 3 |
136-4397 |
CHARGE RELIEF KIT Price: $86.77 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
136-4399 |
SHAFT Price: $425.69 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 7 |
125-5280 |
RING-RETAINING Price: $11.40 |
| 8 |
131-8616 |
RING-RETAINING Price: $16.97 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
127-6214 |
SEAL-LIP Price: $131.03 |
| 10 |
136-4398 |
VALVE PLATE Price: $462.40 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
132-6206 |
O-RING Price: $7.73 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
125-5288 |
O-RING Price: $34.23 |
| 13 |
131-7388 |
O-RING Price: Call Us |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
125-5274 |
SCREW Price: $8.89 |
| 15 |
125-5302 |
PLUG Price: $25.48 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
125-5273 |
NUT-SEAL Price: $21.58 |
| 17 |
125-5272 |
SCREW Price: $9.02 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $37.99 |
| 18 |
125-5283 |
GASKET-CONTROL Price: $41.13 |
| 19 |
125-5269 |
RING-LOCKING Price: $4.61 |
| 20 |
125-5266 |
SCREEN Price: $35.26 |
| 21 |
125-5282 |
SCREW Price: $9.84 |
| 22 |
125-5270 |
SCREW Price: $9.02 |
| 23 |
125-5298 |
O-RING Price: $1.68 |
| 24 |
92-1353 |
SHIM KIT Price: $36.78 |
| 25 |
125-5301 |
PLUG Price: $56.91 |
| 26 |
75-0240 |
O-RING Price: $2.36 |
| 27 |
84-0560 |
O-RING Price: $4.73 |
| 28 |
69-3080 |
PLUG Price: $40.47 |
| 29 |
69-3130 |
PLUG Price: $62.97 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
75-0170 |
PLUG-THREAD, STRAIGHT Price: $18.20 |
| 31 |
125-5270 |
SCREW Price: $9.02 |
| 32 |
110-6485 |
PIN-SLOTTED Price: $1.97 |
| 32 |
532171888 |
TIE ROD Price: $59.99 |
| 33 |
136-4393 |
VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
136-4392 |
VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
132-6205 |
OVERHAUL SEAL KIT Price: $239.18 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532441425 |
STEERING.BOOT.HUSQ.LT This part replaces 532411139. Price: $7.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532199978. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 97 |
874780564 |
BOLT Price: $4.99 |
