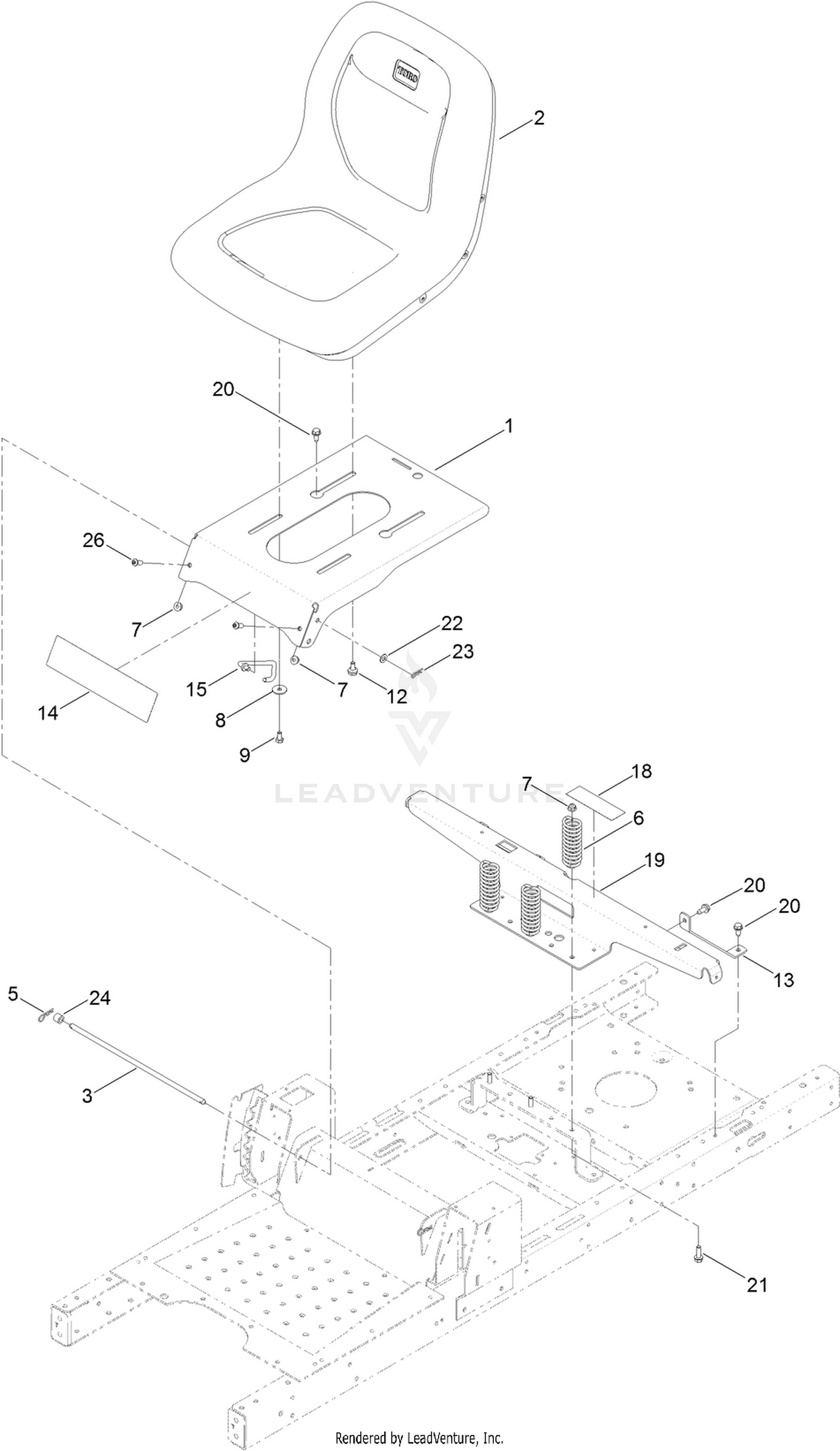

| Ref | Part Number | Description |
|---|
| 1 |
131-4037-01 |
PAN-SEAT Price: $51.78 |
| 2 |
119-8829 |
SEAT-18 INCH Price: $218.88 |
| 3 |
115-4966 |
ROD-STOP Price: $12.44 |
| 5 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 6 |
92-7054 |
SPRING-COMPRESSION Price: $13.32 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 9 |
322-2 |
SCREW-HH Price: $0.69 |
| 12 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 13 |
119-3431-03 |
SUPPORT-TANK, REAR Price: $3.68 |
| 14 |
119-8903 |
DECAL-TIMECUTTER Price: $13.36 |
| 15 |
119-8972 |
STOP-SEAT Price: $4.80 |
| 18 |
106-8717 |
DECAL-SERVICE, CE Price: $4.87 |
| 19 |
131-1039-03 |
SUPPORT-POD, WIDE Price: $80.40 |
| 20 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 21 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 24 |
1-413088 |
BUSHING-LEVER, LIFT Price: $6.74 |
