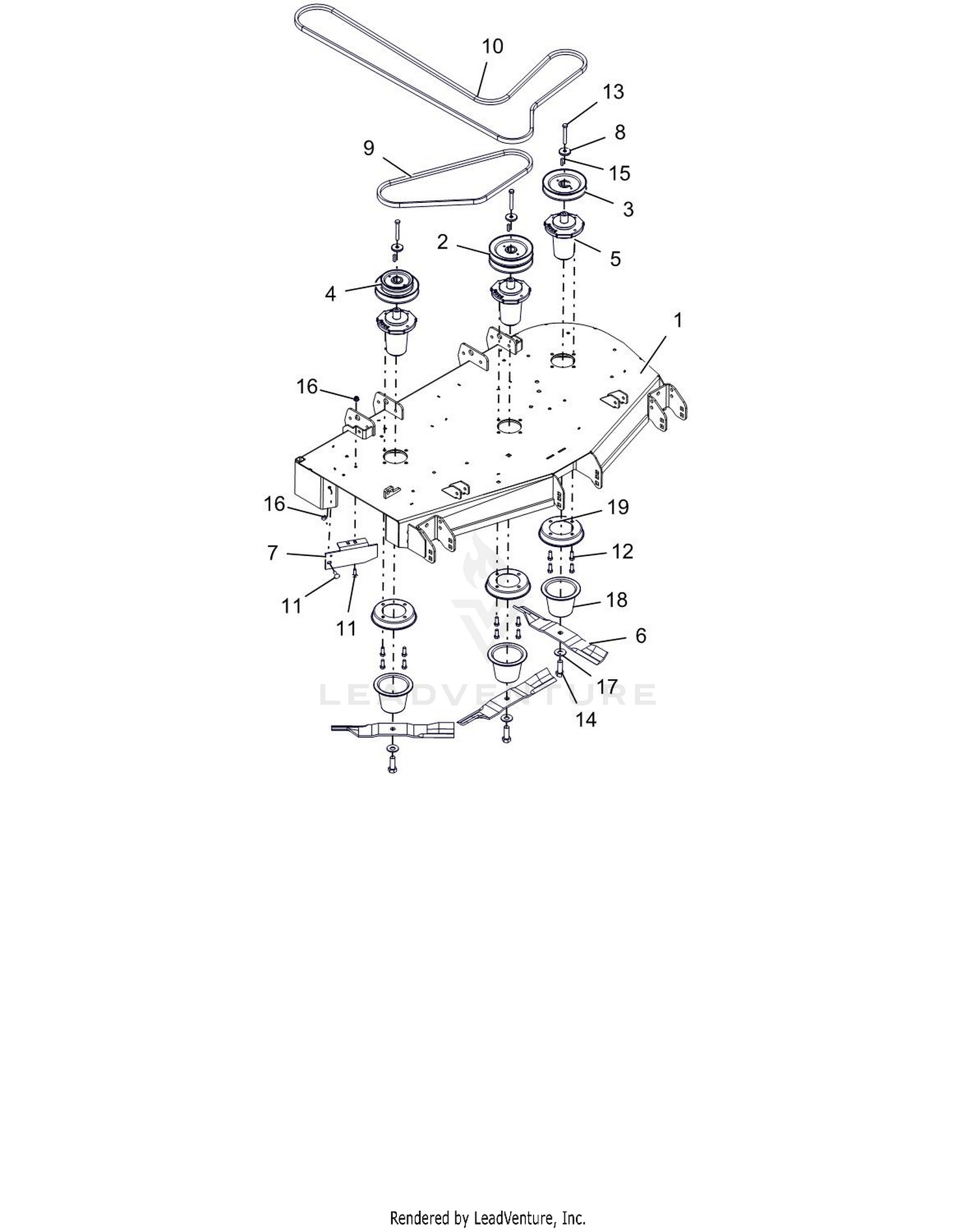

| Ref | Part Number | Description |
|---|
| 1 |
59109200 |
DECK, PT48 W/SAFETY DECALS Price: $668.45 |
| 2 |
07329200 |
PULLEY, DOUBLE 1.000 ID X 5.750 OD This part replaces 07329267. Price: $72.45 |
| 3 |
07329300 |
PULLEY, V - 1.000 ID X 5.750 OD This part replaces 07329367. Price: $63.95 |
| 4 |
07340200 |
PULLEY, DBL-1"IDX5.75"&4.25"OD Price: $56.45 |
| 5 |
59125000 |
ASM, MAINT FREE ALUM SPINDLE This part replaces 59225700. Price: $214.45 |
| 6 |
00450200 |
BLADE, 16.19" MOWER (HI-LIFT) Price: $25.95 |
| 8 |
04530500 |
RETAINER, SHEAVE Price: $7.95 |
| 9 |
07200035 |
V-BELT, B-COGGED Price: $48.95 |
| 10 |
07200809 |
V-BELT, B RAW EDGE EPDM Price: $104.95 |
| 11 |
06200231 |
BLT-RHSN .31-18X1.00 G5 ZCC This part replaces 06216100. Price: $1.45 |
| 12 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 13 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
| 14 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 15 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 16 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 17 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 18 |
05011500 |
GUARD, SPINDLE LOWER Price: $24.25 |
