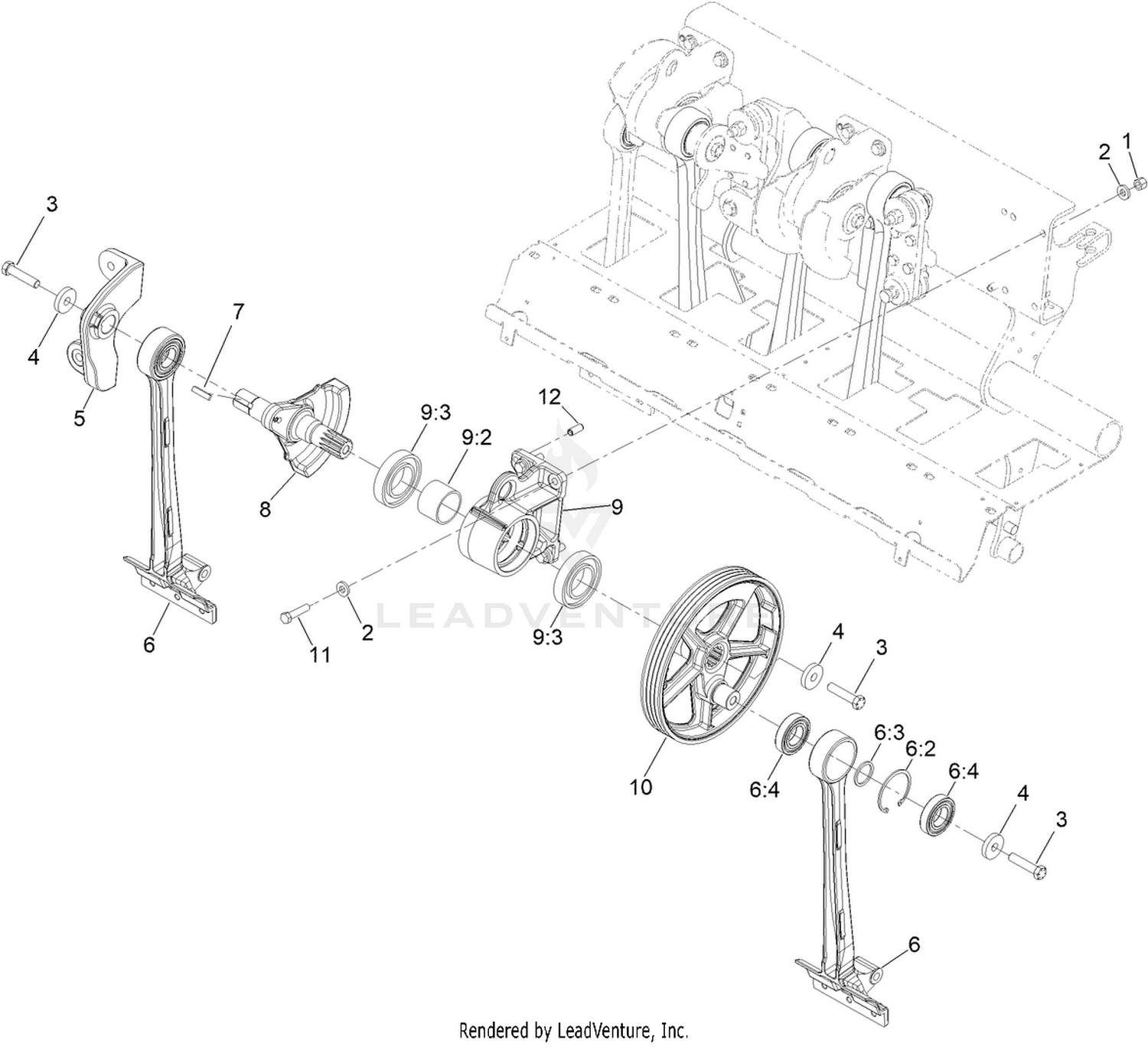

RH Crankarm Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 2 | 107-3395 | WASHER-HARDENED Price: $1.49 |
| 3 | 110-4614 | SCREW-HH Price: $3.44 |
| 4 | 105-1016 | WASHER-FLAT Price: $17.48 |
| 5 | 110-4567 | COUPLING-NO. 2 Price: $161.76 |
| 6 | 140-8809 | STOMPER ARM ASM Price: $184.77 |
| 7 | 110-4546 | KEY-SQUARE Price: $6.70 |
| 8 | 110-4571 | CRANKARM-NO. 2, 4, 6 Price: $512.42 |
| 9 | 115-4703 | HOUSING ASM Price: $332.02 |
| 10 | 114-1458 | PULLEY-CRANKSHAFT Price: $267.08 |
| 11 | 325-9 | SCREW-HH Price: $1.87 |
