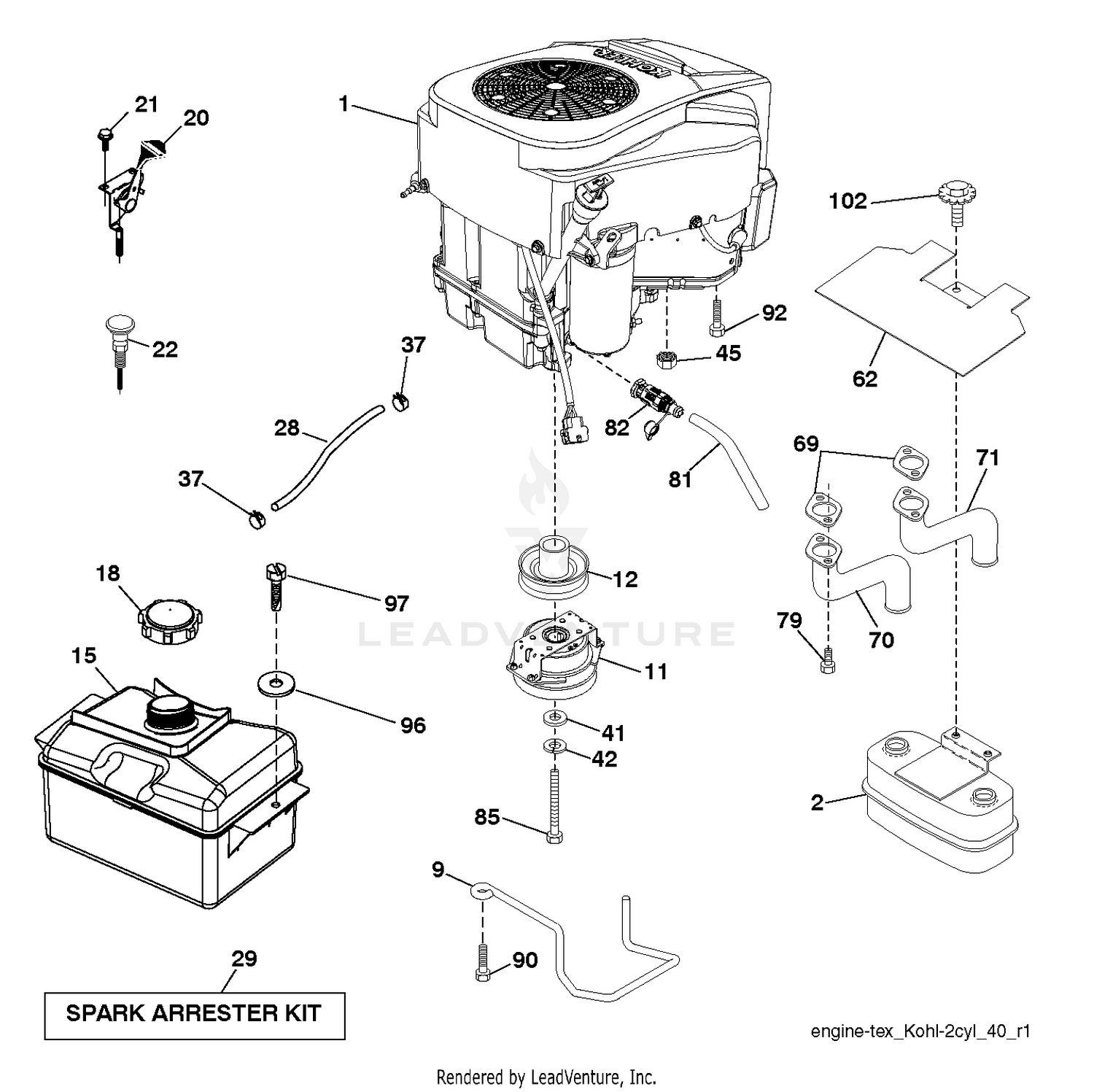

| Ref | Part Number | Description |
|---|
| 1 |
63-7700 |
DISCONTINUED Price: Call Us |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
63-7710 |
STRIP-MAGNETIC Price: $11.89 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
92-5757-03 |
SUPPORT-RADIATOR ASM This part replaces 92-5757. Price: $284.64 |
| 6 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 7 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 9 |
110-4112 |
HOSE-FUEL This part replaces 71-3384. Price: $12.60 |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 10 |
66-8180 |
HYDRAULIC HOSE ASM Price: $119.78 |
| 11 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
76-8750 |
PLATE-WARNING Price: $9.67 |
| 12 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 13 |
3290-55 |
RIVET-POP Price: $0.25 |
| 15 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $99.99 |
| 16 |
321-4 |
SCREW-HH Price: $0.99 |
| 17 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 18 |
93-9940 |
DISCONTINUED Price: Call Us |
| 19 |
84-7680 |
FAN SHROUD This part replaces 92-6503. Price: $256.05 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
66-3180 |
TUBE-VENT Price: $18.60 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
63-6020 |
HOSE - LOWER RADIATOR Price: $78.30 |
| 22 |
2412-103 |
CLAMP Price: $2.51 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
109-0289 |
HOSE-FUEL This part replaces 63-7600. Price: $33.99 |
| 26 |
119-2241 |
COOLING ASM This part replaces 82-2310. Price: $1,497.64 |
| 27 |
63-6440-03 |
SHIELD-RADIATOR, BOTTOM This part replaces 63-6440. Price: $115.58 |
| 28 |
304-46 |
DRAINCOCK Price: $7.55 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
66-8500 |
HYD HOSE ASM Price: $89.96 |
| 31 |
3269-13 |
RIVET-POP Price: $0.25 |
| 32 |
354-20 |
FITTING-TEE Price: $12.61 |
| 33 |
354-22 |
FITTING-BARBED Price: $4.64 |
| 34 |
354-21 |
FITTING-BARBED Price: $6.88 |
| 35 |
109-0294 |
HOSE-FUEL This part replaces 66-3170. Price: $6.29 |
| 36 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 37 |
3217-29 |
NUT-HEX Price: $0.25 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
