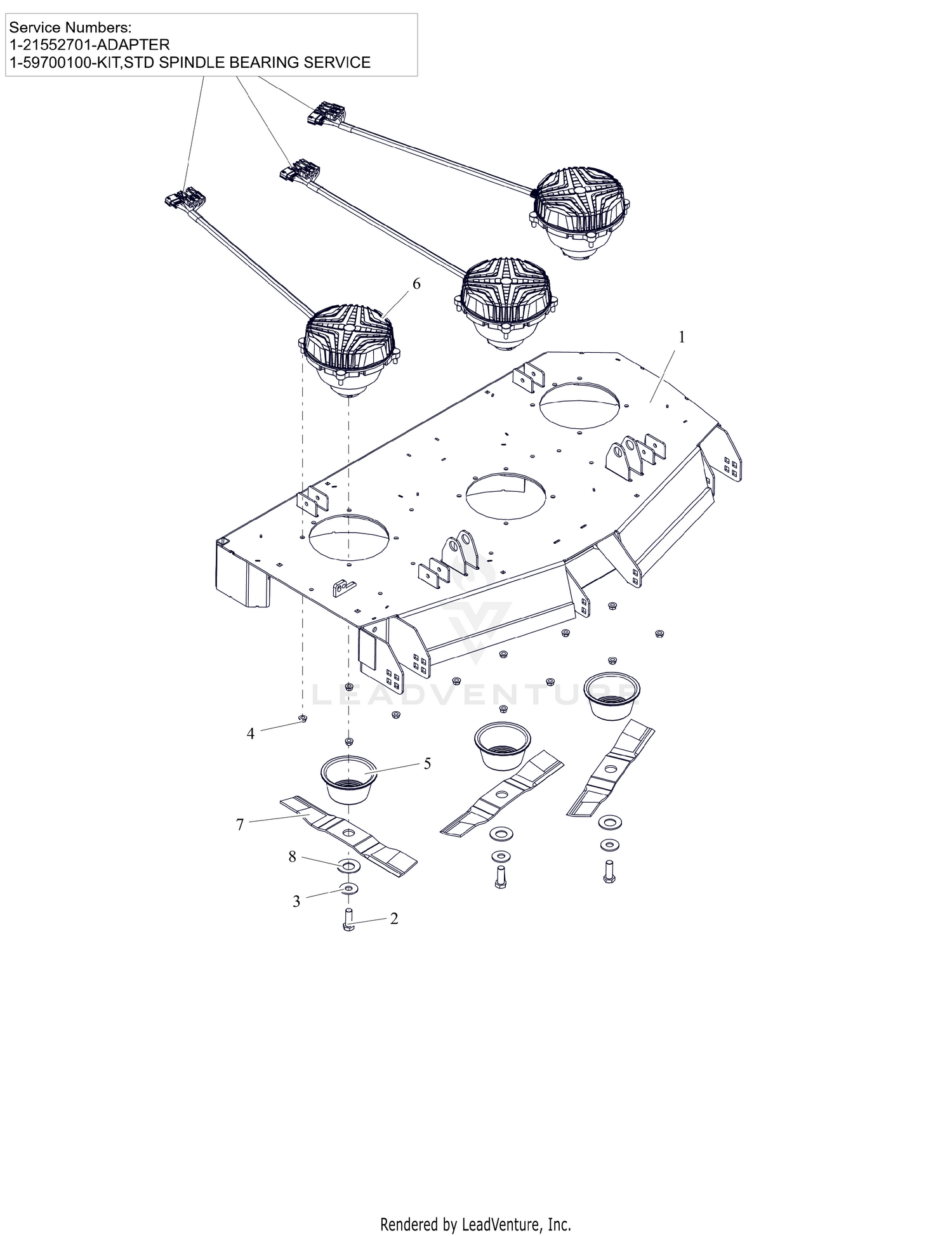

Deck, Blades and Spindle Motors - 48" - SD
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 59701600 | KIT,DECK 48 SD W/DECALS-G Price: $1,039.95 |
| 2 | 05901822 | BLT, HEX .62-18X1.75 G8 ZCC Price: $3.45 |
| 3 | 06401218 | WSHR, HRDN 0.687X1.75X0.134 HRD Price: $7.45 |
| 4 | 06500901 | NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 5 | 09163400 | GUARD, SPINDLE LOWER Price: $10.95 |
| 6 | 30298000 | ASM- 48/52 CW SPINDLE MOTOR This part replaces 09475800. Price: $849.95 |
| 7 | 09440000 | BLADE, MOWER -16.190" EFF CW Price: $25.95 |
