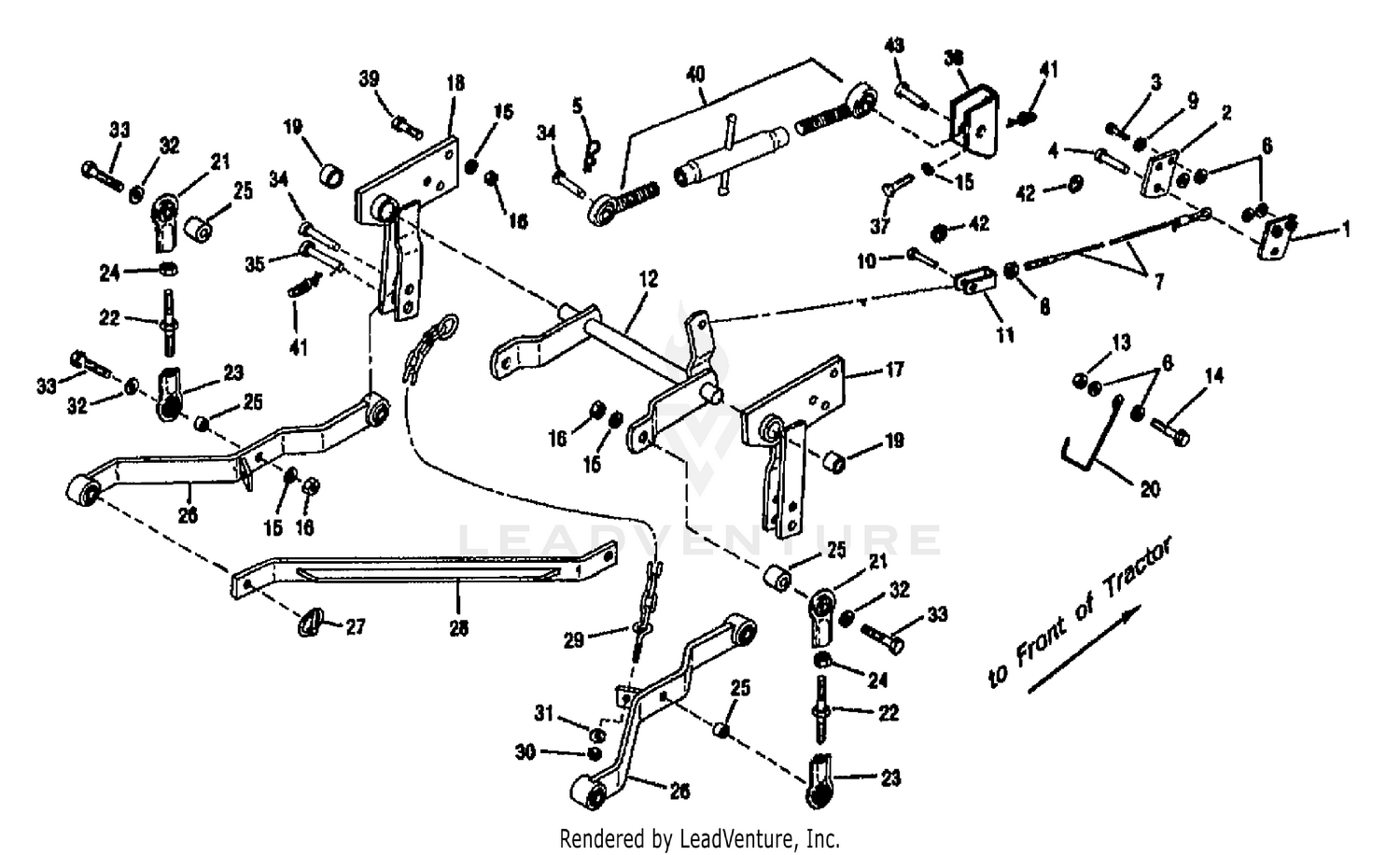

| Ref | Part Number | Description |
|---|
| 1 |
1751171001 |
ASSM-LIFT Not Available Price: |
| 2 |
1744937001 |
ARM-LIFT Not Available Price: |
| 3 |
710-0520 |
SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93 |
| 4 |
1724632 |
CLEVIS PIN Not Available Price: |
| 5 |
1723478 |
HITCH PIN Not Available Price: |
| 6 |
1708755 |
WASHER-.875X.39X.134 Not Available Price: |
| 7 |
1754316 |
CABLE-LIFT Price: Call Us |
| 8 |
1186259 |
HEX NUT/JA Not Available Price: |
| 9 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 10 |
1730851 |
CLEVIS PIN .5X1.25 Not Available Price: |
| 11 |
1734192 |
YOKE CABLE Not Available Price: |
| 12 |
1754315001 |
ASSM-PIVOT SHAFT Price: Call Us |
| 13 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 14 |
1186348 |
SCR-HFLK 3 Not Available Price: |
| 15 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 16 |
712-0206 |
HEX NUT This part replaces 1186233. Price: $3.90 |
| 17 |
1754312001 |
ASSM-HITCH RH Price: Call Us |
| 18 |
1754313001 |
ASSM-HITCH LH Price: Call Us |
| 19 |
1751150 |
BEARING Price: Call Us |
| 20 |
1731956 |
CABLE GUIDE Not Available Price: |
| 21 |
1725754 |
ROD-END Price: Call Us |
| 22 |
1751167 |
ASSM-STUD Price: Call Us |
| 23 |
1751168 |
ROD-END Price: Call Us |
| 24 |
712-3029 |
Nut, 1/2-20, Jam This part replaces 1186247. Price: $6.01 |
| 25 |
1747523 |
SPACER-.65 Not Available Price: |
| 26 |
1751165001 |
ASSM-LOWER Not Available Price: |
| 27 |
1719349 |
PIN-RETAIN Price: Call Us |
| 28 |
1751162001 |
ASSM-SWAG BAR Price: Call Us |
| 29 |
1725434 |
CHAIN Price: Call Us |
| 30 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 31 |
1803327 |
WASHER-.88 Not Available Price: |
| 32 |
1707397 |
WASHER-.685X.515X. Not Available Price: |
| 33 |
710-3104 |
Screw, Hex Cap, 1/2-13 X 2.25 Lg GR5 Not Available This part replaces 1100075. Price: |
| 34 |
711-1626 |
CLEVIS PIN .625 x 2.313 Not Available This part replaces 1752308. Price: |
| 35 |
1752687 |
PIN-CLEVIS .75X2.5 Price: Call Us |
| 37 |
710-3131 |
Hex Cap Screw, 1/2-13 x 1 (Grade 5) This part replaces 1100054. Price: $4.69 |
| 38 |
1754317001 |
BRACKET-HITCH Price: Call Us |
| 39 |
710-3032 |
Hex Cap Screw, 1/2-13 x 1.25 This part replaces 1100055. Price: $5.66 |
| 40 |
1751169 |
ASSM-UPPER LINK Price: Call Us |
| 41 |
714-3020 |
Pin-Internal Cotte This part replaces 1751909. Price: $3.90 |
| 42 |
1751908 |
RING COTTER Not Available Price: |
| 43 |
711-0299 |
Clevis Pin, .625 x 2.40 This part replaces 1746200. Price: $32.19 |
