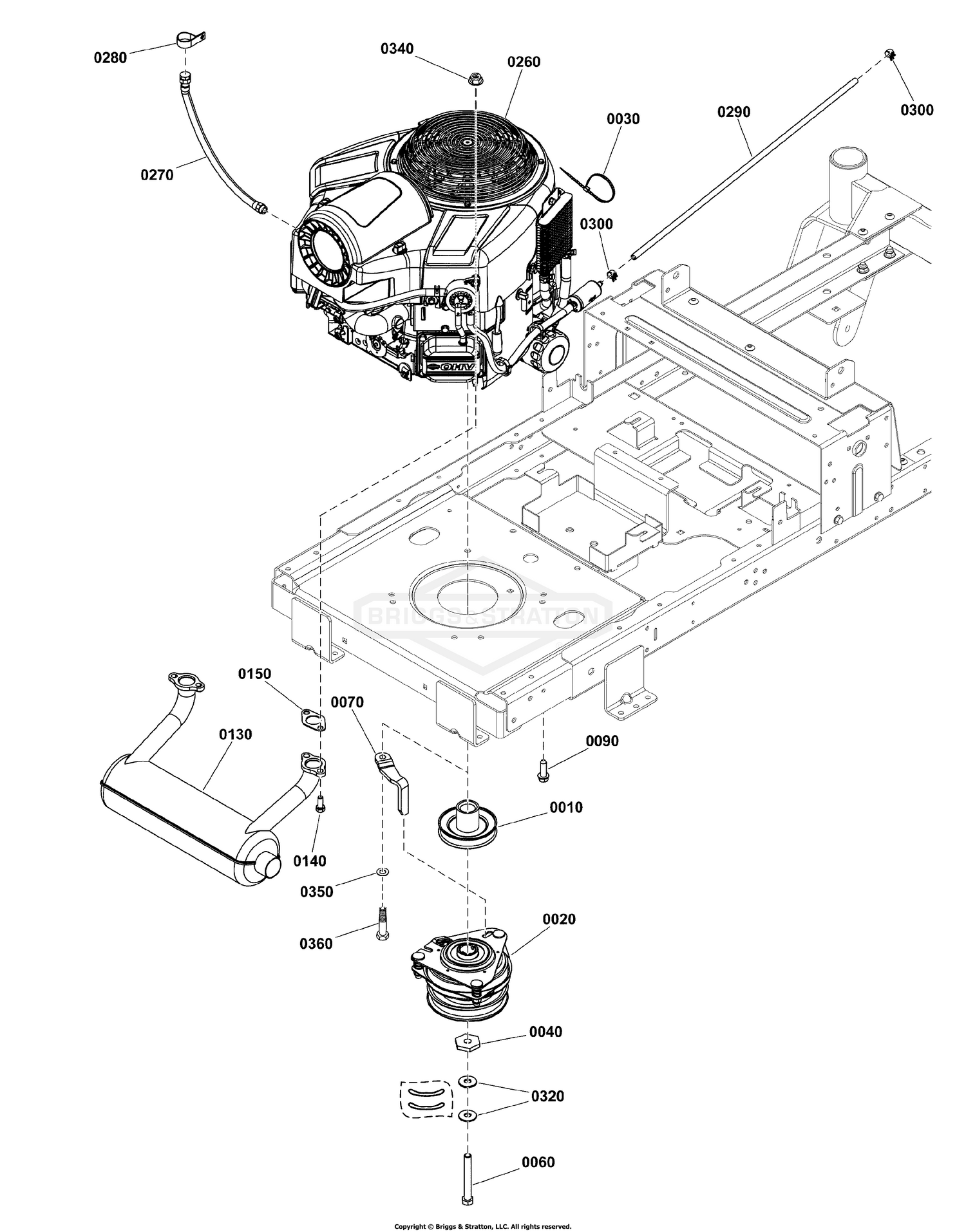

Engine and PTO Group - Briggs & Stratton 44T977

Engine and PTO Group - Briggs & Stratton 44T977

Parts (14)

RefPart NumberDescription
0010 1757995YP ASSEMBLY-PULLEY This part replaces 1757995. Price: $36.37
0020 1736105SM CLUTCH, ELECTRIC This part replaces 1736105. Price: $348.49
0040 1708264SM WASHER, HEX, 0.453ID This part replaces 1708264. Price: $7.67
0070 1737421AYP GUIDE, Belt This part replaces 1737421A. Price: $11.34
0130 84008807 MUFFLER ASSEMBLY Price: $94.29
0140 690341 SCREW This part replaces 94480. Price: $4.70
0150 690970 GASKET, Exhaust This part replaces 273485. Price: $4.13
0270 1726498SM HOSE-OIL DRAIN .375ID This part replaces 1726498. Price: $24.79
0280 5021500FS CLAMP This part replaces 5021500. Price: $3.94
0290 5050831X25SM HOSE 1/4 FUEL - 25 This part replaces 5050831X25. Price: $18.43
0300 691038 CLAMP, Hose This part replaces 93807. Price: $3.12
0320 5025585YP BELLEVILLE WASHER This part replaces 5025585. Price: $3.85
0340 703115 NUT This part replaces 5025392SM. Price: $3.06
0350 703350 WASHER This part replaces 5025155SM. Price: $3.72
