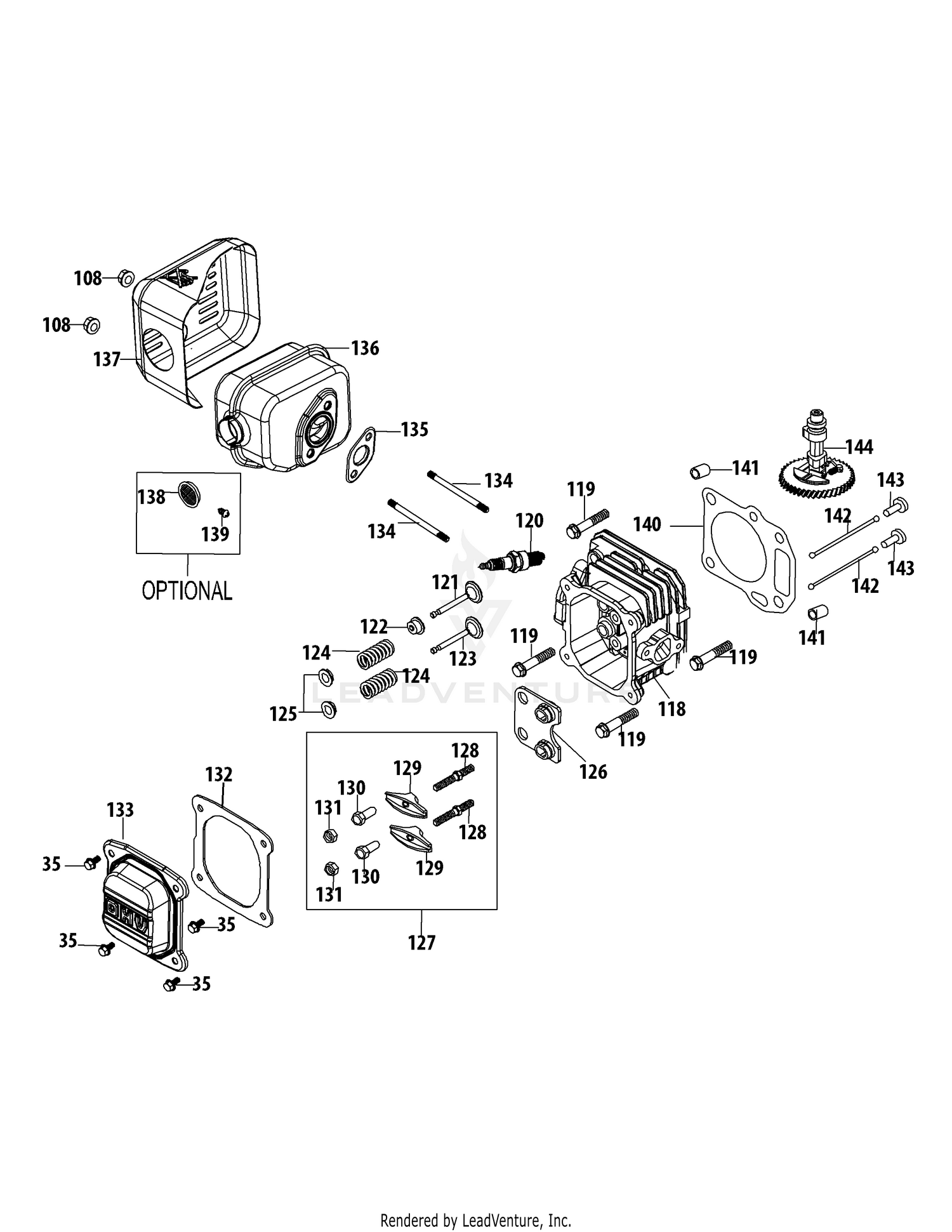

| Ref | Part Number | Description |
|---|
| 35 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 108 |
712-05015 |
HEX NUT Price: $5.78 |
| 118 |
951-05151 |
CYLINDER HEAD ASSEMBLY Price: $150.89 |
| 118 |
951-14639 |
CYLINDER HEAD This part replaces 751-14639. Price: $108.54 |
| 119 |
910-06185 |
BOLT-M8 x 54 This part replaces 710-06185. Price: $5.88 |
| 120 |
951-14437 |
SPARK PLUG Price: $7.34 |
| 121 |
951-14640A |
INTAKE VALVE This part replaces 951-14640. Price: $8.71 |
| 122 |
921-04237A |
INTAKE VALVE SEAL This part replaces 721-04237. Price: $7.20 |
| 123 |
951-14641 |
EXHAUST VALVE Price: $8.71 |
| 124 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 125 |
951-11977 |
Valve Spring Retainer This part replaces 708-04094. Price: $3.60 |
| 126 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 127 |
951-11606A |
ROCKER ARM This part replaces 951-11606. Price: $29.12 |
| 128 |
710-04902 |
PIVOT STUD Price: $5.94 |
| 129 |
951-12001 |
ROCKER ARM Price: $6.65 |
| 130 |
751-11123 |
VALVE ADJUST NUT Price: $9.09 |
| 131 |
751-11124 |
PIVOT LOCKING NUT Price: $8.18 |
| 132 |
951-11551 |
VALVE COVER GASKET Price: $9.14 |
| 133 |
951-14609A |
VALVE COVER This part replaces 951-14609. Price: $14.42 |
| 134 |
710-05094 |
STUD M6-1 x 95 Price: $3.78 |
| 135 |
951-14427A |
MUFFLER GASKET This part replaces 951-14427. Price: $6.38 |
| 136 |
951-10403 |
MUFFLER Price: $72.42 |
| 137 |
951-15072 |
MUFFLER SHIELD This part replaces 951-14430. Price: $22.38 |
| 138 |
951-10351A |
SPARK ARRESTOR This part replaces 951-10351. Price: $48.91 |
| 139 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
| 140 |
951-14431 |
CYLINDER HEAD GASKET Price: $14.44 |
| 141 |
715-04108 |
DOWEL PIN Price: $3.65 |
| 142 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 143 |
951-14432A |
TAPPET This part replaces 951-14432. Price: $7.49 |
| 144 |
951-11741 |
CAMSHAFT ASSEMBLY Price: $57.97 |
