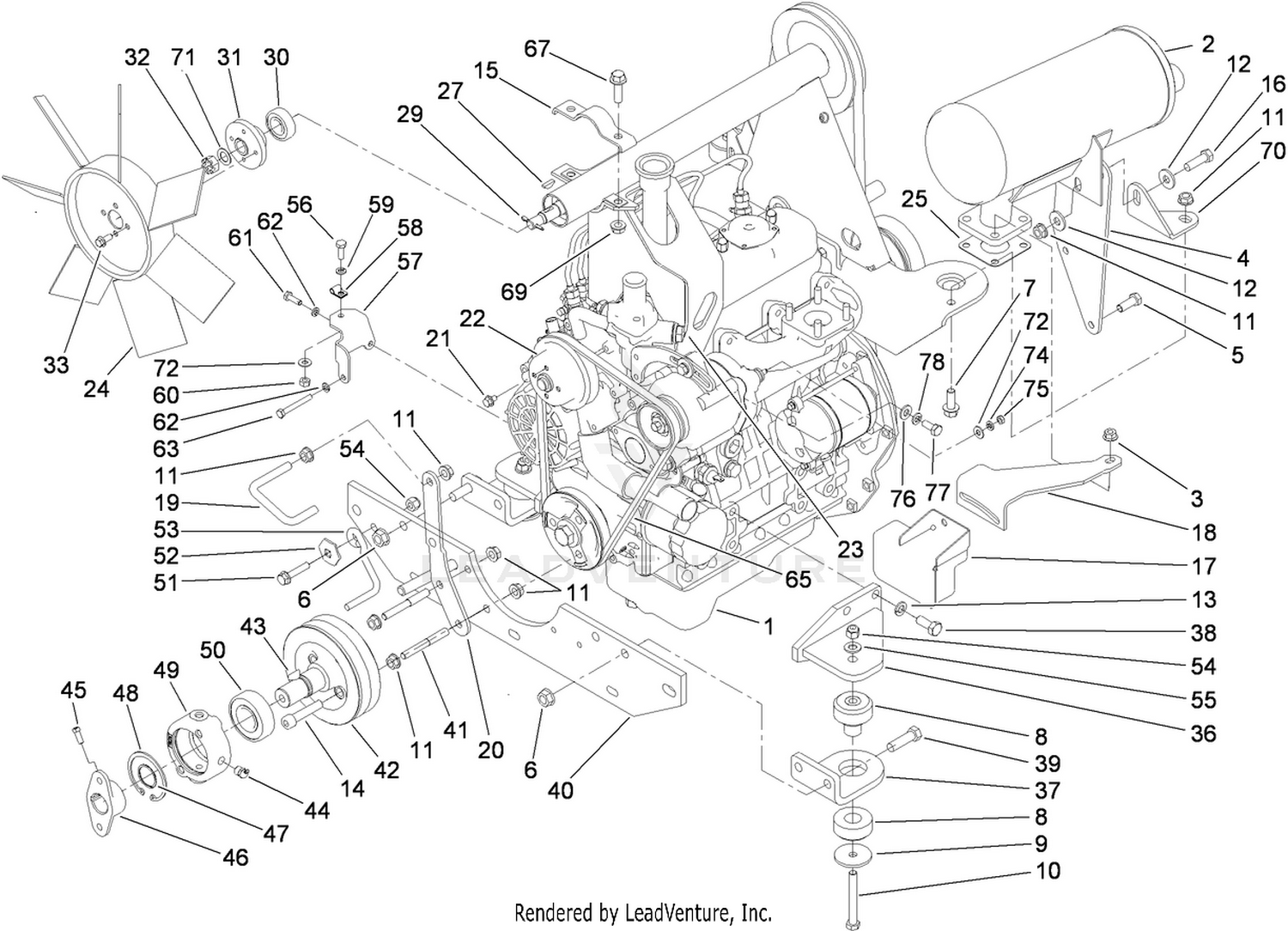

| Ref | Part Number | Description |
|---|
| 1 |
138-6906 |
ENGINE-KUBOTA, D1105 This part replaces 114-2890. Price: $7,960.18 |
| 2 |
106-8069 |
MUFFLER-EXHAUST Price: $620.16 |
| 3 |
33004-00 |
NUT-HF Price: $0.34 |
| 4 |
105-2523-03 |
BRACKET-MUFFLER Price: $34.40 |
| 5 |
33114-016 |
SCREW-HH Price: $0.27 |
| 6 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
115-4507 |
MOUNT-ENGINE Price: $24.68 |
| 9 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 10 |
323-14 |
SCREW-HH Price: $1.34 |
| 11 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 12 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 13 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 14 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 15 |
105-2519-03 |
CLAMP-CRADDLE Price: $58.64 |
| 16 |
323-44 |
SCREW-HH Price: $3.69 |
| 17 |
110-9679-03 |
GUARD-ALTERNATOR Price: $63.13 |
| 18 |
105-2556-03 |
BRACE-ALTERNATOR, UPPER Price: $60.30 |
| 19 |
105-4276 |
GUIDE-BELT, PTO Price: $18.17 |
| 20 |
105-0052-03 |
BRACKET-GUIDE, BELT Price: $21.03 |
| 21 |
81-1280 |
SCREW-HHF Price: $1.69 |
| 22 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 23 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 24 |
104-4246 |
FAN-ENGINE This part replaces 107-9096. Price: $154.04 |
| 25 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 27 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 29 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 30 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 31 |
104-3408-03 |
HUB-FAN Price: $165.47 |
| 32 |
32136-3 |
NUT-SHH Price: $1.22 |
| 33 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 36 |
104-3463-03 |
FRONT MOUNT ASM Price: $103.56 |
| 37 |
115-4508-03 |
BRACKET-ENGINE MOUNT, FRONT Price: $26.00 |
| 38 |
43-0090 |
SCREW-HH Price: $8.05 |
| 39 |
324-6 |
SCREW-HH Price: $0.81 |
| 40 |
115-4528-01 |
ENGINE SUPPORT ASM Price: $158.58 |
| 41 |
105-0057 |
STUD-RETAINER, BELT Price: $10.04 |
| 42 |
104-3406 |
PULLEY-ENGINE, MACHINING V This part replaces 104-3406-03. Price: $319.58 |
| 43 |
3257-33 |
KEY-WOODRUFF Price: $1.76 |
| 44 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 45 |
3241-5 |
SCREW-SET Price: $0.61 |
| 46 |
110-5236 |
HUB-ENGINE Price: $30.97 |
| 47 |
32120-69 |
RING-SNAP Price: $2.78 |
| 48 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 49 |
43-3720 |
COLLAR-BEARING Price: $249.41 |
| 50 |
251-252 |
BEARING Price: $98.35 |
| 51 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 52 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 53 |
63-1400 |
ROD-BELT Price: $17.83 |
| 54 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 55 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 56 |
321-4 |
SCREW-HH Price: $0.99 |
| 57 |
104-3421-03 |
BRACKET-THROTTLE Price: $42.29 |
| 58 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 60 |
3217-5 |
NUT-HEX Price: $0.25 |
| 61 |
33113-050 |
SCREW-HH Price: $0.62 |
| 62 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 63 |
33113-020 |
SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 65 |
98-9676 |
V-BELT Price: $31.01 |
| 67 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 69 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 70 |
115-4513-03 |
BRACKET-MUFFLER Price: $35.52 |
| 71 |
18-9810 |
WASHER-THRUST Price: $7.99 |
| 72 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 74 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 75 |
33013-00 |
NUT-HEX Price: $0.25 |
| 76 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 77 |
92-1374 |
SCREW-CAP,HH Price: $1.02 |
