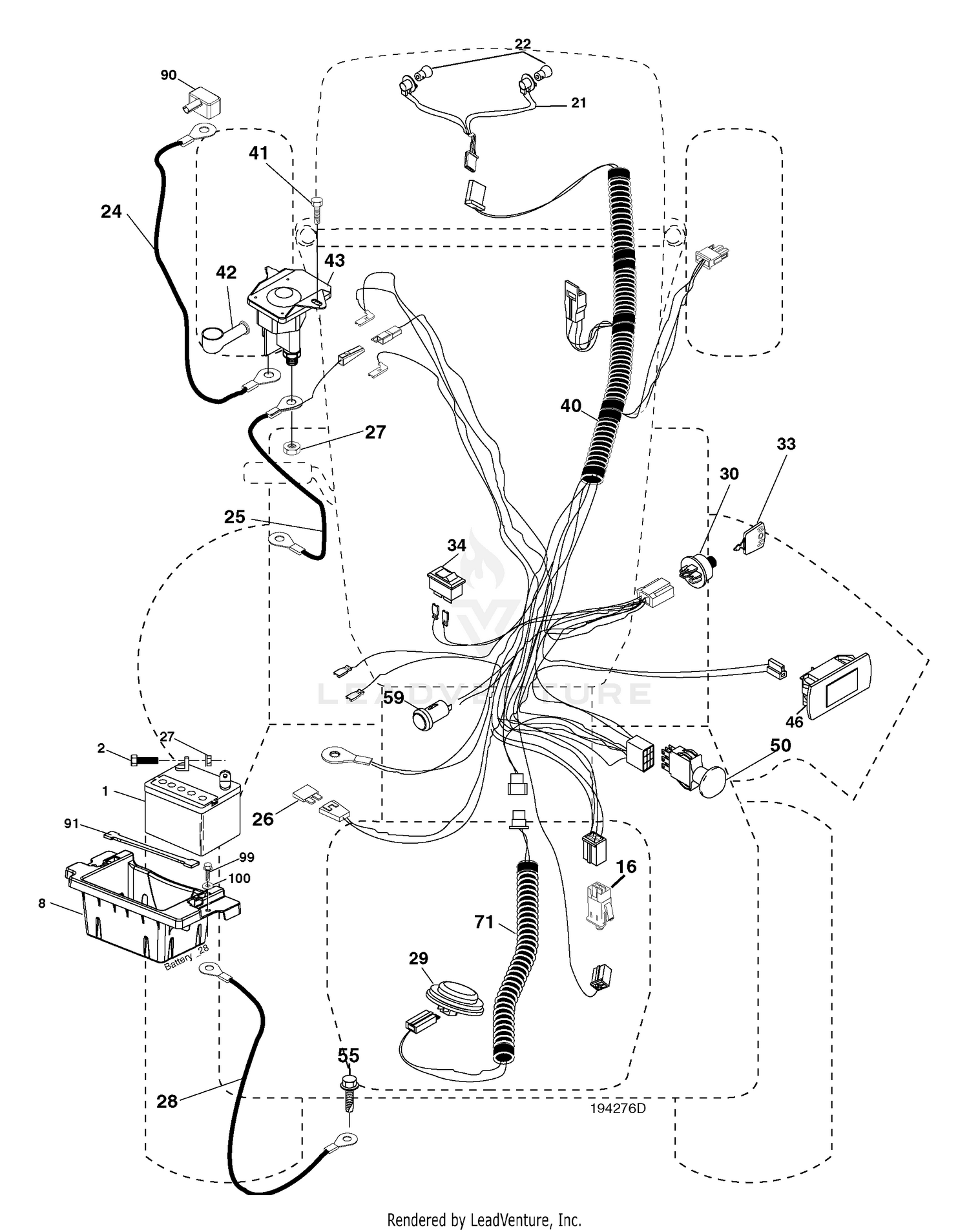

| Ref | Part Number | Description |
|---|
| 1 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
63-6430-03 |
FRAME-REAR This part replaces 63-6430. Price: $757.78 |
| 4 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 5 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 6 |
325-5 |
SCREW-HH Price: $1.20 |
| 7 |
63-6770-03 |
PIN-MASKED This part replaces 63-6770. Price: $145.71 |
| 8 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
67-1750 |
BUSHING Price: $0.92 |
| 10 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 12 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 14 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
93-3195 |
DISCONTINUED Price: Call Us |
| 18 |
231-105 |
TIRE-RIBBED Price: $62.56 |
| 19 |
217-118 |
WHEEL Price: $247.15 |
| 20 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 21 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 24 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
253-129 |
SEAL Price: $21.73 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
100-6598 |
PIVOT-STEERING This part replaces 76-4810. Price: $314.27 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
21-0151 |
LH BALL JOINT ASM Price: $126.28 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 32 |
63-6880 |
TIE ROD-STEERING Price: $50.74 |
| 33 |
3220-5 |
NUT-JAM Price: $0.65 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
93-3196 |
DISCONTINUED Price: Call Us |
| 36 |
67-7300 |
SCREW-HH Price: $81.39 |
| 37 |
76-3000-03 |
REAR AXLE ASM This part replaces 76-3000. Price: $1,003.02 |
| 38 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 39 |
67-7250 |
SPACER-RING Price: $3.32 |
| 40 |
115-4525 |
CYLINDER ASM This part replaces 76-2070. Price: $1,342.36 |
| 40 |
584452601 |
HARNESS.IGN.DASH.HUQ/PRED KIT This part replaces 532401105. Price: $49.99 |
| 41 |
328-25 |
SCREW-HH Price: $4.07 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
3220-3 |
NUT-HJ Price: $0.28 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 44 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 45 |
237-78 |
O-RING Price: $3.85 |
| 46 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 47 |
237-21 |
O-RING Price: $0.70 |
| 48 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 49 |
32128-45 |
NUT-HHF Price: $7.67 |
| 50 |
302-62 |
FITTING-GREASE Price: $1.34 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 51 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 52 |
67-9410 |
WASHER Price: $2.04 |
| 53 |
32121-77 |
PIN-ROLL Price: $1.29 |
| 54 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 55 |
76-2970 |
BUSHING-STRAIGHT Price: $9.02 |
| 56 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
