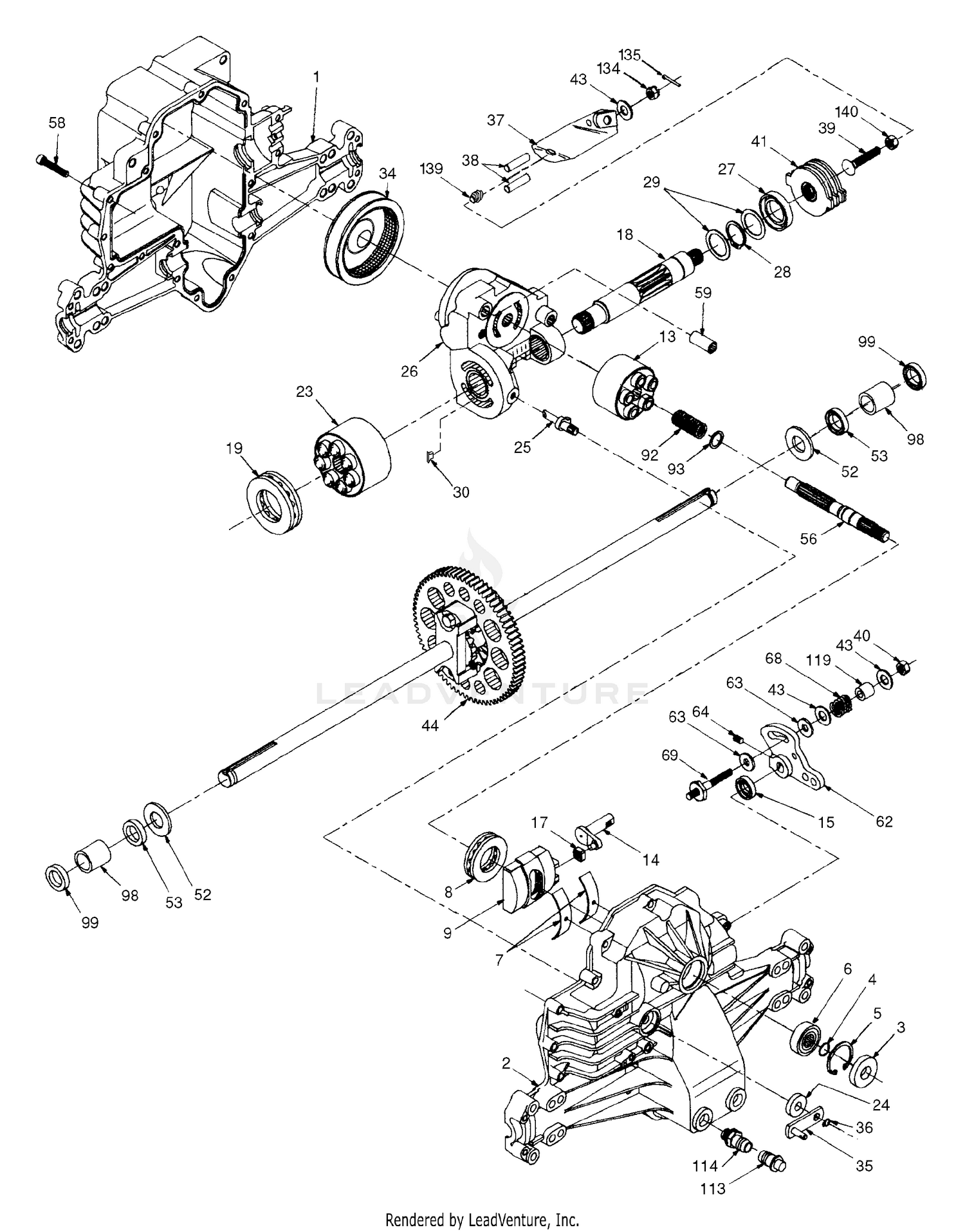

| Ref | Part Number | Description |
|---|
| 1 |
142986 |
Housing, Lower Price: Call Us |
| 1 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 2 |
142987 |
Assembly, Upper Housing Price: Call Us |
| 2 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 3 |
142932 |
Seal, Lip Price: Call Us |
| 3 |
282-4 |
SHACKLE Price: $32.98 |
| 4 |
142928 |
Ring, Wire Retaining Price: Call Us |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 5 |
142933 |
Ring, Retaining Price: Call Us |
| 5 |
32151-48 |
E-RING Price: $1.41 |
| 6 |
142934 |
Bearing, Shaft Ball Price: Call Us |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
142935 |
Bearing, Cradle Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
150771 |
Bearing, Thrust 30 x 52 x 13 Price: Call Us |
| 8 |
98-4548-03 |
BRACKET-SPRING, RH This part replaces 98-4548. Price: $42.16 |
| 9 |
142937 |
Swashplate, Variable Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 11 |
75-6070 |
HOSE Price: $35.77 |
| 12 |
237-78 |
O-RING Price: $3.85 |
| 13 |
142938 |
Block, Cylinder Assembly Price: Call Us |
| 13 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 14 |
142939 |
Arm, Trunnion Price: Call Us |
| 14 |
237-21 |
O-RING Price: $0.70 |
| 15 |
142940 |
Seal, Lip Price: Call Us |
| 15 |
75-3810-01 |
BRACKET-ROLLER ASM This part replaces 75-3810. Price: $64.51 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
142941 |
Guide, Slot Price: Call Us |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 18 |
150772 |
Shaft, Motor Price: Call Us |
| 18 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 19 |
150773 |
Bearing, Thrust 42 x 68 x 16 Price: Call Us |
| 19 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 20 |
75-5390 |
ROLLER Price: $56.69 |
| 21 |
75-6180 |
HOSE Price: $72.14 |
| 22 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 23 |
142944 |
Block, Cylinder Assembly Price: Call Us |
| 23 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 24 |
142945 |
Seal, Lip 10 x 25 x 7 Price: Call Us |
| 24 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 25 |
142946 |
Actuator, Bypass Price: Call Us |
| 25 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 26 |
150774 |
Center Section Assembly Kit Price: Call Us |
| 26 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 27 |
142948 |
Seal, Lip 26 x 42 x 8 Price: Call Us |
| 27 |
67-1750 |
BUSHING Price: $0.92 |
| 28 |
142949 |
Ring, Retaining Price: Call Us |
| 28 |
94-5596 |
ARM-LIFT, RH REAR Price: $649.36 |
| 29 |
142950 |
Washer 26 x 35 x 1 Price: Call Us |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 30 |
150787 |
Nut, Jam Price: Call Us |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 32 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 33 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 34 |
142951 |
Oil Filter Element Price: Call Us |
| 34 |
75-4590-03 |
ROD-PIVOT ASM This part replaces 75-4590. Price: $64.42 |
| 35 |
142952 |
Arm, Bypass Price: Call Us |
| 35 |
325-4 |
SCREW-HH Price: $0.95 |
| 36 |
142953 |
Ring, Retaining Price: Call Us |
| 36 |
93-0142 |
BUSHING-STRAIGHT Price: $3.21 |
| 37 |
142954 |
Arm, Actuating Price: Call Us |
| 37 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 38 |
142955 |
Pin, Actuating Price: Call Us |
| 38 |
256-287 |
BUSHING Price: $1.76 |
| 39 |
150777 |
Bolt 5/16-24 x 1-3/4 Price: Call Us |
| 39 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
150778 |
Locknut, Hex 5/16-24 UNJC Price: Call Us |
| 40 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 41 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 41 |
142958 |
Brake Rotor/Stator Kit Price: Call Us |
| 42 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 43 |
142884 |
Washer 7/16 x 7/8 x .060 Price: Call Us |
| 43 |
92-9097 |
SCREW-HS Price: $1.56 |
| 44 |
142990 |
Differential Assembly Price: Call Us |
| 44 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 45 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 46 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 47 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 48 |
108-4432 |
CYLINDER-HYD, LIFT This part replaces 93-9311. Price: $730.09 |
| 49 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 50 |
322-13 |
SCREW-HH Price: $2.73 |
| 51 |
94-4919-03 |
BRACKET-CLAMP, HOSE This part replaces 94-4919. Price: $19.76 |
| 52 |
142991 |
Washer 3/4 x 1.5 x .13 Price: Call Us |
| 52 |
93-0069-03 |
PIN-REAR This part replaces 93-0069. Price: $424.34 |
| 53 |
142961 |
Seal .75 x 1.25 x .250 Price: Call Us |
| 54 |
323-6 |
SCREW-HH Price: $0.66 |
| 56 |
142963 |
Shaft, Input Price: Call Us |
| 56 |
93-3640 |
STOP-RH Price: $12.61 |
| 57 |
82-8170 |
CLAMP Price: $17.27 |
| 58 |
142964 |
Bolt 1/4-20 x 1.38 Price: Call Us |
| 58 |
93-7960 |
SPACER Price: $5.67 |
| 59 |
142965 |
Pin .5 OD x .43 ID x .750 Price: Call Us |
| 59 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 61 |
94-5594 |
ARM-LIFT, LH REAR Price: $670.46 |
| 62 |
142966 |
Arm, Control Price: Call Us |
| 62 |
32121-27 |
PIN-ROLL Price: $1.56 |
| 63 |
142967 |
Puck, Dampener Price: Call Us |
| 64 |
142920 |
Set Screw Price: Call Us |
| 68 |
142969 |
Spring Price: Call Us |
| 69 |
144610 |
Stud 5/16-24 Price: Call Us |
| 92 |
142977 |
Spring, Block Price: Call Us |
| 93 |
142978 |
Washer, Block Thrust Price: Call Us |
| 98 |
142993 |
Sleeve Bearing Price: Call Us |
| 99 |
142976 |
Seal, Wiper Price: Call Us |
| 113 |
142917 |
Cap, Vent Assembly Price: Call Us |
| 114 |
142918 |
Fitting, O-Ring Assembly Price: Call Us |
| 119 |
142980 |
Spacer Price: Call Us |
| 134 |
144607 |
Nut, Castle 5/16-24 Price: Call Us |
| 135 |
144608 |
Pin, Cotter Price: Call Us |
| 139 |
150775 |
Spring, Compression Price: Call Us |
