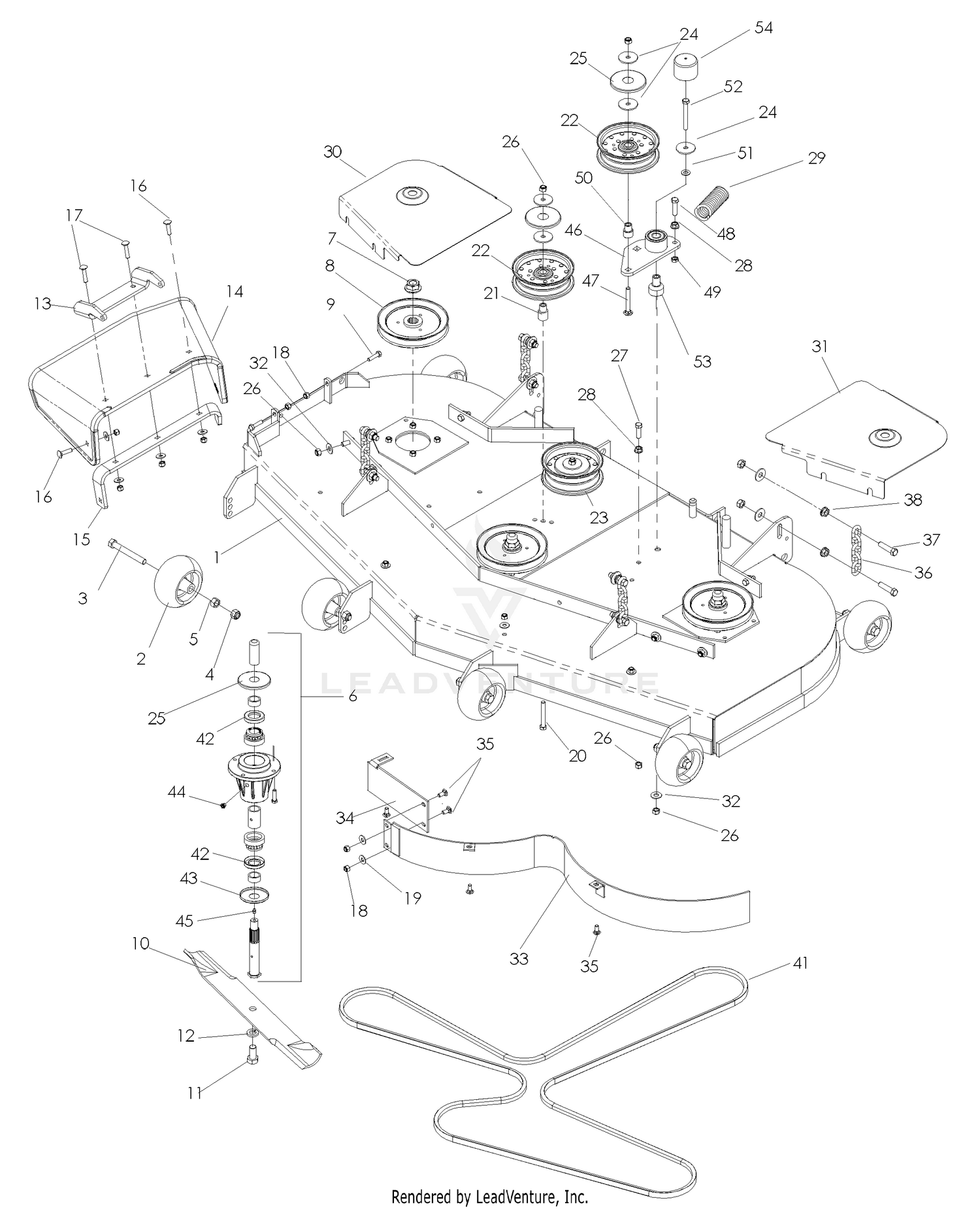

| Ref | Part Number | Description |
|---|
| 1 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 1 |
510063302 |
DECK SVC W/DECALS 61" HUS Price: $5,199.99 |
| 2 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 2 |
532133957 |
WHEEL GAGE DONUT This part replaces 539107610. Price: $11.99 |
| 3 |
3217-29 |
NUT-HEX Price: $0.25 |
| 3 |
539108366 |
HCS 1/2-13 X 4 GR 5 ZD Price: $5.99 |
| 4 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 4 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 5 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 5 |
539990258 |
NUT HEX 1/2 Price: $3.99 |
| 6 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 6 |
966956101 |
KIT HSG ASM 52/61 This part replaces 539131383. Price: $129.99 |
| 7 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 7 |
598490501 |
Nuts This part replaces 539130653. Price: $7.99 |
| 8 |
322-17 |
SCREW-HH Price: $2.62 |
| 8 |
539112125 |
PULLEY, 61 Price: $29.99 |
| 9 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 9 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 10 |
321-6 |
SCREW-HH Price: $0.25 |
| 10 |
539101733 |
BLADE OEM 21" (61" DECK) Price: $18.99 |
| 11 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 11 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 12 |
104-3938-03 |
TRACTION PEDAL ASM This part replaces 83-8270. Price: $83.32 |
| 12 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 13 |
539130917 |
PIVOT BRACKET - CHUTE Price: $129.99 |
| 13 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 14 |
539130901 |
CHUTE, RUBBER DISCHARGE 52/61" Price: $79.99 |
| 14 |
61-2610 |
TRACTION ARM Price: $34.35 |
| 15 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 15 |
592964402 |
BRACKET.REINF.CHUTE.52/61.EDIP This part replaces 539130920. Price: $22.99 |
| 16 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 16 |
61-2370 |
SPACER Price: $13.84 |
| 17 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 17 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 18 |
322-9 |
SCREW-HH Price: $3.09 |
| 18 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 19 |
3220-2 |
NUT-JAM Price: $0.50 |
| 19 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 20 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 20 |
83-8760 |
DISCONTINUED Price: Call Us |
| 21 |
3220-20 |
NUT-JAM Price: $0.92 |
| 21 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 22 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 22 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 23 |
83-8770 |
PUMP LEVER WA Price: $261.34 |
| 24 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 24 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 25 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 25 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 26 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 26 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 27 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 27 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 28 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 28 |
94-1754 |
SWITCH & ROLLER BRACKET ASM Price: $246.41 |
| 29 |
539105192 |
DECK SPRING Price: $13.99 |
| 30 |
3210-7 |
SCREW-HH Price: $0.61 |
| 30 |
539108611 |
BELT SHIELD 61" RIGHT Price: $27.99 |
| 31 |
251-259 |
BEARING-BALL Price: $13.67 |
| 32 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 33 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 33 |
539105465 |
MAIN BAFFLE - 61" BLK Price: $159.99 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
539105461 |
CENTER BAFFLE - 61 Price: $79.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 35 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 36 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 36 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 37 |
596438501 |
Bolts This part replaces 539108073. Price: $2.99 |
| 38 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 38 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 39 |
596437601 |
Washers This part replaces 539104864. Price: $2.99 |
| 39 |
94-1755 |
DISCONTINUED Price: Call Us |
| 40 |
595901901 |
Nuts This part replaces 539119124. Price: $2.99 |
| 41 |
510201301 |
BELT, DECK 61 This part replaces 539104336. Price: $119.99 |
| 42 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 43 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 44 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 45 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 46 |
539130391 |
ARM-IDLER W/BRG Price: $37.99 |
| 47 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 48 |
539107042 |
HCS 3/8-16 X 1-1/2 Price: $2.99 |
| 49 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 50 |
539130242 |
BUSHING, IDLER Price: $2.99 |
| 51 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 52 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 53 |
539130205 |
PIVOT, BEARING Price: $3.99 |
