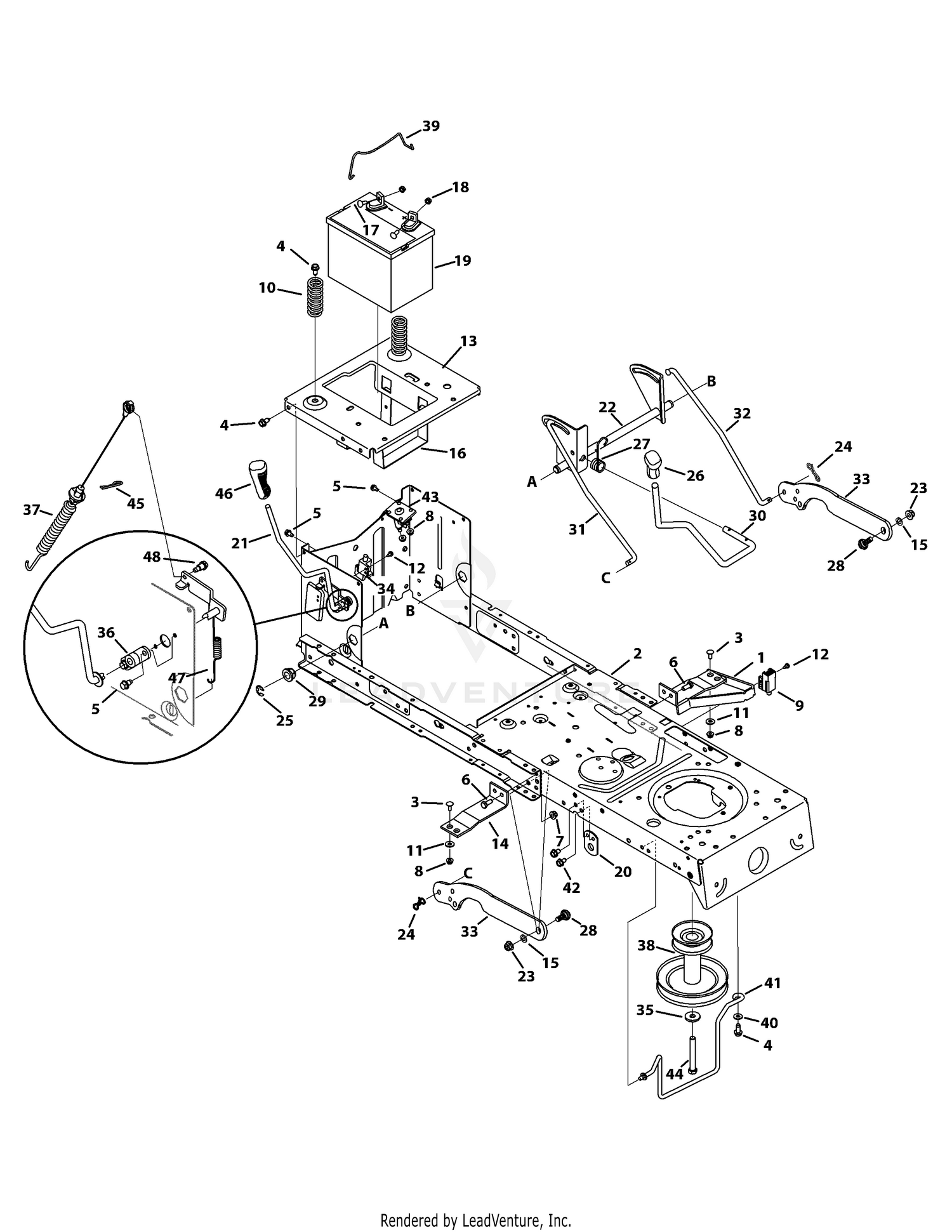

| Ref | Part Number | Description |
|---|
| 1 |
683-04195-0637 |
Support Bracket Price: $37.53 |
| 2 |
683-05139A-0637 |
FRAME ASSEMBLY (POWDER BLACK) This part replaces 683-05139-0637. Price: $182.74 |
| 3 |
710-0703 |
Screw Carriage, 1/4-20 x .75 Price: $3.66 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0599 |
Screw, 1/4-20 x .500 Price: $3.86 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 8 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 9 |
925-04039 |
Screw Mount Interlock Switch Price: $22.73 |
| 10 |
732-0735A |
Compression Spacer, 1.314 x 2.55 Price: $27.35 |
| 11 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 12 |
738-04237A |
Shoulder Spacer, 10-32 x .500 Price: $5.30 |
| 13 |
783-04548D-0637 |
Seat Frame Bracket Price: $51.45 |
| 14 |
783-04637-0637 |
Running Board Bracket Price: $14.46 |
| 15 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 16 |
783-04869A-0637 |
Battery Bracket Price: $7.91 |
| 17 |
710-04666 |
Hex Head Flange, 1/4-20 x .75 Price: $6.04 |
| 18 |
712-0271 |
Sems Nut, 1/4-20 Price: $3.78 |
| 19 |
925-1707D |
BATTERY Not Available Price: |
| 20 |
783-04536B-0637 |
Support Bracket Price: $5.67 |
| 21 |
647-05041-0637 |
PTO Handle Assembly Price: $10.38 |
| 22 |
683-04334-0637 |
Lift Assembly Price: $47.85 |
| 23 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 24 |
714-04040 |
Bow-tie Cotter Pin Price: $1.28 |
| 25 |
716-0106A |
E Ring Price: $4.42 |
| 26 |
720-0298 |
Handle Grip, 5/8 Price: $37.92 |
| 27 |
732-04438 |
Torsion Spring Price: $9.09 |
| 28 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 29 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 30 |
747-04653A |
Deck Lift Handle Price: $40.06 |
| 31 |
747-06237A |
Lift Rod, RH Price: $9.29 |
| 32 |
747-06253 |
Lift Rod, LH Price: $9.29 |
| 33 |
783-0678C-0637 |
Lift Arm Price: $26.11 |
| 34 |
725-04363 |
Switch Interlock Price: $13.25 |
| 35 |
736-0322 |
Flat Washer, .450 x 1.250 x .164 Price: $8.42 |
| 36 |
741-04119A |
PTO Bearing Price: $4.56 |
| 37 |
946-05124A |
Deck Engage Cable Price: $21.49 |
| 38 |
756-04196A |
Engine Pulley, 3.39 x 6.12 Price: $79.88 |
| 39 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 40 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 42 |
710-0604A |
Screw, 5/16-18.0 x .625 Price: $3.96 |
| 44 |
710-3157A |
Hex Screw, 7/16-20 x 3.25 Price: $9.67 |
| 45 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 46 |
720-04049A |
Handle Grip, 3/8 Price: $14.09 |
| 47 |
732-04276A |
PTO Spring Extension Price: $8.55 |
