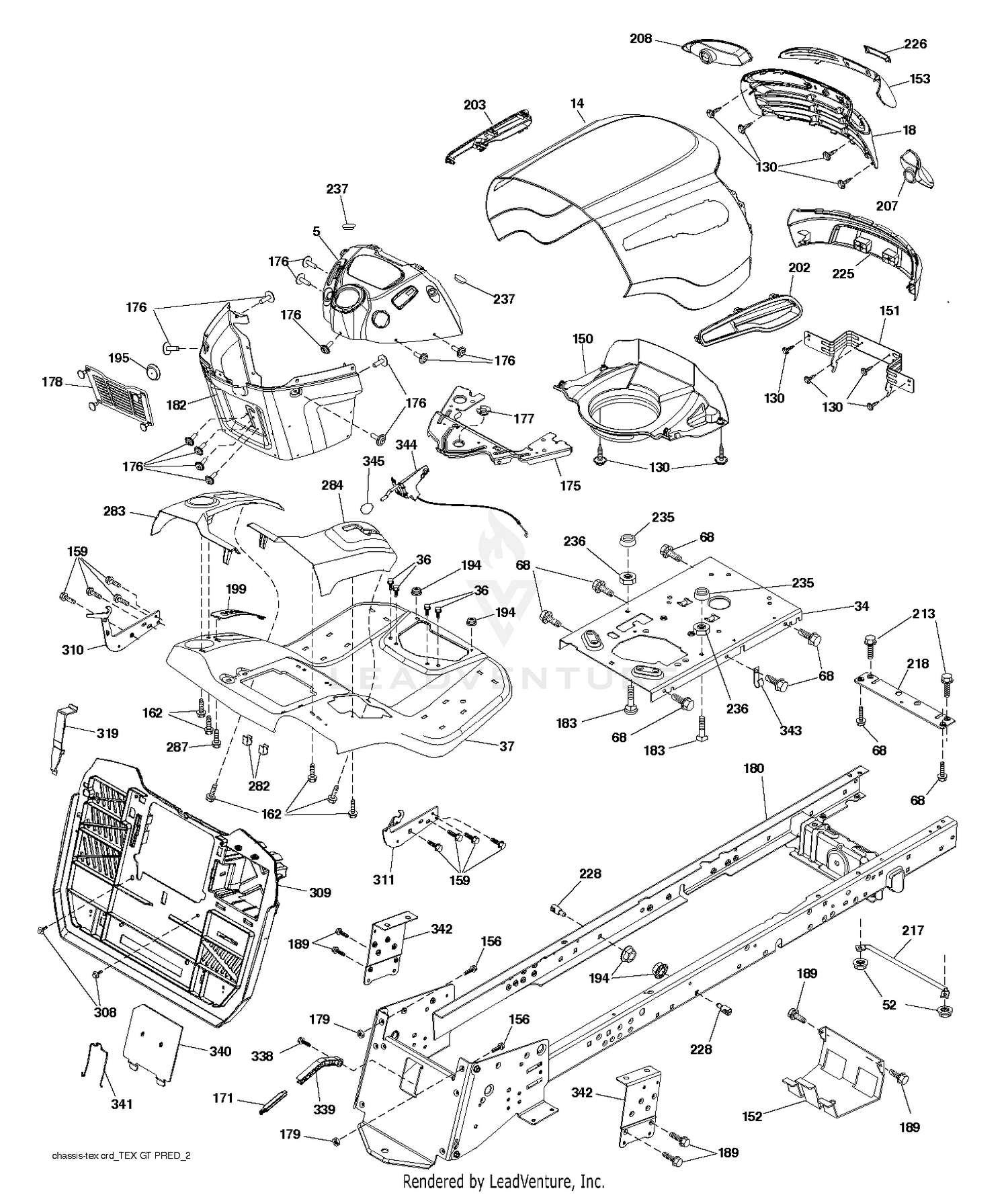

CHASSIS ENCLOSURES
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 532446639 | Price: $43.99 |
| 10 | 105-3735 | CONTROL PLATE ASM Price: $167.82 |
| 14 | 532443824 | Price: $64.99 |
| 18 | 532427333 | Price: $33.99 |
| 20 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 30 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 34 | 532447253 | Price: $15.99 |
| 36 | 532171877 | Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 37 | 532442231 | Price: $118.99 |
| 40 | 105-3788 | O-RING Price: $2.90 |
| 50 | 98-7602 | PIN-SPRING Price: $0.64 |
| 52 | 873800500 | Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 60 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 68 | 817490508 | Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 70 | 98-9589 | NUT Price: $1.46 |
| 80 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 90 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 532416358 | SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 532199411 | Price: $20.99 |
| 150 | 99-8348 | BOLT Price: $0.24 |
| 151 | 532445494 | Price: $17.99 |
| 152 | 532199535 | SHIELD BROWNING Price: $11.99 |
| 153 | 532424717 | Price: $11.99 |
| 156 | 872140614 | BOLT Price: $2.99 |
| 159 | 817000612 | SCREW, 3/8-16X3/4 Price: $2.99 |
| 160 | 98-7654 | GASKET Price: $8.84 |
| 162 | 532142432 | SCREW.HI-LO.CONSOLE Price: $3.99 |
| 170 | 105-3710 | STUD Price: $1.16 |
| 171 | 532441289 | Price: $2.16 |
| 175 | 532196304 | PLATE.CROSSMEMBER.HUSQ Price: $22.99 |
| 176 | 532400776 | SCREW.#10-24X5/8.RN.QU Price: $6.99 |
| 177 | 532195227 | BUSHING,STEERING Price: $3.69 |
| 178 | 532199782 | CARGO.ASM.NET.TXGT.W/C Price: $19.99 |
| 179 | 532168937 | NUT Price: $2.99 |
| 180 | 532435472 | Price: Call Us |
| 180 | 98-7572 | NUT Price: $0.32 |
| 182 | 532438967 | Price: $25.99 |
| 183 | 874520520 | BOLT.5/16-18X1-1/4 FULL THD Price: $2.99 |
| 189 | 532428867 | BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 194 | 873900500 | NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 195 | 532404137 | PLUG.HOLE.DASH.LOWER.12V.BLK Price: $2.99 |
| 199 | 532418739 | Price: $2.99 |
| 202 | 532445426 | Price: $11.54 |
| 203 | 532445583 | Price: $5.99 |
| 207 | 532198963 | Price: $17.99 |
| 208 | 532198964 | Price: $13.99 |
| 213 | 539976934 | HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 217 | 532409167 | ROD.PIVOT.HOOD Price: $8.99 |
| 218 | 532196395 | X-PIECE.HOOD.STOP.NON/ Price: $2.99 |
| 225 | 532443825 | Price: $26.99 |
| 226 | 532424716 | Price: $4.99 |
| 228 | 532195161 | STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 235 | 532406129 | SPACER FENDER Price: $2.99 |
| 236 | 873930500 | NUT.CENTERLOCK.5/16- Price: $3.99 |
| 237 | 532403704 | PLUG.MOUNT.CARGO.BLK Price: $2.99 |
| 282 | 532414110 | CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 | 532440361 | Price: $40.99 |
| 284 | 532440360 | Price: $34.99 |
| 287 | 817600406 | SCREW Price: $2.99 |
| 308 | 532171877 | BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 309 | 532436626 | Price: Call Us |
| 310 | 532446636 | Price: $27.99 |
| 311 | 532446637 | Price: $27.99 |
| 319 | 532174662 | Bracket Actuator Bagger CRD Price: $2.99 |
| 338 | 532436640 | Price: $1.99 |
| 339 | 532441288 | Price: $2.21 |
| 340 | 532440931 | Price: $7.99 |
| 341 | 532436638 | Price: $3.99 |
| 342 | 532435938 | Price: $3.99 |
| 343 | 532440749 | Price: $1.99 |
| 344 | 532438970 | Price: $48.99 |
