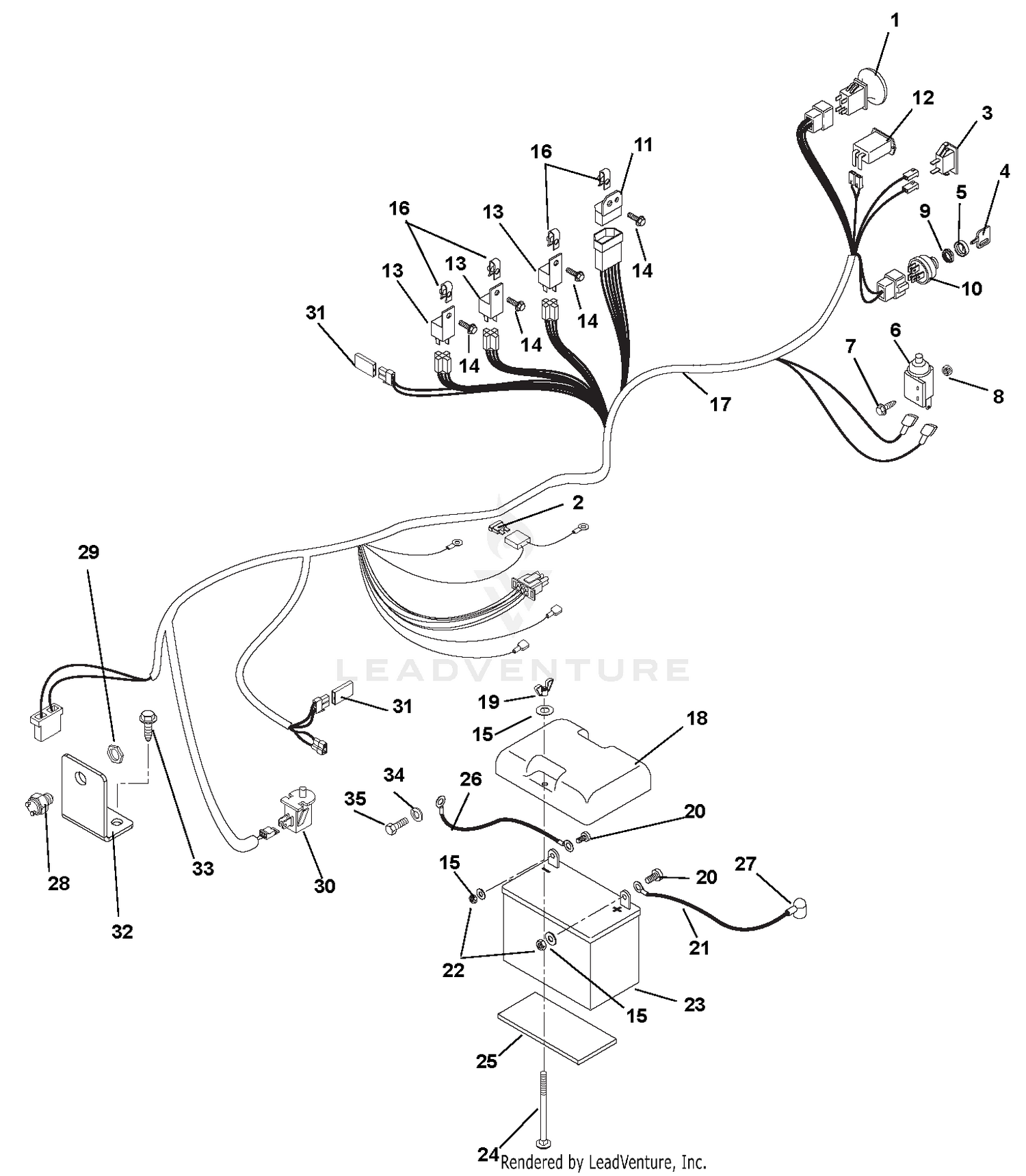

| Ref | Part Number | Description |
|---|
| 1 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 2 |
00524600 |
FUSE- 30 AMP- ATO Price: $2.45 |
| 3 |
05128700 |
LIGHT, INDICATOR (RED) This part replaces 08841200. Price: $6.95 |
| 4 |
09284600 |
KEY W/ SHIELD Price: $16.45 |
| 5 |
07517700 |
CAP - IGNITION SWITCH Price: $3.45 |
| 6 |
09251900 |
SWITCH-SINGLE POLE N.O.W/COVER Price: $20.45 |
| 7 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 8 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 9 |
06517400 |
NUT- PANEL .562-24 GRECO Price: $18.95 |
| 10 |
03602300 |
KEY SWITCH Price: $23.45 |
| 11 |
09044200 |
MODULE,INTERLOCK,DELAY, 1801 Price: $64.45 |
| 12 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 13 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 00432100. Price: $19.95 |
| 14 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 15 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 16 |
07027700 |
NUT-RTNR 10-24 Price: $2.95 |
| 17 |
03287400 |
HARNESS - WIRING Price: $203.45 |
| 18 |
04912900 |
COVER, BATTERY Price: $10.45 |
| 19 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 20 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 21 |
03287200 |
CABLE - START 22.00" Price: $16.45 |
| 22 |
06500812 |
NUT,LK-CTR .25-20 GA ZCC This part replaces 06529700. Price: $0.45 |
| 23 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 24 |
06200424 |
BTL,RHSN .250-20 X 7.5 G5 ZCC This part replaces 06226400. Price: $4.45 |
| 25 |
08803400 |
PAD,BATTERY Price: $6.45 |
| 26 |
03288200 |
CABLE-NEGATIVE BATTERY 35.00" Price: $20.45 |
| 27 |
00525800 |
BOOT, BATTERY TERMINAL-RED Price: $7.45 |
| 28 |
08803700 |
SWITCH, NEUTRAL START N.C. Price: $31.45 |
| 29 |
07015100 |
NUT-STAMPED .56-18 Price: $3.45 |
| 30 |
02754100 |
SWITCH- SNAP MTG N.O. Price: $8.45 |
| 31 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 33 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 34 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
