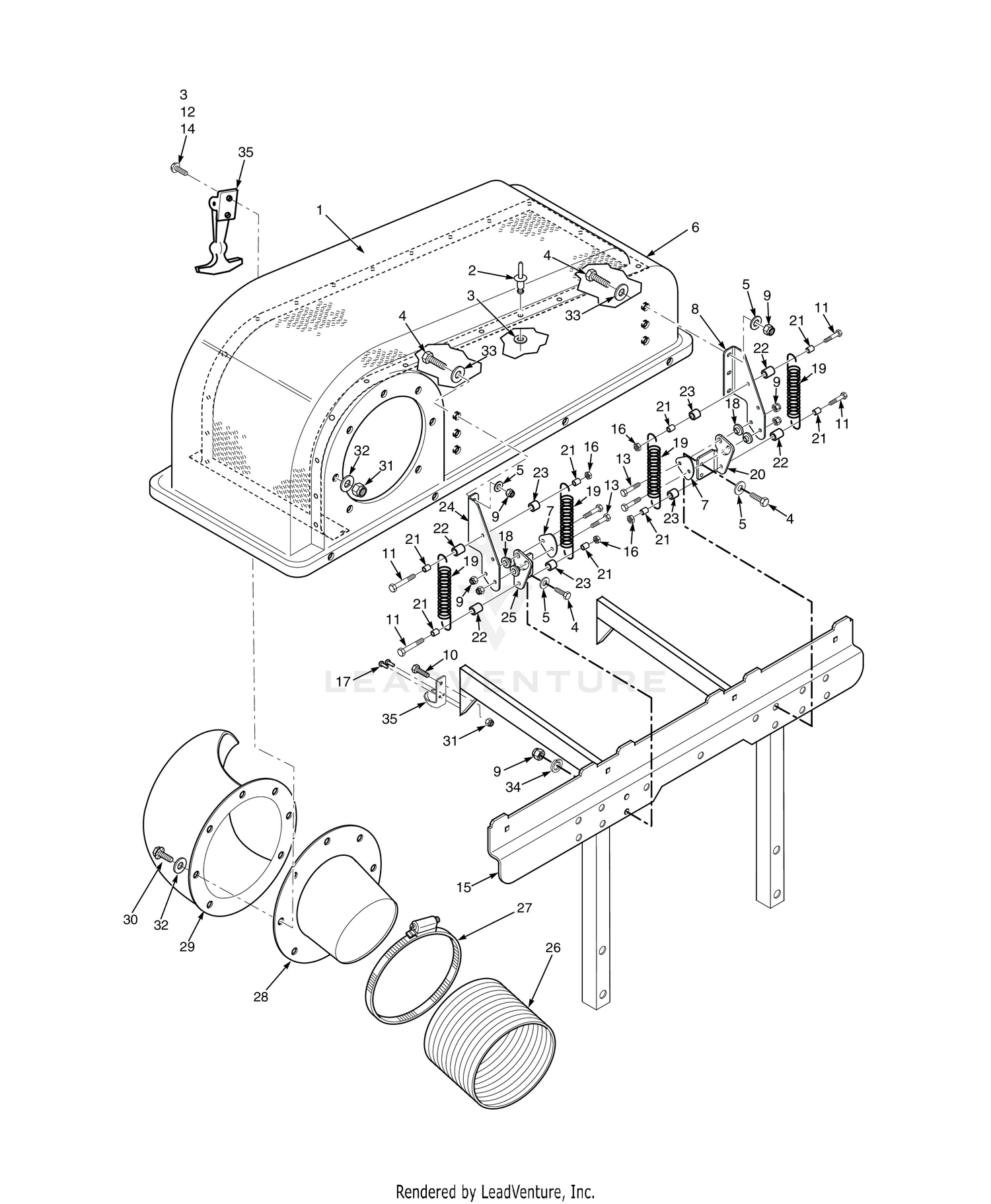

| Ref | Part Number | Description |
|---|
| 1 |
423302 |
Screen, Catcher Hood Price: Call Us |
| 2 |
04090-02 |
Pop Rivet, 3/16 x .652" Price: Call Us |
| 3 |
04041-19 |
Flatwasher, 3/16 (.196 x .469 x .048) Price: Call Us |
| 4 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 5 |
04041-01 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 7 |
425832 |
Guard, GC Hinge Price: Call Us |
| 8 |
425830 |
Hinge, Upper LH Price: Call Us |
| 9 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 10 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 11 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 12 |
04021-01 |
HEX NUT, ELASTIC STOP LOCK # 10-32 Price: Call Us |
| 13 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 14 |
04010-25 |
Screw, #10-32 x 3/4" Price: Call Us |
| 15 |
452385 |
Support Weldment, Bag Frame Price: Call Us |
| 16 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 17 |
04090-03 |
Rivot, 3/16 x .402 POP Price: Call Us |
| 18 |
43546 |
Bushing, Hopper Pivot Price: Call Us |
| 19 |
482304 |
Spring, Hood Hinge Price: Call Us |
| 20 |
426041 |
HINGE, LOWER LH Price: Call Us |
| 21 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 22 |
43886 |
Spacer Price: Call Us |
| 23 |
43277 |
SPACER, J-PULL ROD Price: Call Us |
| 24 |
425831 |
Hinge, Upper RH Price: Call Us |
| 25 |
426042 |
HINGE, LOWER RH Price: Call Us |
| 26 |
462536 |
Hose, 8.00" Dia. x 53" Long Price: Call Us |
| 27 |
48136-02 |
Clamp, 8-5/8" Max Dia. (61") Price: Call Us |
| 28 |
482422 |
Tube, Filler (8" Hose) Price: Call Us |
| 29 |
482421 |
Elbow (8" Hose) Price: Call Us |
| 30 |
04001-10 |
Bolt, 5/16 - 18 x 1 - 1/4" Hex Head Price: Call Us |
| 31 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 32 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 33 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 34 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
