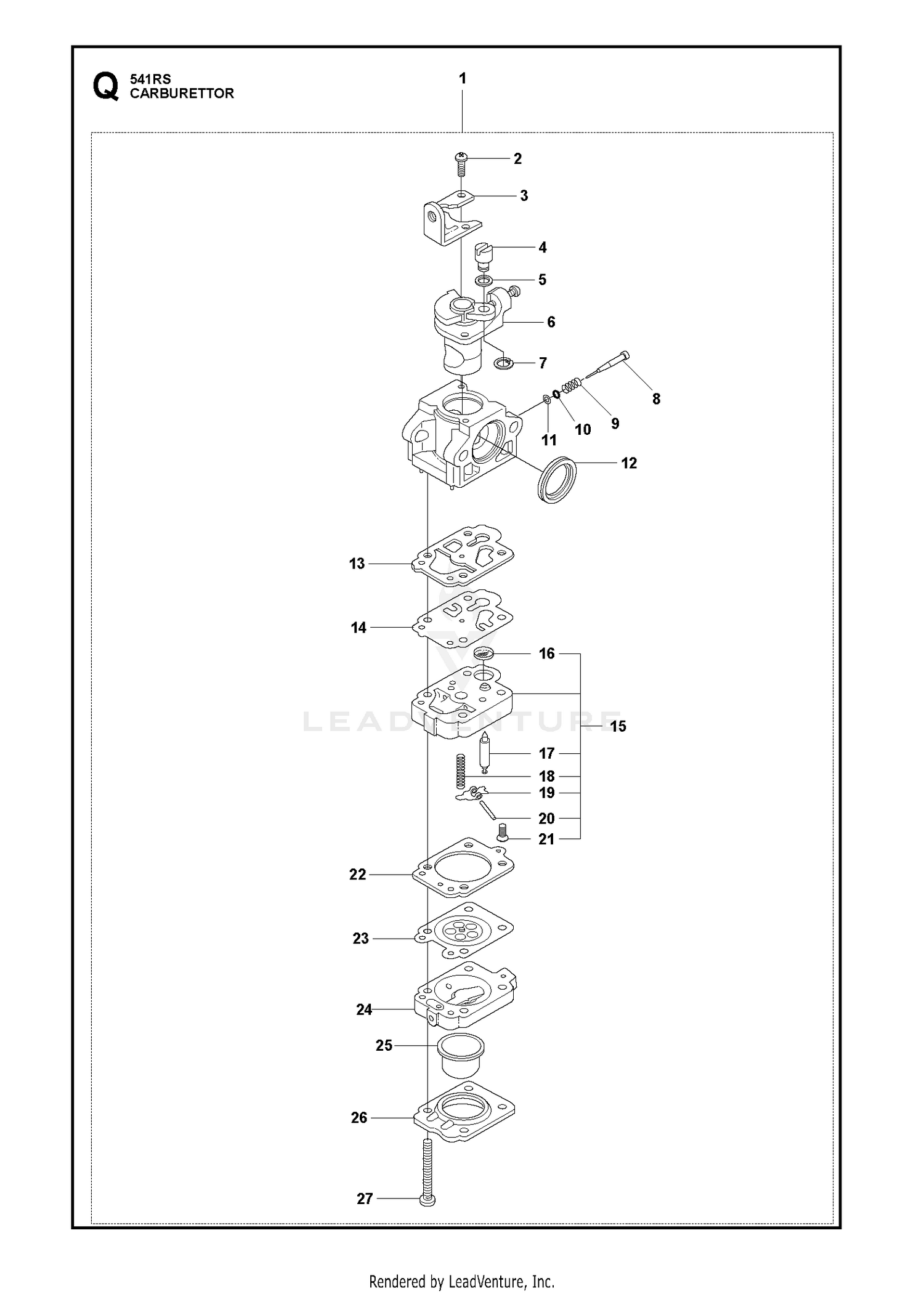

CARBURETOR
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 587106701 | NEEDS DESCRIPTION Price: Call Us |
| 1 | 66-4270-03 | SPRING-EXTENSION This part replaces 66-4270. Price: $23.59 |
| 2 | 107-3376 | SPRING-COMPRESSION Price: $4.45 |
| 2 | 505307901 | SCREW Price: $2.99 |
| 3 | 19-1470 | SCREW-SHOULDER Price: $3.49 |
| 3 | 506746001 | BRACKET Price: $8.99 |
| 4 | 32120-47 | RING-RETAINING, EXTERNAL Price: $0.99 |
| 4 | 506741201 | SWIVEL This part replaces 516597701. Price: $4.99 |
| 5 | 256-257 | BUSHING-NYLINER Price: $3.19 |
| 5 | 506746101 | WASHER Price: $2.99 |
| 6 | 106-8887-03 | PIVOT-LATCH, PARKING Price: $45.94 |
| 6 | 587642901 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 7 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 8 | 114-0631 | CLEVIS-LATCH, PARKING This part replaces 106-8890-03. Price: $10.65 |
| 8 | 512373401 | NEEDLE Price: $5.58 |
| 9 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 9 | 513301601 | SPRING Price: $1.99 |
| 10 | 106-8886 | LINK-LATCH, PARKING Price: $25.51 |
| 10 | 513437701 | WASHER Price: $1.99 |
| 11 | 32121-134 | PIN-ROLL Price: $0.35 |
| 11 | 513437801 | O-RING Price: $1.99 |
| 12 | 106-8885-03 | BAR-LATCH, PARKING Price: $25.51 |
| 12 | 505308401 | RING PACKING Price: $3.99 |
| 13 | 506745101 | GASKET Price: $6.99 |
| 14 | 506689801 | DIAPHRAGM Price: $3.99 |
| 15 | 513410801 | BODY-A Price: $49.99 |
| 16 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 17 | 521085401 | VALVE INLET Price: $11.99 |
| 18 | 513410701 | SPRING Price: $1.99 |
| 19 | 520977201 | LEVER Price: $4.99 |
| 20 | 520977401 | PIN Price: $4.99 |
| 21 | 505306101 | SCREW Price: $2.99 |
| 22 | 506740801 | GASKET Price: $7.99 |
| 23 | 505306801 | DIAPHRAGM Price: $12.99 |
| 25 | 505306701 | PUMP Price: $7.99 |
| 27 | 506741101 | SCREW This part replaces 516544001. Price: $2.99 |
