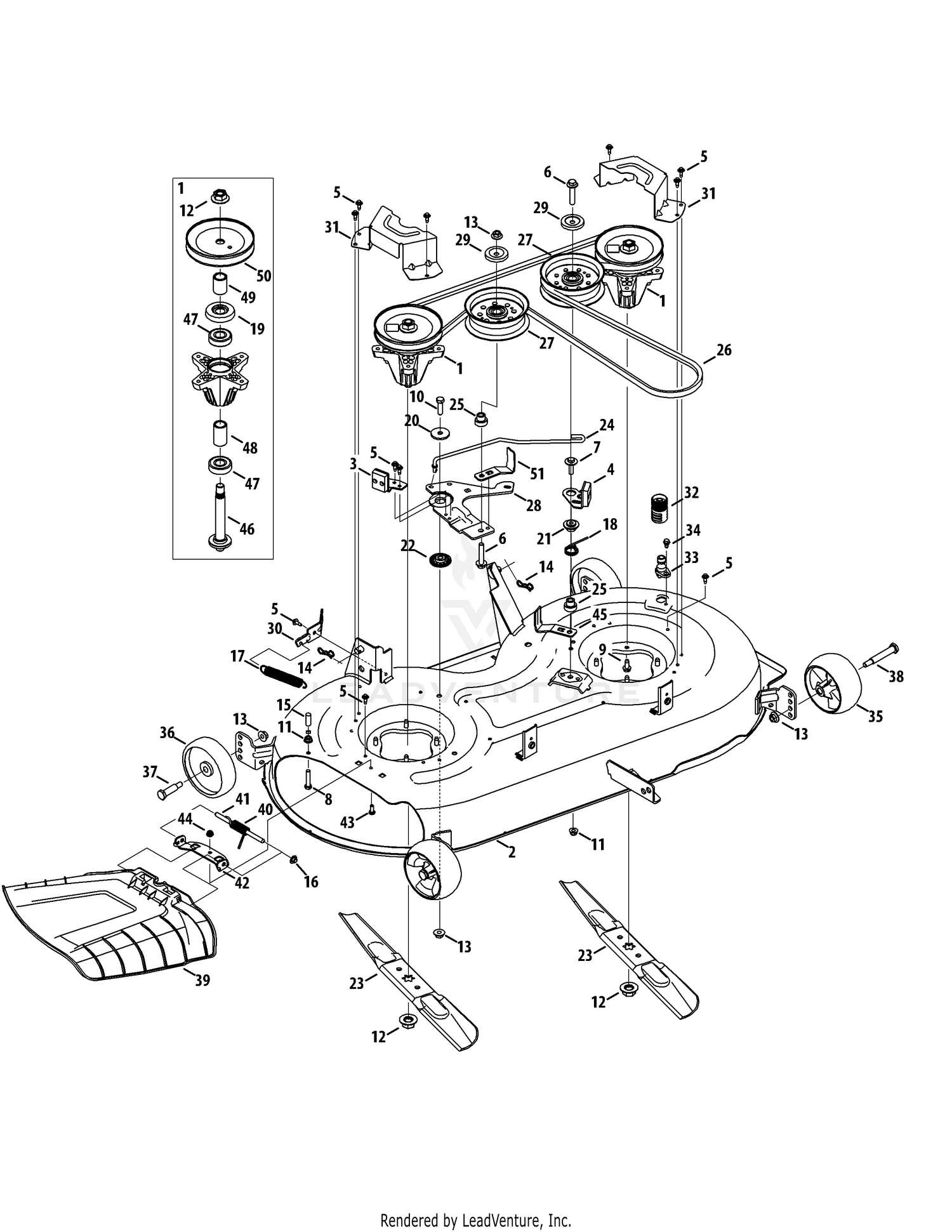

| Ref | Part Number | Description |
|---|
| 1 |
918-06976A |
Deck Spindles This part replaces 918-06976. Price: $137.52 |
| 2 |
983-05076-0637 |
Deck, 42" Price: $748.73 |
| 3 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 983-05182. Price: $87.42 |
| 4 |
753-09904A |
DECK BRAKE ASSEMBLY KIT This part replaces 983-05183. Price: $93.12 |
| 5 |
710-06133 |
Screw, M6-1 x .625 Price: $3.08 |
| 6 |
710-06178 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $5.52 |
| 7 |
710-06213 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $5.52 |
| 8 |
710-0376 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 9 |
710-1260A |
Screw, Self-tapping, 5/16-18, 0.750, Price: $3.34 |
| 10 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 11 |
712-04063 |
Nut, Flange Lock, 5/16-18, Nylon Price: $3.56 |
| 12 |
712-0417A |
HEX NUT Price: $6.50 |
| 13 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 14 |
714-05005 |
Bow-Tie Cotter Pin Price: $4.24 |
| 15 |
720-05010 |
Vinyl Cap, .29 x .50 Price: $3.70 |
| 16 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 17 |
732-04629 |
Spring, Extension, .750 x .477 Price: $25.15 |
| 18 |
732-05151A |
Spring, Torsion, LH Brake Price: $3.70 |
| 19 |
783-08435 |
Bearing Shield Price: $6.28 |
| 20 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 21 |
738-05088 |
Shoulder Spacer, .75 x .145 Price: $3.86 |
| 22 |
738-05099 |
SHOULDER SPACER Price: $6.47 |
| 24 |
747-06452 |
Rod, Brake, Deck Price: $12.90 |
| 25 |
748-05029A |
Shoulder Spacer, Idler Price: $4.19 |
| 26 |
954-05021 |
Belt, V-Type, A Sec x 99.75 Price: $46.63 |
| 27 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 29 |
783-08389 |
Pulley Cap Price: $5.23 |
| 30 |
783-08406-0637 |
Bracket, Cable, PTO Price: $8.29 |
| 31 |
783-08510D-0637 |
DECK BELT COVER (POWDER BLACK) This part replaces 783-08510-0637. Price: $11.70 |
| 32 |
921-04041 |
Coupler, Water Price: $20.19 |
| 33 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 34 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 35 |
734-04155 |
Wheel, Deck, 5.0 Dia. Ball Price: $19.04 |
| 36 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 37 |
938-0373 |
Bolt, Shoulder, .496 x 1.525, 3/8-16 Price: $8.45 |
| 38 |
938-3056 |
Bolt, Shoulder, .496 x 2.50, 3/8-16 Price: $8.53 |
| 39 |
631-04354C |
CHUTE ASSEMBLY This part replaces 631-04354A. Price: $38.48 |
| 40 |
732-05261 |
Spring, Torsion, .440 ID x 1.75 Price: $5.18 |
| 41 |
747-06290B |
Hinge Pin Price: $3.66 |
| 42 |
783-08504B |
CHUTE MOUNTING BRACKET This part replaces 783-08504A. Price: $12.64 |
| 43 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 44 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 45 |
783-08690A-0637 |
BELT KEEPER (POWDER BLACK) This part replaces 783-08690-0637. Price: $11.37 |
| 46 |
738-1010A |
Shaft, Spindle, 5.75 Price: $43.21 |
| 47 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 48 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 49 |
750-06142 |
Spacer, .800 x 1.10 x 1.470 Price: $4.59 |
