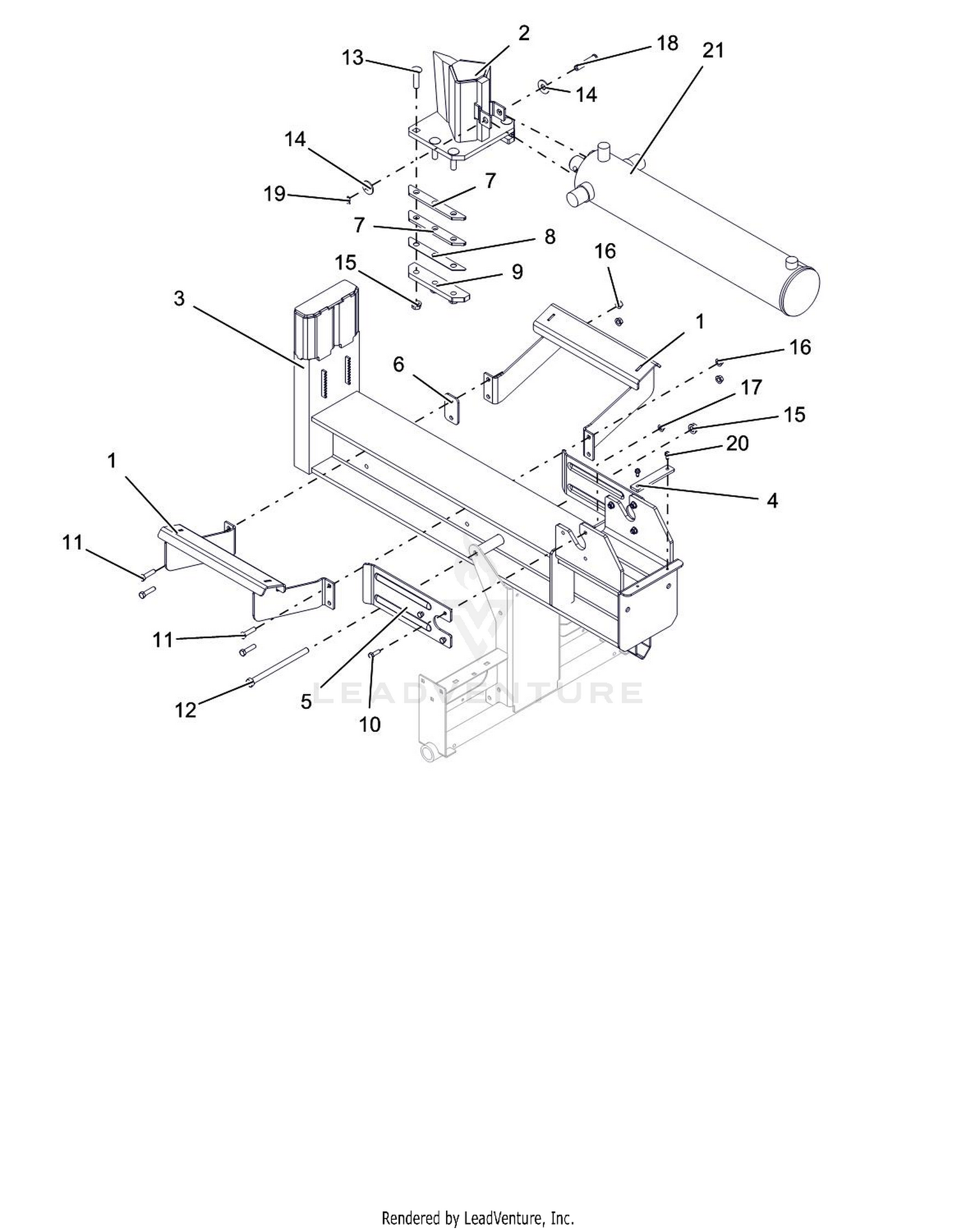

| Ref | Part Number | Description |
|---|
| 1 |
3220-8 |
NUT-JAM Price: $6.79 |
| 1 |
71701600 |
KIT, LOG SPLITTER CRADLE KIT This part replaces 03863051. Price: $142.95 |
| 2 |
3253-28 |
WASHER-LOCK/SP Price: $1.36 |
| 2 |
51701100 |
WEDGE,SPLITTER This part replaces 04353151. Price: $407.95 |
| 3 |
04354951 |
WLDMT, CE SPLITTER BEAM Price: Call Us |
| 3 |
41-8880-03 |
DISCONTINUED This part replaces 41-8880. Price: Call Us |
| 4 |
03835751 |
SPACER, CYLINDER Price: $9.45 |
| 4 |
41-8820-03 |
STRG GEAR ASM MANUAL This part replaces 41-8820. Price: $1,207.92 |
| 5 |
04861459 |
WLDMT, PLATE - STRIPPER This part replaces 03857359. Price: $112.45 |
| 6 |
03886751 |
PLATE, WORK TABLE SPACER Price: $5.95 |
| 6 |
41-8830 |
STRG COUPLING CLAMP Price: $6.27 |
| 7 |
03967151 |
SPACER, WEDGE Price: $21.95 |
| 7 |
27-3550-03 |
MASKED BRAKE LATCH ROD This part replaces 27-3550. Price: $46.87 |
| 8 |
04284651 |
SHIM,SPLITTER WEDGE Price: $30.45 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 9 |
04353251 |
RETAINER,WEDGE Price: $23.95 |
| 9 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 10 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 10 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 11 |
41-8840-01 |
DISCONTINUED This part replaces 41-8840. Price: Call Us |
| 12 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 12 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 13 |
06200422 |
BLT- RHSN .50-13X2.00 G8 ZCC This part replaces 06200208. Price: $5.45 |
| 13 |
3217-5 |
NUT-HEX Price: $0.25 |
| 14 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 14 |
233-17 |
KNOB Price: $10.58 |
| 15 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 15 |
251-275 |
DISCONTINUED Price: Call Us |
| 16 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 16 |
21-9260 |
COVER-DUST Price: $8.19 |
| 17 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 17 |
24-2090 |
STEERING WHEEL CAP Price: $30.55 |
| 18 |
06810700 |
PIN-CLEV .494X2.50 BRIGHT ZINC This part replaces 06822300. Price: $3.45 |
| 18 |
9547 |
WASHER-THRUST This part replaces 25-6260. Price: $5.69 |
| 19 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 19 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 20 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 20 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 21 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 22 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 23 |
108-1379 |
RH BRAKE CABLE ASM This part replaces 21-3370. Price: $162.33 |
| 24 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 25 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 27 |
42-2540-01 |
MASKED BRAKE PIN WA. This part replaces 42-2540. Price: $27.99 |
| 28 |
41-8810-01 |
LH BRAKE PEDAL WA This part replaces 41-8810. Price: $182.91 |
| 29 |
256-42 |
BUSHING Price: $7.03 |
| 30 |
41-8800 |
DISCONTINUED Price: Call Us |
| 31 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 32 |
27-3560-03 |
DISCONTINUED This part replaces 27-3560. Price: Call Us |
| 33 |
329-4 |
SCREW-HH Price: $0.79 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 36 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 37 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 38 |
42-3220-03 |
RACK ASM This part replaces 42-3220. Price: $51.15 |
| 39 |
27-3390 |
FRONT STEERING TUBE *B Price: $126.93 |
| 40 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 41 |
3220-5 |
NUT-JAM Price: $0.65 |
