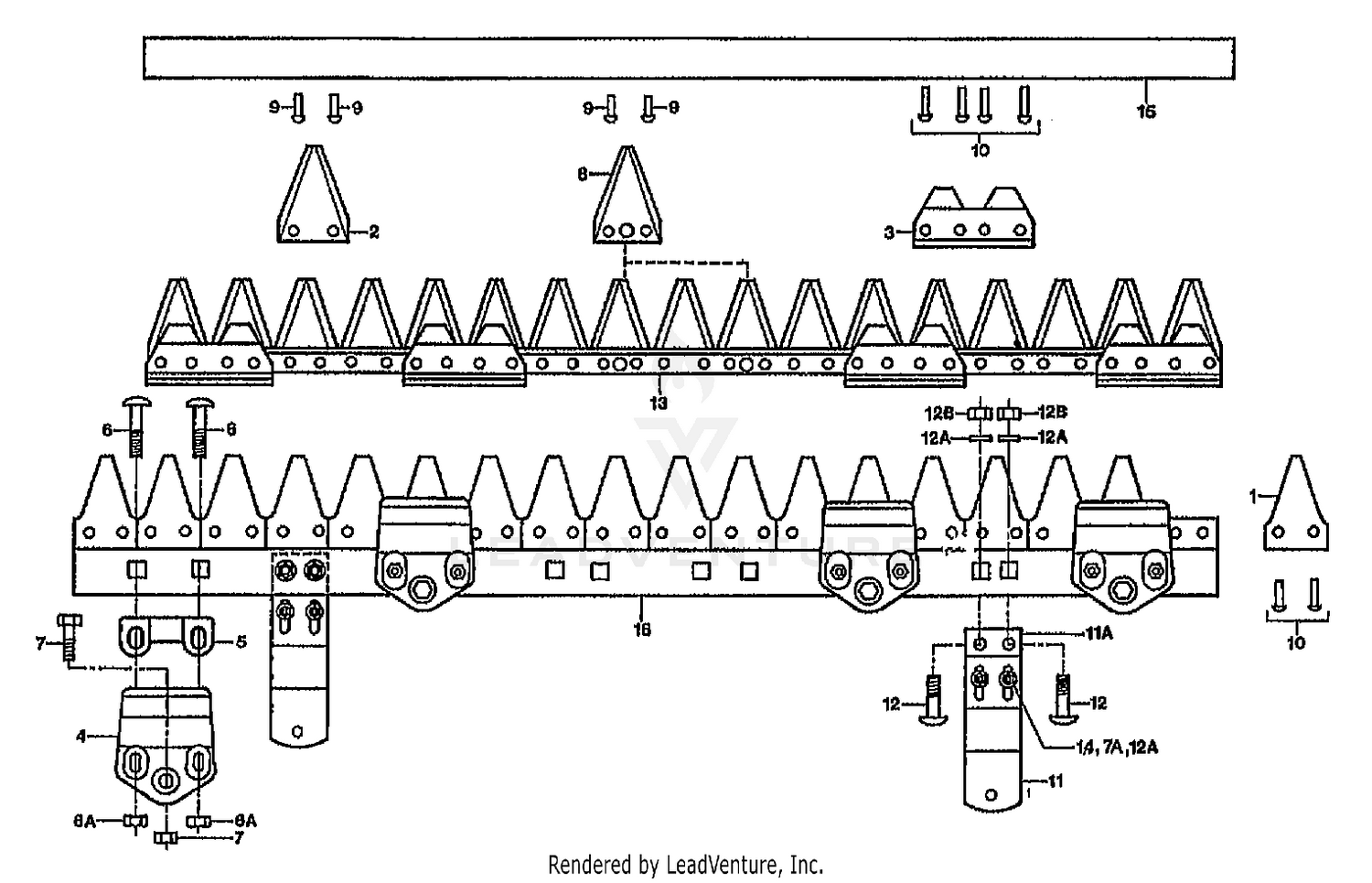

| Ref | Part Number | Description |
|---|
| 1 |
GW-P406655 |
LEDGER SECTION Not Available Price: |
| 2 |
GW-P406657 |
BLADE SECTIONS 2 HOLES Not Available Price: |
| 3 |
GW-P406659 |
WEAR PLATE Not Available Price: |
| 4 |
GW-P406654 |
CLIP-BLADE GUIDE Price: $55.39 |
| 5 |
GW-P406656 |
PLATE Not Available Price: |
| 6 |
GW-P406931 |
SCR-CARR M Not Available Price: |
| 6A |
712-3077 |
HEX NUT M8X1.25 GR8.8 Not Available This part replaces GW-P406904. Price: |
| 7 |
710-1683 |
SCREW M8-1.25X30 Not Available This part replaces GW-P406915. Price: |
| 7A |
GW-P406930 |
NUT-M8 BRAKE Not Available Price: |
| 8 |
GW-P406658 |
BLADE SECT Not Available Price: |
| 9 |
GW-P404962099 |
RIVETS CS90 5.3 X Not Available This part replaces GW-P404962. Price: |
| 10 |
GW-P404964 |
RIVET Not Available Price: |
| 11 |
GW-P406935 |
BOTTOM HALF - HEIGHT ADJUSTERS Price: Call Us |
| 11A |
GW-P406934 |
TOP HALF - HEIGHT ADJUSTERS Price: Call Us |
| 12 |
GW-P406905 |
SCR-CARR M Not Available Price: |
| 12A |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-P406745. Price: |
| 12B |
GW-P406906 |
NYLOC M8 Not Available Price: |
| 13 |
GW-P406663 |
ASSM-34" BLADE T/B SICKLEBAR Price: Call Us |
| 14 |
GW-P406965 |
U-BOLT M8 HEIGHT A Not Available Price: |
| 15 |
GW-P406964 |
SHIELD-PLA Not Available Price: |
| 16 |
GW-P406950 |
LEDGER BAR W/RIVET Not Available This part replaces GW-P406949. Price: |
