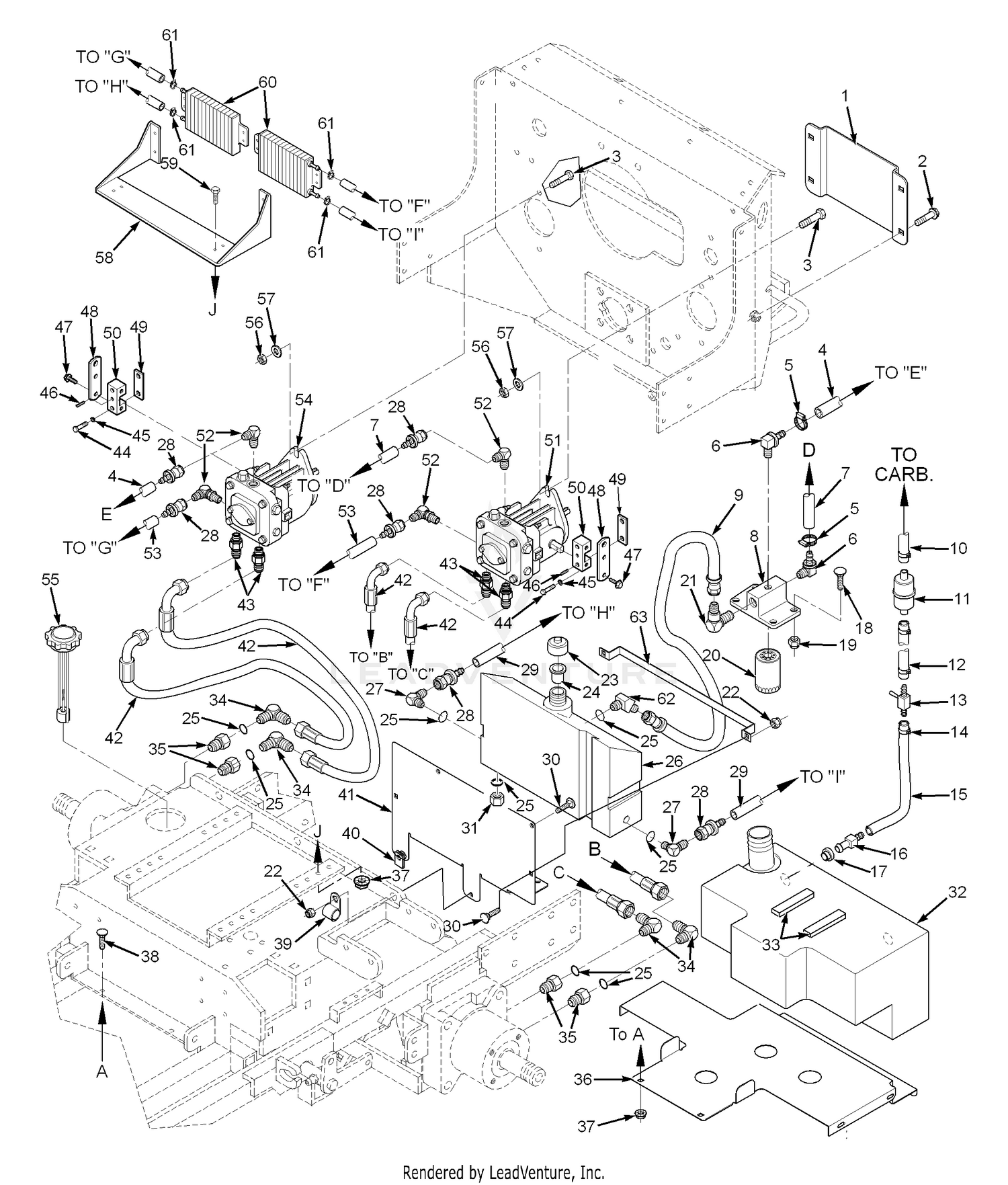

| Ref | Part Number | Description |
|---|
| 1 |
422475 |
Rear Cover Price: Call Us |
| 2 |
04003-12 |
Bolt, Carraige 5/16-18 x .75" Price: Call Us |
| 3 |
04001-03 |
Bolt, Hex Head 1/4-20 x 2.0" Price: Call Us |
| 5 |
48136-07 |
Clamp, Hose 1/2" Price: Call Us |
| 6 |
481301-03 |
Elbow, 90 Degree - 1/4 NPT x 3/8 Hose Price: Call Us |
| 8 |
48471-02 |
Oil Filter Base Price: Call Us |
| 13 |
48568 |
Valve, Shutoff Price: Call Us |
| 14 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 16 |
481602 |
Hose Fitting Price: Call Us |
| 17 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 18 |
04003-04 |
Bolt, Carraige 5/16-18 x 1.0" Price: Call Us |
| 19 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 20 |
48758 |
Oil Filter Price: Call Us |
| 21 |
48573-02 |
Elbow, 45 Degree 1/2NPT x 3/4 JIC Price: Call Us |
| 22 |
04021-08 |
Nut, Hex Elastic Stop 1/4-20 Price: Call Us |
| 23 |
481164 |
Cap, Hydraulic Tank Price: Call Us |
| 24 |
481507 |
Insert, Filler Neck Price: Call Us |
| 25 |
48603-02 |
O-Ring Price: Call Us |
| 26 |
46978 |
Oil Reservoir Assembly Price: Call Us |
| 27 |
48350-09 |
Elbow, 90 Degree, 9/16-18 JIC x 9/16 O-Ring Price: Call Us |
| 28 |
48353-07 |
Coupling, 3/4-16 THD Price: Call Us |
| 30 |
04003-06 |
Bolt, Carraige 1/4-20 x 1.0" Price: Call Us |
| 31 |
48604-02 |
Plug, 3/4-16 O-Ring Price: Call Us |
| 33 |
48657 |
Pad, Rubber Price: Call Us |
| 34 |
48350-05 |
Elbow, 90 Degree, 7/8-14 THD Price: Call Us |
| 35 |
48938-02 |
Bushing, 7/8-14 JIC x 3/4-16 O-Ring Price: Call Us |
| 36 |
422353 |
Support Bracket, Fuel Tank Price: Call Us |
| 37 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 38 |
04003-12 |
Bolt, Carraige 5/16-18 x 3/4" Price: Call Us |
| 39 |
48030-09 |
Hose Clamp Price: Call Us |
| 40 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 41 |
422354 |
Support Bracket, Hydraulic Tank Price: Call Us |
| 42 |
484459 |
Hose Assembly, Pump This part replaces 481611. Price: Call Us |
| 43 |
48572-04 |
Union, 3/4-16 JIC x 3/4-16 O-Ring Price: Call Us |
| 44 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 45 |
04030-02 |
Lockwasher, 1/4" Spring Price: Call Us |
| 46 |
04060-06 |
Roll Pin, Spring 3/16 x 3/4" Price: Call Us |
| 47 |
04017-05 |
Bolt, Hex Serrated Flange 1/4-20 x 3/4" Price: Call Us |
| 48 |
422379 |
Lever, Control Price: Call Us |
| 49 |
421203 |
Clamp Plate, Pump Control Price: Call Us |
| 50 |
48829 |
Block, Pump Control Price: Call Us |
| 51 |
482637 |
PUMP, BDP-10A-429 - LH This part replaces 482325. Price: Call Us |
| 52 |
48350-09 |
Elbow, 90 Degree Price: Call Us |
| 54 |
482638 |
PUMP, BDP-10A-317 - RH This part replaces 482326. Price: Call Us |
| 55 |
481661 |
Cap, Fuel Tank W/Guage Price: Call Us |
| 56 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 58 |
423399 |
Mounting Bracket, Oil Cooler Price: Call Us |
| 59 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 60 |
482025 |
Cooler, Oil Price: Call Us |
| 61 |
48136-13 |
Clamp, .69 Dia. Price: Call Us |
| 62 |
48573-02 |
Elbow, 45 Degree 3/4-16 JIC x 3/4-16 O Ring Price: Call Us |
