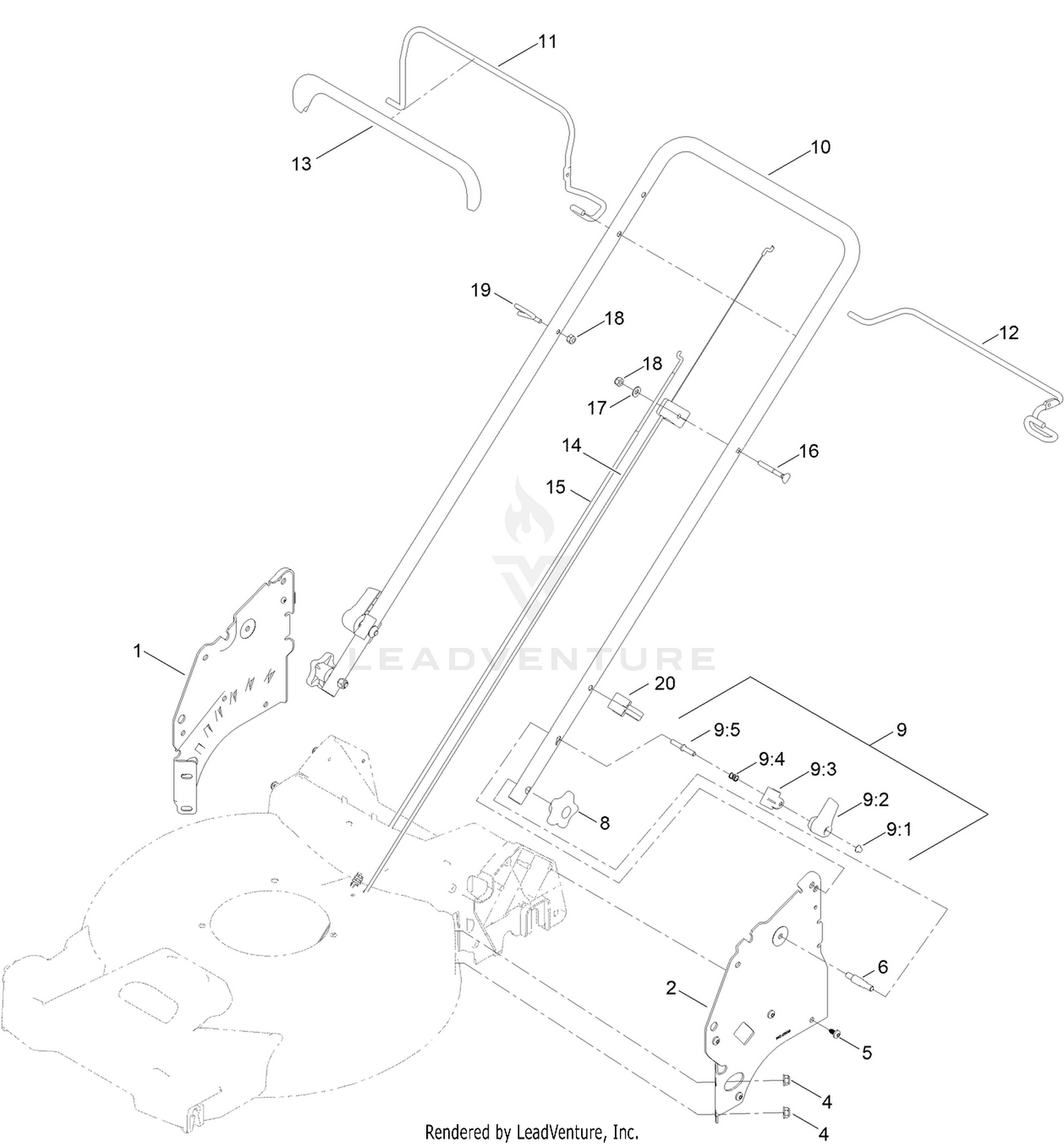

Handle Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5507-05 | PLATE-HANDLE, RH Price: $33.99 |
| 2 | 145-5508-05 | PLATE-HANDLE, LH Price: $33.99 |
| 4 | 138-8401 | NUT-HF Price: $0.49 |
| 5 | 139-1679 | SCREW-PLASTIC,PH Price: $0.89 |
| 6 | 139-6588 | BOLT-SHOULDER, HANDLE Price: $1.59 |
| 8 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 9 | 138-3249 | QUICK RELEASE ASM Price: $10.99 |
| 10 | 145-5509-05 | HANDLE-UPPER Price: $50.99 |
| 11 | 138-3270-03 | BAIL-BRAKE Price: $13.99 |
| 12 | 137-4799-03 | BAIL-TRACTION Price: $15.99 |
| 13 | 137-4797 | COVER-BAIL Price: $4.19 |
| 14 | 112-8818 | CABLE-BRAKE Price: $33.99 |
| 15 | 127-0733 | CABLE-TRACTION Price: $17.99 |
| 16 | 139-1701 | SCREW-HANDLE Price: $2.09 |
| 17 | 139-1699 | WASHER-FLAT Price: $0.89 |
| 18 | 137-3094 | NUT-HEX Price: $0.39 |
| 19 | 86-9671 | GUIDE-ROPE Price: $3.99 |
