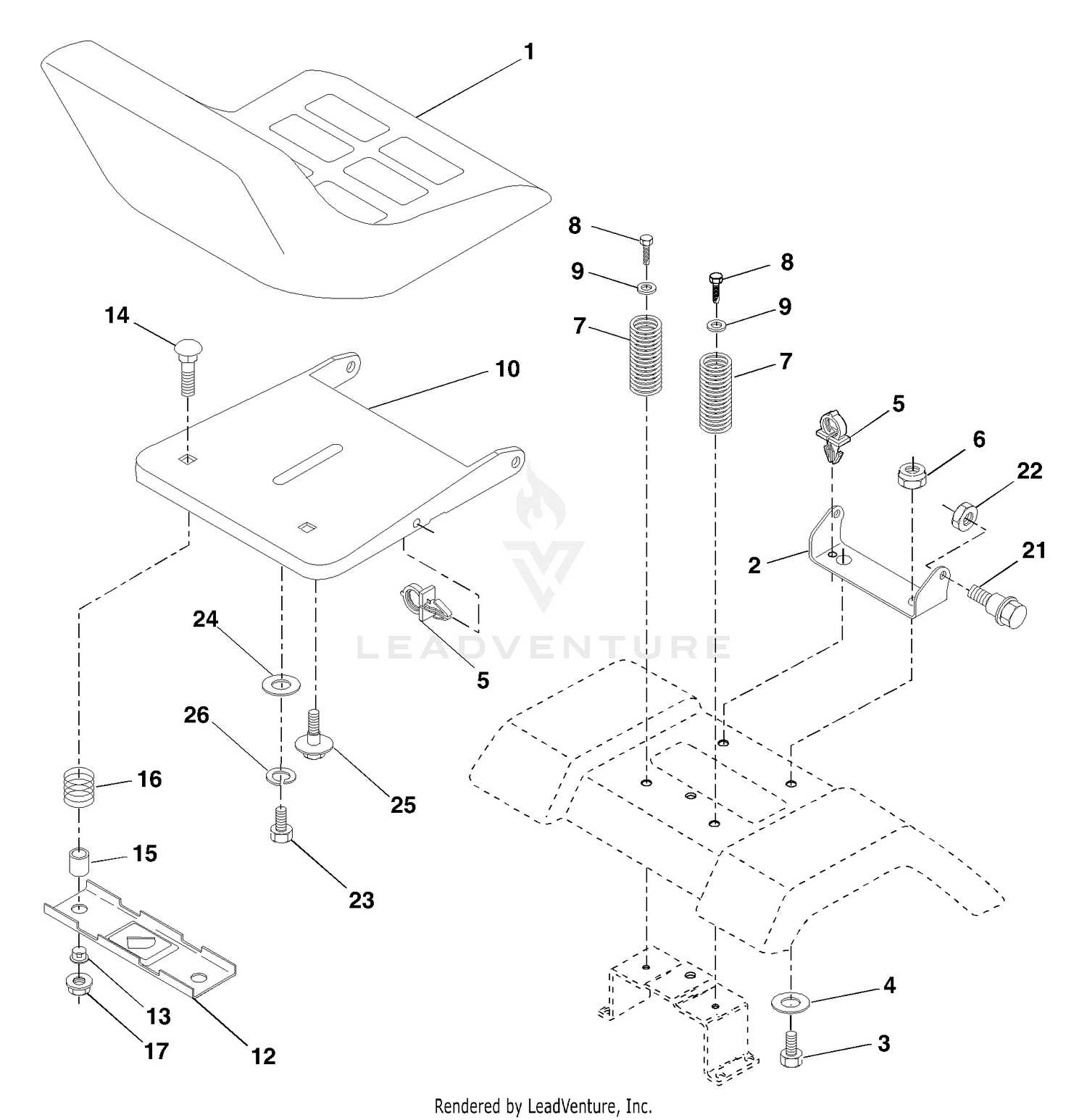

| Ref | Part Number | Description |
|---|
| 1 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 2 |
29-9790 |
DISCONTINUED Price: Call Us |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
321-9 |
SCREW-HH Price: $0.27 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
3210-7 |
SCREW-HH Price: $0.61 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
3219-2 |
NUT-HEX Price: $0.37 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
3217-16 |
NUT-HEX Price: $0.25 |
| 12 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
52-8890-03 |
DISCONTINUED This part replaces 52-8890. Price: Call Us |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
52-9070 |
PLATE-PUMP Price: $101.93 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
322-17 |
SCREW-HH Price: $2.62 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
251-259 |
BEARING-BALL Price: $13.67 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $8.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
