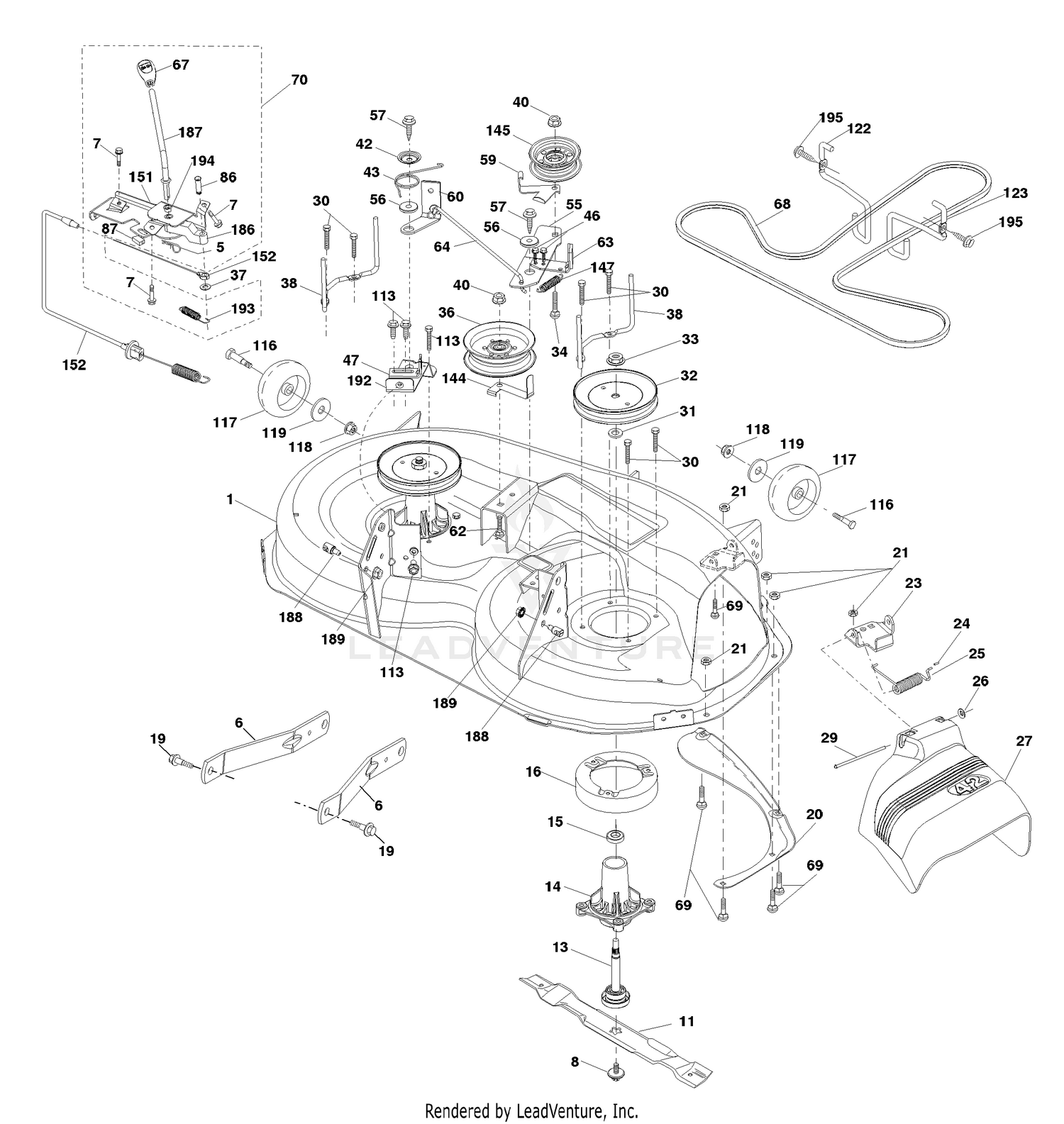

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 1 |
598602801 |
Decks This part replaces 532402999. Price: $349.99 |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 7 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 10 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060. Price: $249.55 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
106-4619 |
ENGINE KIT 18HP VANGUARD GAS This part replaces 83-0010. Price: $3,846.49 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400. Price: $18.94 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
12-3270 |
SCREW Price: $3.09 |
| 18 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 19 |
493963 |
Muffler Price: Call Us |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 20 |
83-2220 |
DISCONTINUED- BRIGGS 222902 Price: Call Us |
| 21 |
322-8 |
SCREW-HH Price: $1.26 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
83-2230 |
DISCONTINUED- BRIGGS 93705 Price: Call Us |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER This part replaces 83-1630. Price: $129.03 |
| 25 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
321-4 |
SCREW-HH Price: $0.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 28 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120. Price: $114.20 |
| 29 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
324-7 |
SCREW-HH Price: $1.79 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
32128-20 |
NUT-HF Price: $0.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
322-3 |
SCREW-HH Price: $0.79 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P Price: $12.99 |
| 33 |
43-2830 |
NUT-HEX Price: $0.39 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 36 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532199189. Price: $6.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
597074201 |
ARMS This part replaces 532197402. Price: $12.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
592855001 |
Belts This part replaces 532197253. Price: $34.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX Price: $71.99 |
| 86 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197798. Price: $71.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 147 |
532401971 |
RETURN SPRING Price: $4.99 |
| 151 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532406560. Price: $71.99 |
| 152 |
532435110 |
CABLE.CLUTCH.CABLE.W/SPRING This part replaces 532408319. Price: $32.99 |
| 186 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197799. Price: $71.99 |
| 187 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532406562. Price: $71.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 192 |
531152801 |
SERVICE KIT BRACKET BRKT.BRAKE This part replaces 532197260. Price: $5.99 |
| 193 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197801. Price: $71.99 |
| 194 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197797. Price: $71.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
