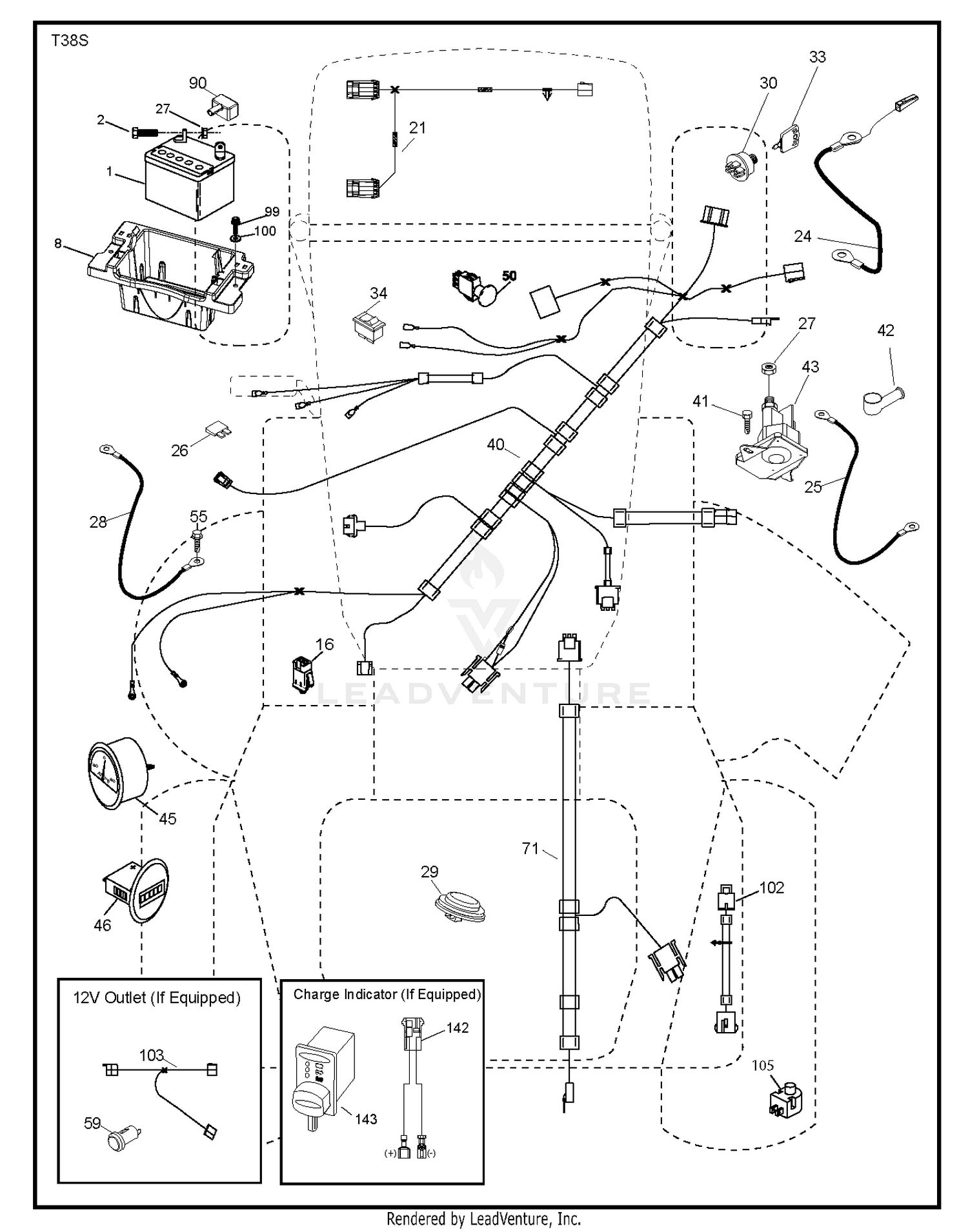

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
82-2850 |
PLATE Price: $21.91 |
| 2 |
82-9680 |
RIVET Price: $0.98 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
82-9700 |
SCREW Price: $1.58 |
| 4 |
82-2730 |
WEAR PARTS KIT Price: $67.73 |
| 5 |
82-2740 |
TENSION SPRING SET Price: $72.36 |
| 6 |
56-4150 |
LEVER Price: $71.57 |
| 7 |
82-2870 |
LEVER-ADJUST Price: $43.38 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 12 |
82-2800 |
CUSHION-REST, BACK Price: $418.29 |
| 13 |
56-3850 |
SCREW Price: $3.37 |
| 14 |
55-4330 |
LH ARMREST ASM Price: $146.35 |
| 15 |
82-2840 |
CUSHION-BOTTOM Price: $555.71 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
92-2951 |
RAIL-ADJUST, LH Price: $199.04 |
| 17 |
82-9690 |
SCREW Price: $2.67 |
| 18 |
56-4030 |
DISCONTINUED This part replaces 82-9660. Price: Call Us |
| 19 |
82-9650 |
NUT Price: $8.89 |
| 20 |
82-2820 |
SWING ARM ASM Price: $422.94 |
| 21 |
585436401 |
HARNESS LIGHT ASSY TRACTOR, Price: $22.99 |
| 21 |
82-2790 |
RAIL-ADJUST, LH Price: $212.20 |
| 22 |
82-9710 |
TRIM-BOTTOM Price: $54.09 |
| 23 |
82-2720 |
FRAME-SEAT Price: $1,045.27 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $7.99 |
| 24 |
82-9640 |
SCREW Price: $0.98 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 25 |
82-2810 |
SWITCH ASM Price: $336.01 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
82-9620 |
DISCONTINUED Price: Call Us |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
82-9630 |
NUT Price: $1.24 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $11.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
56-4170 |
PIN Price: $24.96 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
56-3890 |
NUT Price: $4.04 |
| 31 |
56-3880 |
WASHER Price: $1.33 |
| 32 |
82-9720 |
TRIM-REST, BACK Price: $39.95 |
| 33 |
82-2860 |
SPRING-SET, TENSION Price: $19.71 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
82-2750 |
DISCONTINUED Price: Call Us |
| 35 |
82-2710 |
SCREW Price: $8.39 |
| 37 |
82-2830 |
CLAMP Price: $13.33 |
| 38 |
82-2770 |
SHOCK ABSORBER ASM Price: $221.09 |
| 39 |
82-9670 |
NUT Price: $0.93 |
| 40 |
501133101 |
HARNESS.IGN.DSH.W112V.WPORTWIR Price: $59.99 |
| 40 |
56-3940 |
WASHER Price: $1.33 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
82-2760 |
BUSHING KIT Price: $9.67 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 587553906. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 587554006. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
