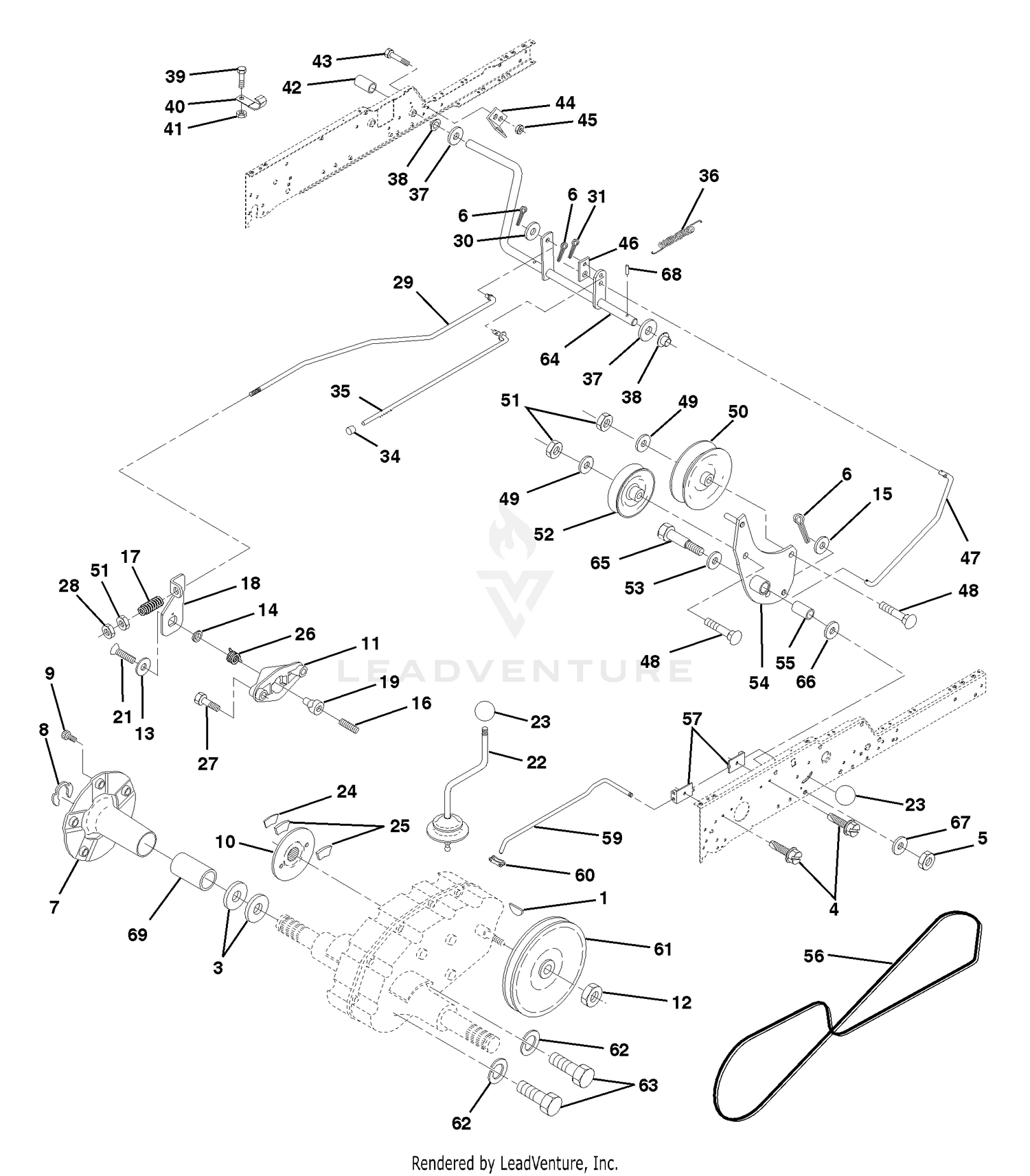

| Ref | Part Number | Description |
|---|
| 1 |
532009858 |
KEY This part replaces 532124708. Price: $5.39 |
| 1 |
69-2110 |
COUPLING Price: $207.41 |
| 2 |
69-2170 |
ADAPTER SECTION ASM Price: $910.48 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
59-7990 |
SEAL Price: $14.58 |
| 4 |
59-8470 |
RETAINER Price: $18.19 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 5 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
69-2070 |
PLATE-FLEX Price: $311.23 |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 6 |
69-2200 |
O-RING Price: $17.77 |
| 7 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532135758. Price: $42.99 |
| 7 |
69-2080 |
SECTION-CENTER Price: $700.92 |
| 8 |
69-2090 |
GEAR-DRIVE, REAR Price: $897.49 |
| 8 |
812000034 |
Ring Klip Price: $2.99 |
| 9 |
59-8600 |
GEAR Price: $470.56 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
532142509 |
DISC BRAKE This part replaces 532143046. Price: $17.99 |
| 10 |
69-2120 |
O-RING Price: $28.48 |
| 11 |
532136927 |
YOKE-BRAKE DISC Price: $9.99 |
| 11 |
69-2100 |
REAR COVER ASM Price: $1,088.03 |
| 12 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 12 |
532009204 |
NUT STD Price: $2.38 |
| 13 |
532139419 |
WASHER Price: $4.99 |
| 13 |
69-2150 |
CAPSCREW Price: $20.18 |
| 14 |
532138901 |
BUSHING Price: $4.99 |
| 14 |
69-2140 |
CAPSCREW Price: $13.36 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
69-2200 |
O-RING This part replaces 69-2210. Price: $17.77 |
| 16 |
532143012 |
SET SCREW Price: $2.99 |
| 16 |
69-2160 |
PORT SECTION ASM Price: $1,469.23 |
| 17 |
532126909 |
SPRING,ROD BRAKE Price: $4.99 |
| 17 |
59-8500 |
GEAR Price: $1,303.76 |
| 18 |
532137104 |
BRAKE LEVER Price: $5.99 |
| 18 |
69-2060 |
SHAFT END COVER ASM Price: $1,123.41 |
| 19 |
532136926 |
BRAKE DISC CAM Price: $11.99 |
| 19 |
69-2130 |
DISCONTINUED Price: Call Us |
| 20 |
59-8590 |
SEAL Price: $31.34 |
| 21 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 21 |
823260412 |
Screw Flat Head 1/4-28 x 3/4 Price: $3.99 |
| 22 |
532124863 |
GEAR SHFT LVR T Price: $59.99 |
| 22 |
59-8570 |
SEAL Price: $45.56 |
| 23 |
532121466 |
KNOB Price: $3.99 |
| 23 |
59-7970 |
STUD Price: $17.00 |
| 24 |
532136925 |
BRAKE PUCK SUPPORT Price: $3.99 |
| 24 |
59-7580 |
NUT Price: $0.95 |
| 25 |
532136923 |
BRAKE PUCK TOP Price: $14.99 |
| 26 |
532137552 |
RETURN SPRING Price: $4.99 |
| 27 |
596241001 |
Screws This part replaces 817490528. Price: $4.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
532137213 |
ROD BRAKE ZINC GT Price: $20.99 |
| 30 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 31 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 36 |
532149412 |
SPRING DRIVE GROUND This part replaces 532138364. Price: $4.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
532110895 |
NYLINER T Price: $3.10 |
| 39 |
874321016 |
Screw Fin #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH This part replaces 532005304. Price: $3.99 |
| 41 |
532069180 |
LOCKNUT This part replaces 873631000. Price: $2.99 |
| 42 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 43 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 44 |
532104601 |
BRKT SWITCH GT Price: $5.46 |
| 45 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 46 |
532121358 |
RETAINER SPRING Price: $2.38 |
| 47 |
532138228 |
CLUTCH ROD Price: $6.99 |
| 48 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
819131413 |
Washer 13/32 x 7/8 x 13 Ga Price: $2.99 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 51 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 52 |
532139123 |
PULLEY.IDLER.V. Price: $32.99 |
| 53 |
532000207 |
WASHER T Price: $4.99 |
| 54 |
532138390 |
CLUTCH ARM ASSY Price: $17.67 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 56 |
532137153 |
V-BELT GROUND DRIVE Price: $59.99 |
| 57 |
532141756 |
BRACKET SHIFT ROD Price: $3.99 |
| 59 |
532122253 |
ROD SHIFT HI LO Price: $14.99 |
| 60 |
532122268 |
CONNECTING LINK Price: $4.99 |
| 61 |
532137524 |
TRANSAXLE PULLEY Price: $29.99 |
| 62 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 63 |
874780720 |
BOLT, HEX This part replaces 874760720. Price: $5.99 |
| 64 |
532154752 |
SHAFT CLUTCH/BRAKE PEDAL This part replaces 532137649. Price: $39.99 |
| 65 |
532067609 |
AXLE BOLT Price: $7.99 |
| 66 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 67 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
