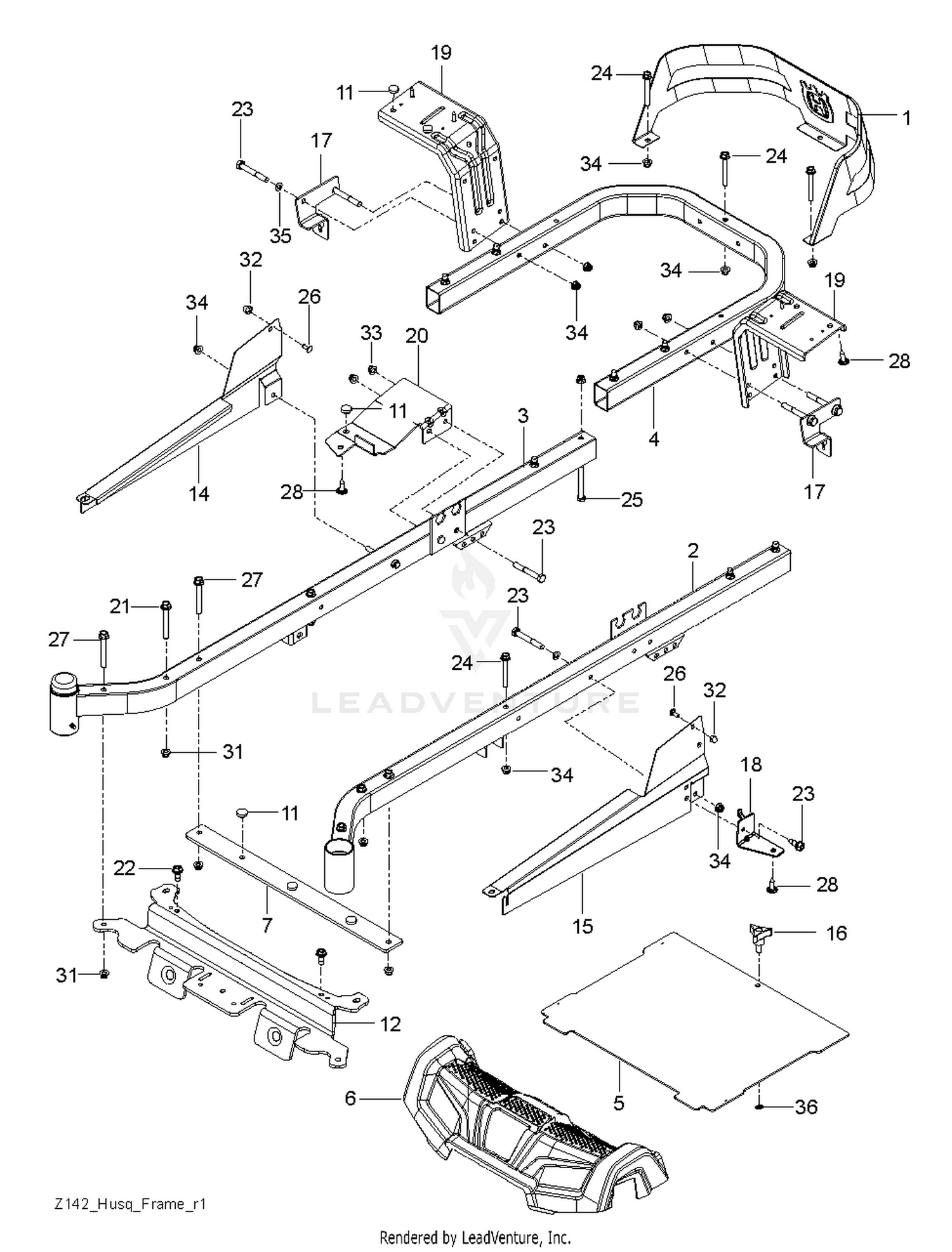

| Ref | Part Number | Description |
|---|
| 1 |
585039802 |
GUARD.ENGINE.HUSQ.RZ.X498 Price: $29.99 |
| 2 |
589283402 |
FRAME.TUBE.RZ.MAIN.WELD.RH.ORG Price: $79.99 |
| 3 |
589283302 |
FRAME.TUBE.RZ.MAIN.WELD.LH.ORG Price: $79.99 |
| 4 |
584991002 |
TUBE.PNT.FRAME.RER.HUSQ.23".RZ Price: $74.99 |
| 5 |
598712401 |
PLATES This part replaces 581448602. Price: $99.99 |
| 6 |
586703801 |
COVER.FOOTREST.REFRESH.ASM Price: $54.99 |
| 7 |
529365102 |
SUPPORT.RZ.FOOTREST.PLATE.X43 This part replaces 585523004. Price: $24.99 |
| 10 |
112-0185 |
TAPPET Price: $25.58 |
| 11 |
585989301 |
GROMMET.BUMPER Price: $3.99 |
| 12 |
585523104 |
CROSS.PNT.MEMBER.BLK Price: $84.99 |
| 15 |
585331502 |
COVER.RAIL.LH.RZ.X668 Price: $37.99 |
| 16 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 17 |
585474302 |
BRKT ROD.BYPASS.EZT.X431 Price: $8.99 |
| 18 |
585523604 |
SUPPORT.PNT.LH.CONSOLE.FRONT Price: $34.99 |
| 19 |
580501302 |
FENDER.SUPPORT.PNT.X431 Price: $32.99 |
| 20 |
127-0421 |
ROD-PUSH This part replaces 98-9509. Price: $5.90 |
| 20 |
593118304 |
SUPPORT RZ REFRESH RH CONSOLE This part replaces 585523404. Price: $17.99 |
| 21 |
586654302 |
Bolts This part replaces 586654301. Price: $1.99 |
| 22 |
586881101 |
BOLT.5/16-18.THRD.ROLL.SHOULDR Price: $2.99 |
| 23 |
596434801 |
Bolts This part replaces 874780536. Price: $2.99 |
| 24 |
596218601 |
Bolts This part replaces 874780544. Price: $3.99 |
| 25 |
596564405 |
Bolts This part replaces 874780648. Price: $2.99 |
| 26 |
585940001 |
BOLT.CARRIAGE.5/16-18.7/16 Price: $2.99 |
| 27 |
577117702 |
Hardware This part replaces 577117701. Price: $3.99 |
| 28 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 30 |
120-3116 |
CAMSHAFT ASM Price: $543.79 |
| 31 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 32 |
585938101 |
NUT ACORN,FLANGED,5/16-18 Price: $2.99 |
| 33 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 34 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 35 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 36 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
| 40 |
110-3729 |
BALL Price: $0.69 |
| 50 |
98-9512 |
GEAR-CAM Price: $246.18 |
| 60 |
98-9378 |
KEY-FEATHER Price: $1.23 |
| 70 |
98-9510 |
STOPPER-CAMSHAFT Price: $12.25 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 90 |
117-7584 |
IDLER GEAR ASM Price: $240.81 |
| 100 |
117-7585 |
BUSHING-GEAR, IDLE Price: $9.36 |
| 110 |
98-9535 |
COLLAR-GEAR, IDLE Price: $2.37 |
| 120 |
98-9536 |
COLLAR-GEAR, IDLE Price: $3.41 |
| 130 |
98-9534 |
CIRCLIP-GEAR, IDLE Price: $1.69 |
| 140 |
98-9533 |
SHAFT-GEAR, IDLE Price: $101.45 |
