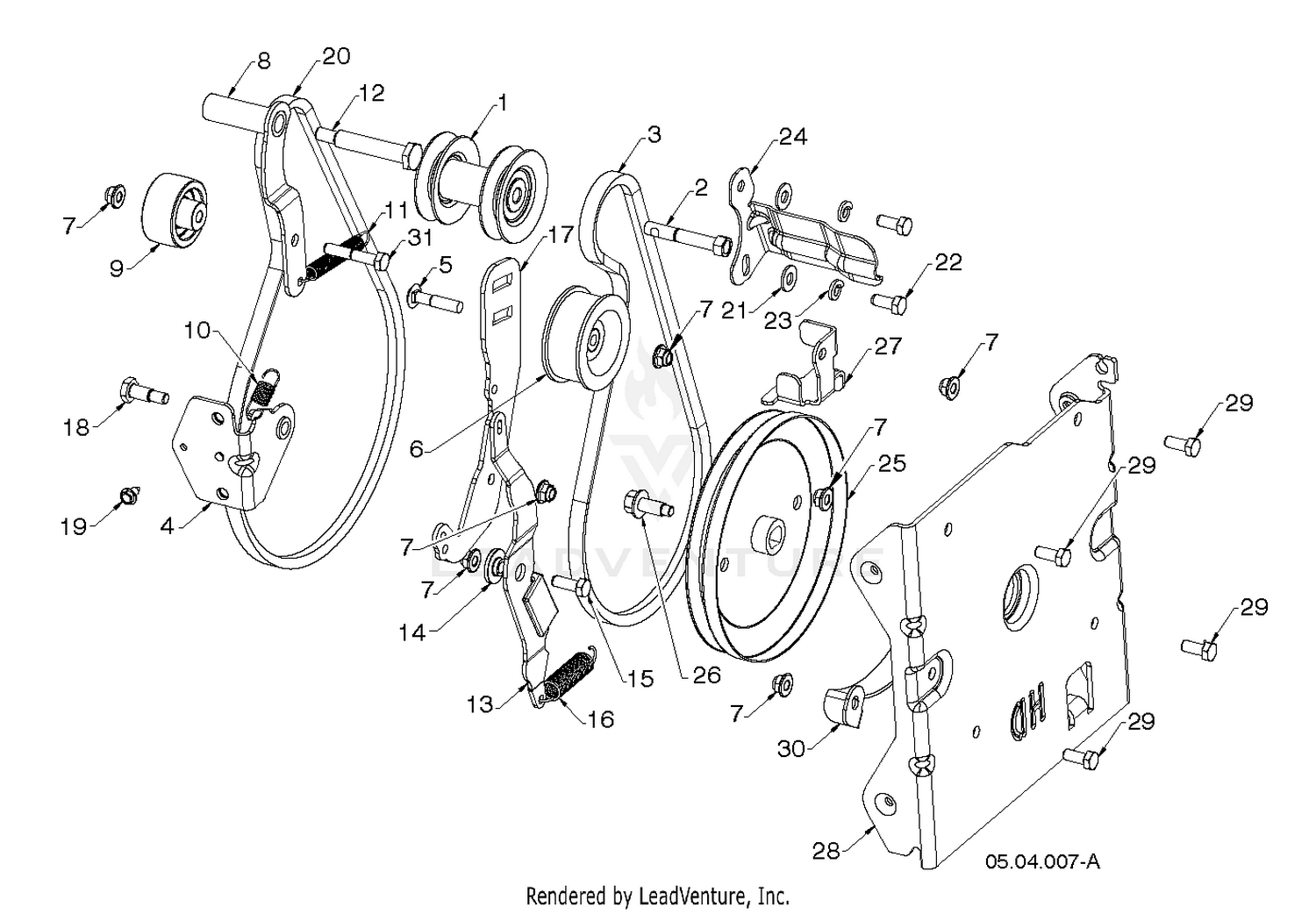

| Ref | Part Number | Description |
|---|
| 2 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 3 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 4 |
546125702 |
BRACKET.WELDMANT.IDLER ARM This part replaces 589263402. Price: $8.99 |
| 5 |
589284501 |
BOLT 5/16-18 CARRIAGE 1.5L Price: $5.99 |
| 7 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 532427942. Price: $5.99 |
| 8 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 9 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER This part replaces 586880201. Price: $9.99 |
| 10 |
589263701 |
SPRING IDLER RETURN Price: $4.99 |
| 11 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 12 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 13 |
579763301 |
ARM IMPELLER BRAKE Price: $27.99 |
| 14 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 15 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 16 |
579763501 |
SPRING EXTENSION - BRAKE Price: $4.99 |
| 17 |
589262902 |
ARM IDLER BLACK ZINC Price: $9.99 |
| 18 |
589263601 |
SCREW HEX HEAD SHOULDER Price: $5.99 |
| 19 |
817060408 |
SCREW Price: $4.99 |
| 20 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $10.00 |
| 21 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 22 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 24 |
588492802 |
BELT KEEPER BRACKET Price: $5.99 |
| 25 |
536862801 |
PULLEY This part replaces 589369201. Price: $22.99 |
| 26 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- This part replaces 583814901. Price: $3.99 |
| 27 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $8.99 |
| 28 |
501595403 |
NEEDS DESCRIPTION This part replaces 501595402. Price: $6.99 |
| 29 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 30 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 31 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
