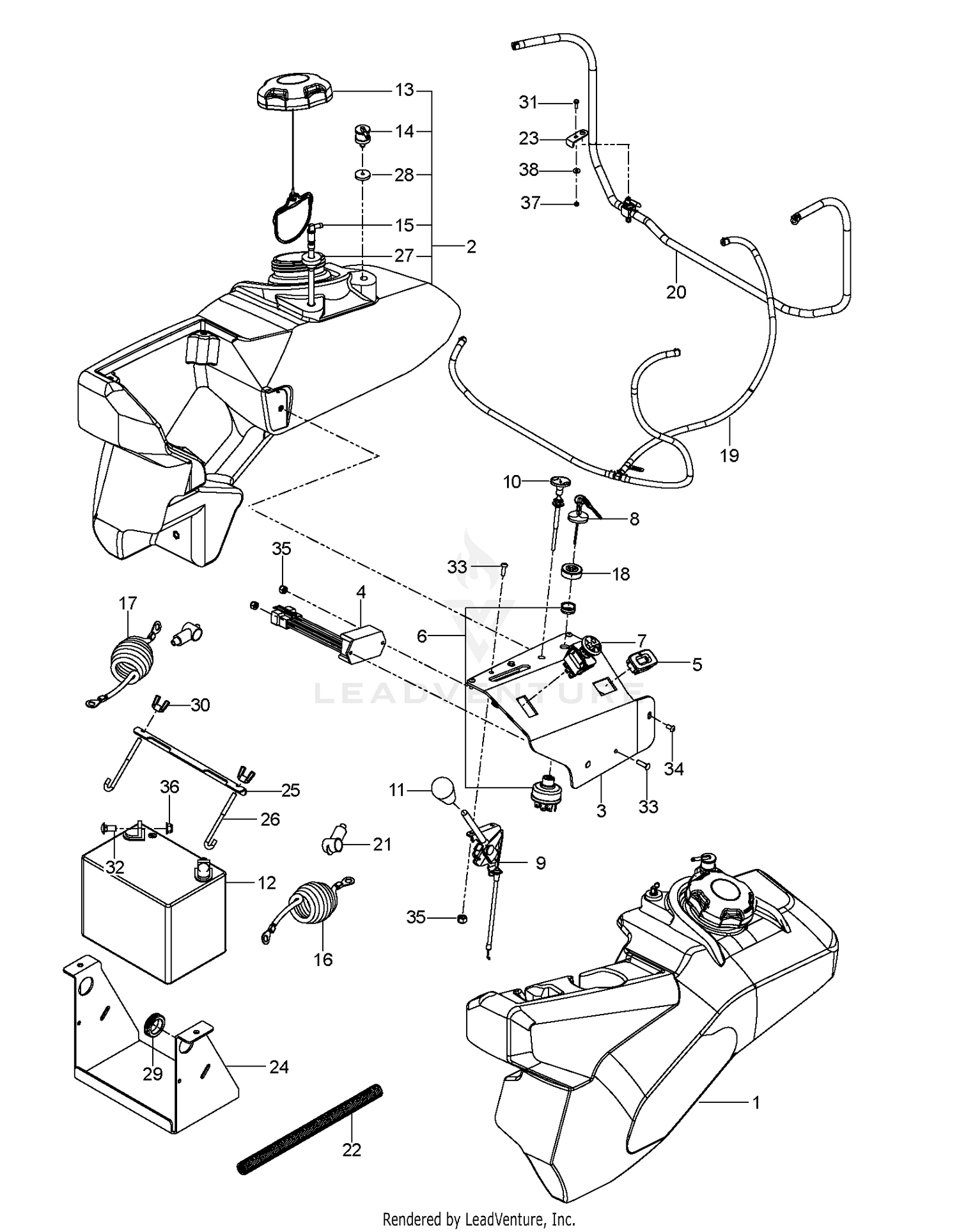

| Ref | Part Number | Description |
|---|
| 1 |
589997313 |
FUEL TANK ASSEMBLY LH EPA COMP This part replaces 589997101. Price: $399.99 |
| 1 |
98-8332 |
KNOB Price: $4.89 |
| 2 |
104-7201 |
NUT-HF Price: $0.69 |
| 2 |
590025903 |
Tanks This part replaces 590025901. Price: $399.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
592979103 |
Panel Controls This part replaces 529280202. Price: $27.99 |
| 4 |
117-8063 |
BOOT-SHIFT Price: $26.52 |
| 4 |
574514001 |
TIMER, SEAT Price: $79.99 |
| 5 |
120-4654 |
SCREW-HHF Price: $0.34 |
| 5 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 6 |
136-5023 |
DECAL-PANEL, CONTROL Price: $41.82 |
| 6 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 7 |
136-5024 |
DECAL-CONSOLE, UPPER Price: $19.38 |
| 7 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 8 |
136-5025 |
DECAL-CONSOLE, MID Price: $15.22 |
| 8 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 9 |
136-5026 |
DECAL-CONSOLE, LOWER Price: $17.77 |
| 9 |
574207001 |
CABLE, THROTTLE, 46" Price: $29.99 |
| 10 |
136-9619-03 |
PANEL-CONTROL Price: $46.08 |
| 10 |
531077202 |
CHOKE CABLE 48IN This part replaces 574206901. Price: $27.99 |
| 11 |
136-9627-03 |
PANEL-STEER Price: $33.99 |
| 11 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 12 |
136-9628 |
COVER-STEER Price: $126.13 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 13 |
136-9634 |
DASH-MOLDED Price: $396.35 |
| 13 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 14 |
136-9635-03 |
PLATE-CONSOLE Price: $35.11 |
| 14 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 15 |
136-9636 |
CONSOLE Price: $263.00 |
| 15 |
525865401 |
FITTING, FUEL Price: $29.99 |
| 16 |
136-9776-03 |
PANEL-SERVICE Price: $33.65 |
| 16 |
522718701 |
CABLE, POSITIVE, 55" Price: $22.99 |
| 17 |
136-9866 |
DECAL-CONSOLE Price: $18.49 |
| 17 |
522710701 |
CABLE, NEG, 55" Price: $29.99 |
| 18 |
136-9867 |
DECAL-CONSOLE Price: $13.10 |
| 18 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 19 |
138-2017 |
DECAL-SHIFTER Price: $10.04 |
| 19 |
587593401 |
HOSE.ASM.VAPOR.LINE.21-30-39 Price: $14.99 |
| 20 |
3231-6 |
SCREW-CARR Price: $2.69 |
| 20 |
577150501 |
ASSEMBLY, FUEL LINE Price: $37.99 |
| 21 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 21 |
539102759 |
INSULATOR Price: $3.99 |
| 22 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 22 |
579579701 |
LOOM SPLIT 5/8, 32" Price: $2.99 |
| 23 |
107069 |
CLIP Price: $1.79 |
| 23 |
587181404 |
BRACKET.VALVE.PNT.BLACK.X431 Price: $2.99 |
| 24 |
510029902 |
BRACKET, BATTERY, BLK Price: $54.99 |
| 25 |
593634404 |
Brackets Price: $3.99 |
| 26 |
510064002 |
Hooks This part replaces 510064001. Price: $2.99 |
| 27 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 28 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 29 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 30 |
539990997 |
WING NUT 1/4 Price: $2.99 |
| 31 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 32 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 33 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 34 |
539114341 |
SCR #10-24 X 3/8 SKT HD BLK OX Price: $3.99 |
| 35 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 36 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 37 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 38 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
