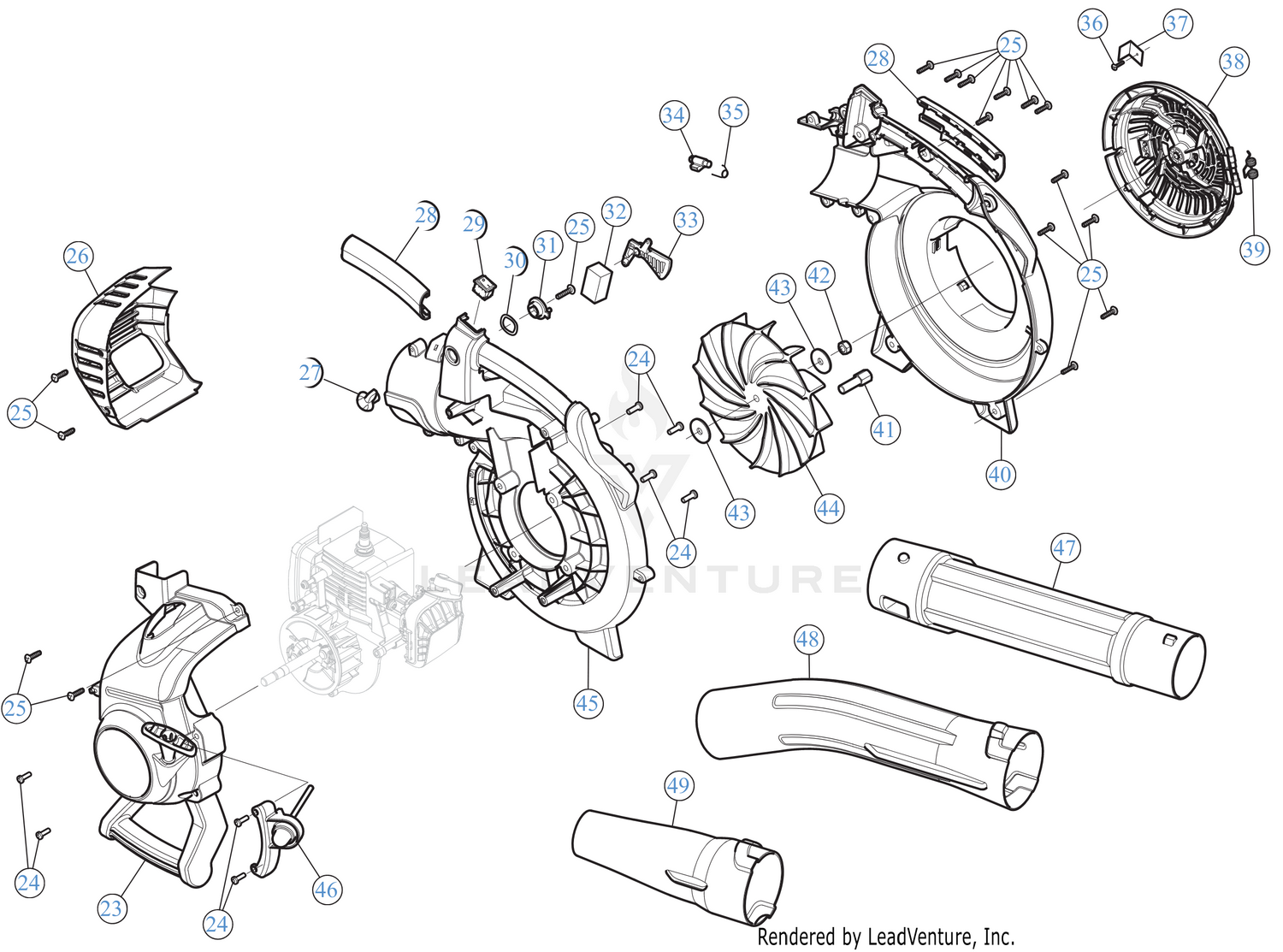

General Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 24 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 25 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 27 | 753-05932 | TRIGGER LOCK OTR Price: $2.48 |
| 28 | 753-05919 | ANDLE GRIP ASSEMBLY Price: $5.48 |
| 29 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 30 | 736-04353 | WAVE WASHER Price: $5.52 |
| 31 | 753-05924 | TRIGGER LOCK INR Price: $2.45 |
| 32 | 753-05254 | AIR FILTER Price: $4.88 |
| 33 | 753-05930 | THROTTLE TRIGGER Price: $1.49 |
| 34 | 753-05926 | LATCH TUBE Price: $2.45 |
| 35 | 753-05939 | SPRING LATCH Price: $2.45 |
| 36 | 1755 | SCREW-10-9 x .50 Price: $3.37 |
| 37 | 753-06696 | DOOR LOCK SC Price: $2.44 |
| 39 | 753-05918 | SPRING Price: $2.45 |
| 40 | 753-06679 | IMPELLER HOUSING OTR Price: $18.41 |
| 41 | 753-06700 | ADAPTER STARTER Price: $4.74 |
| 42 | 912-0237 | HEX NUT CENTER Price: $4.37 |
| 43 | 753-05928 | WASHER FLAT Price: $2.62 |
| 44 | 753-05929 | IMPELLER Price: $11.59 |
| 45 | 753-06693 | IMPELLER HOUSING INR Price: $15.17 |
| 46 | 753-09024 | REMOTE PRIMER BRACKET Price: $4.30 |
| 47 | 753-05936 | UPPER TUBE Price: $16.85 |
| 48 | 731-06576B | CURVED LOWER TUBE Price: $8.61 |
