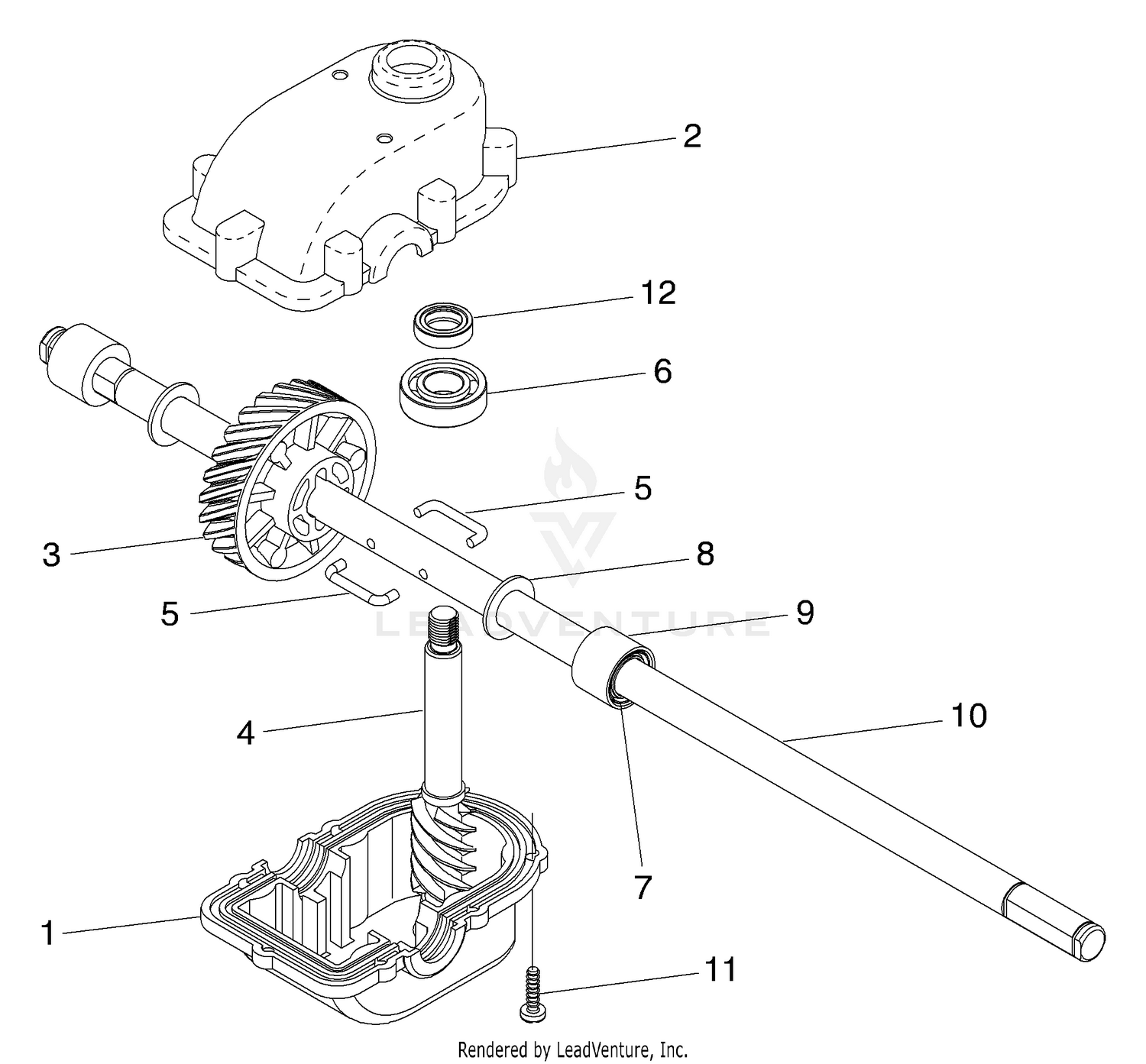

Gear Case Assembly 532188294
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532187530 | Case, Lower Price: $10.99 |
| 2 | 532191245 | Case, Upper Price: $11.99 |
| 3 | 532187532 | Gear, 24 Teeth Price: $9.99 |
| 4 | 532191246 | Shaft, Worm Price: $24.99 |
| 5 | 532183505 | Wireform Price: $2.99 |
| 6 | 532183506 | Bearing, Ball Price: $5.99 |
| 7 | 532183508 | Seal, Output Shaft Price: $3.99 |
| 8 | 532183509 | Washer Price: $3.99 |
| 9 | 532183511 | Bushing Price: $2.99 |
| 10 | 532191247 | Shaft, Output Price: $41.99 |
| 11 | 532183513 | Screw Price: $2.99 |
| 12 | 532183514 | Seal, Worm Shaft Price: $4.99 |
