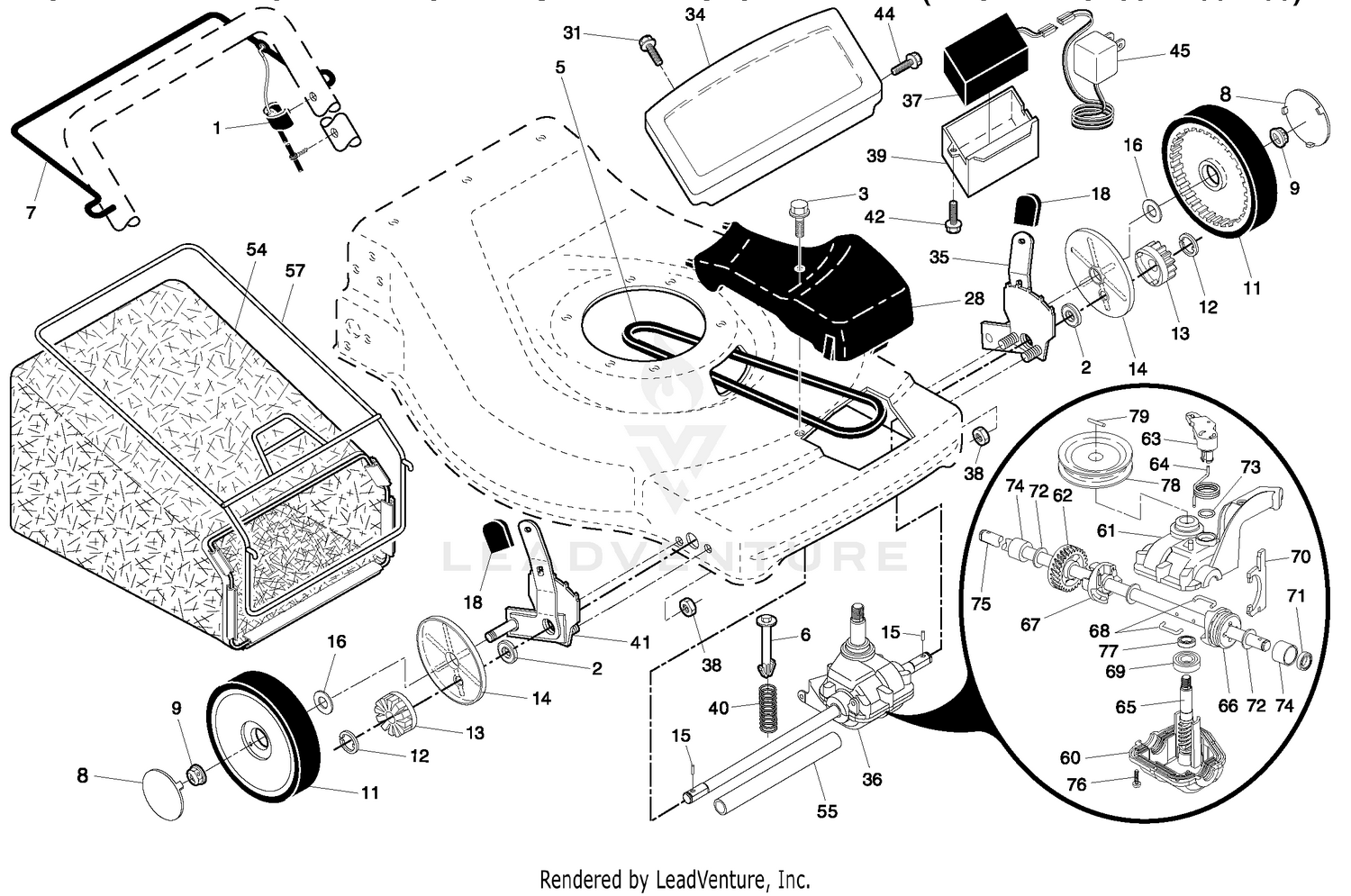

| Ref | Part Number | Description |
|---|
| 1 |
83-1050 |
SPACER Price: $3.26 |
| 2 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 3 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 3 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 4 |
98-4539-03 |
BRACKET-ENGINE MOUNT, LH Price: $179.96 |
| 5 |
146527 |
V-Belt Price: Call Us |
| 5 |
98-4543-03 |
BRACKET-ENGINE MOUNT, RH Price: $180.69 |
| 6 |
150495 |
Retainer, Spring Price: Call Us |
| 6 |
98-9749 |
PLATE-THROTTLE Price: $29.11 |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 8 |
407793X421 |
Hubcap Price: Call Us |
| 9 |
83923 |
Locknut, Hex Price: Call Us |
| 9 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
180775 |
Wheel & Tire Assembly, Front Price: Call Us |
| 11 |
98-4513-03 |
BRACKET-ENGINE, REAR Price: $78.69 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
93-0095-03 |
BRACKET-ENGINE, FRONT Price: $111.93 |
| 13 |
3213-2 |
SCREW-HH Price: $1.90 |
| 13 |
403849 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 15 |
191017 |
Pawl, Drive Price: Call Us |
| 15 |
98-9322 |
SCREW-HSH Price: $4.89 |
| 16 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
98-4598 |
CABLE-BATTERY, NEGATIVE Price: $69.78 |
| 18 |
115-8009 |
KIT-ENGINE DSL This part replaces 106-7778. Price: $12,424.95 |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 21 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 22 |
48-7890 |
NUT-HEX Price: $0.25 |
| 23 |
98-4594 |
CLAMP-RETAINER Price: $15.98 |
| 24 |
32128-36 |
NUT-HF Price: $1.56 |
| 25 |
98-4515-03 |
BRACKET-REAR ENGINE, LH Price: $62.07 |
| 26 |
98-4514-03 |
BRACKET-REAR ENGINE, RH Price: $55.86 |
| 27 |
323-12 |
SCREW-HH Price: $1.14 |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 29 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 30 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 31 |
141841 |
Screw, Trimplate Price: Call Us |
| 31 |
43-0090 |
SCREW-HH Price: $8.05 |
| 32 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 34 |
186153 |
Trimplate Price: Call Us |
| 36 |
199206 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
189589 |
Battery Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
186237 |
Battery Box Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 42 |
17411308 |
Screw, Battery Box Price: Call Us |
| 44 |
175551 |
Screw, Trimplate Price: Call Us |
| 45 |
190097 |
Charger, Battery Price: Call Us |
| 54 |
412219 |
Grassbag Assembly Price: Call Us |
| 55 |
86012 |
Driveshaft Cover Price: Call Us |
| 57 |
407454 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
183502 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196613 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
199852 |
Pulley, Drive Price: Call Us |
