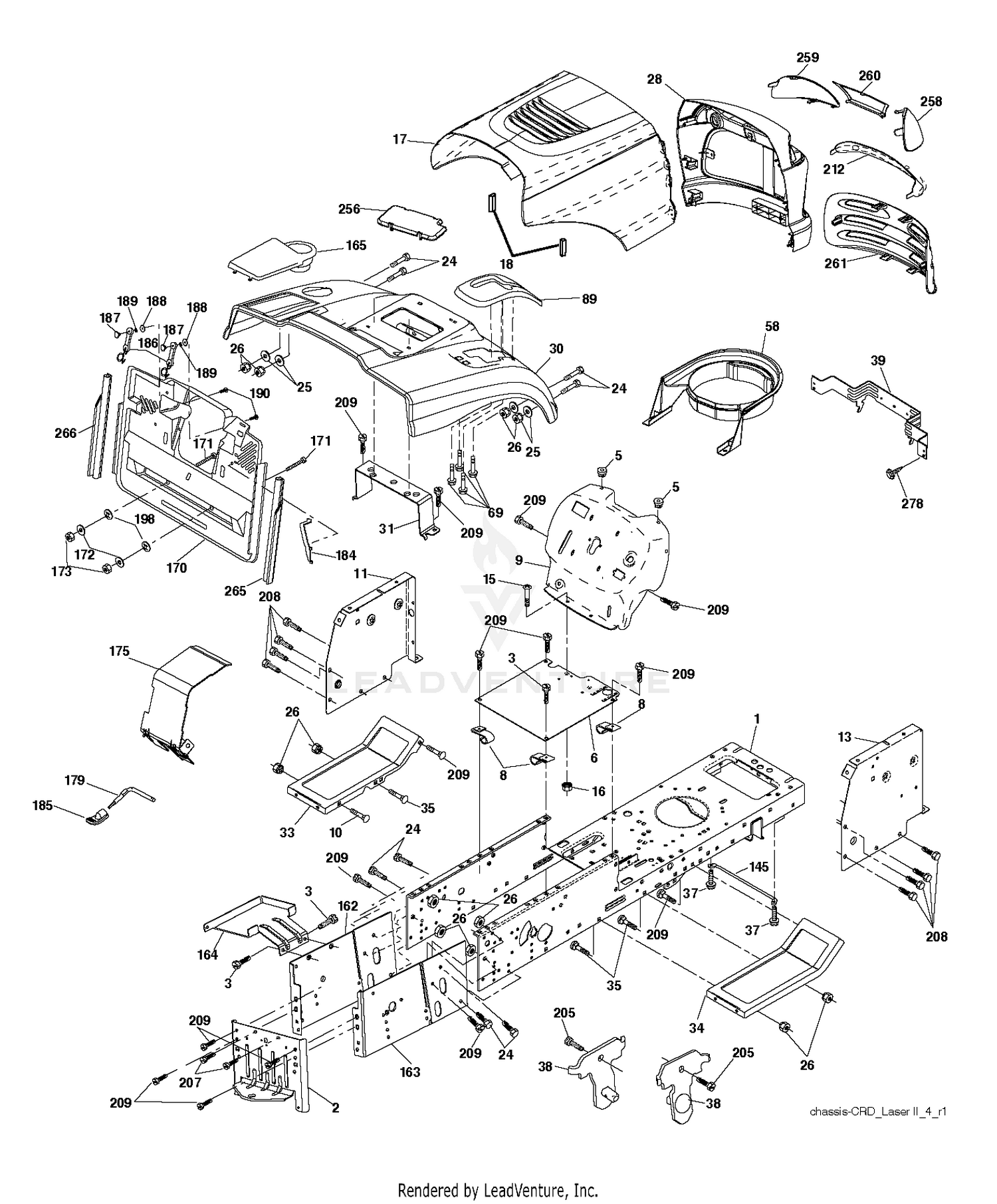

| Ref | Part Number | Description |
|---|
| 1 |
110-4817 |
KIT - AXLE HOUSING This part replaces 95-7531. Price: $657.17 |
| 1 |
532174620 |
CHASSIS Price: $93.99 |
| 2 |
532180384 |
Drawbar Price: $11.99 |
| 2 |
99-7535 |
PLUG Price: $8.15 |
| 3 |
817000612 |
Screw Hex Wsh Thdr 3/8-16 x 3/4 This part replaces 817060612. Price: $2.99 |
| 3 |
99-7536 |
WASHER-SEAL Price: $2.58 |
| 4 |
95-7527 |
GEAR-BEVEL, 17 TOOTH Price: $125.54 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 5 |
99-7532 |
BEARING-ROLLER, TAPER Price: $45.81 |
| 6 |
100-2560 |
COVER Price: $28.35 |
| 6 |
532184419 |
Saddle Price: $8.99 |
| 7 |
106-1070 |
O-RING This part replaces 100-2561. Price: $9.07 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $2.99 |
| 8 |
99-7589 |
PLUG Price: $3.73 |
| 9 |
532194688 |
Price: $78.99 |
| 9 |
99-7590 |
WASHER-SEAL Price: $2.94 |
| 10 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $8.99 |
| 13 |
532172105 |
PANEL Price: $14.99 |
| 15 |
874180512 |
SCREW Price: $3.99 |
| 16 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 17 |
532182716 |
Price: $101.99 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $3.99 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 28 |
532431522 |
Price: $124.99 |
| 30 |
532197364 |
Fender Price: $101.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $4.99 |
| 33 |
532182507 |
FOOTREST.LH Price: $17.99 |
| 34 |
532182508 |
FOOTREST.RH Price: $17.99 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 37 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 38 |
532181748 |
Bracket Asm Pivot Mower Rear Price: $1.99 |
| 39 |
532407807 |
BRACKET PIVOT Price: $14.99 |
| 58 |
532184461 |
DUCT.INTAKE.AIR.KAW Price: $17.99 |
| 69 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 89 |
532197366 |
Console Crd Auto Price: $8.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD Price: $8.99 |
| 162 |
532180382 |
Bracket Exten Chassis Lh CRD Price: $13.99 |
| 163 |
532180383 |
Bracket Exten Chassis Rh CRD Price: $13.99 |
| 164 |
532165605 |
SUPPORT Price: $51.99 |
| 165 |
532181356 |
Cover Battery Price: $4.99 |
| 170 |
532199489 |
Price: Call Us |
| 171 |
872140620 |
BOLT Price: $3.99 |
| 172 |
819132012 |
Washer 13/32 X 1-1/4 X 12 Ga This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT ** Price: $3.99 |
| 175 |
532188203 |
Door Trap Price: $5.99 |
| 179 |
532188202 |
Rod Pivot FBI CRD Price: $2.99 |
| 184 |
532174662 |
Bracket Actuator Bagger CRD Price: $2.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
532160793 |
LATCH ASSY Price: $7.99 |
| 187 |
532002029 |
NUT.WELD.#10-24 This part replaces 532125004. Price: $2.69 |
| 188 |
819061216 |
WASHER Price: $2.69 |
| 189 |
810071000 |
LOCKWASHER Price: $2.99 |
| 190 |
871081010 |
SCREW Price: $3.49 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
817490608 |
SCREW LT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 212 |
532184248 |
Price: $4.99 |
| 256 |
532181361 |
Cover Fender Rack Price: $3.99 |
| 258 |
532190507 |
Price: $6.99 |
| 259 |
532190508 |
Price: $5.99 |
| 260 |
532408382 |
Price: Call Us |
| 261 |
532408395 |
Price: Call Us |
| 265 |
532185704 |
Seal Side RH Bagger Price: $8.99 |
| 266 |
532185703 |
Seal Side LH Bagger Price: $8.99 |
| 278 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
