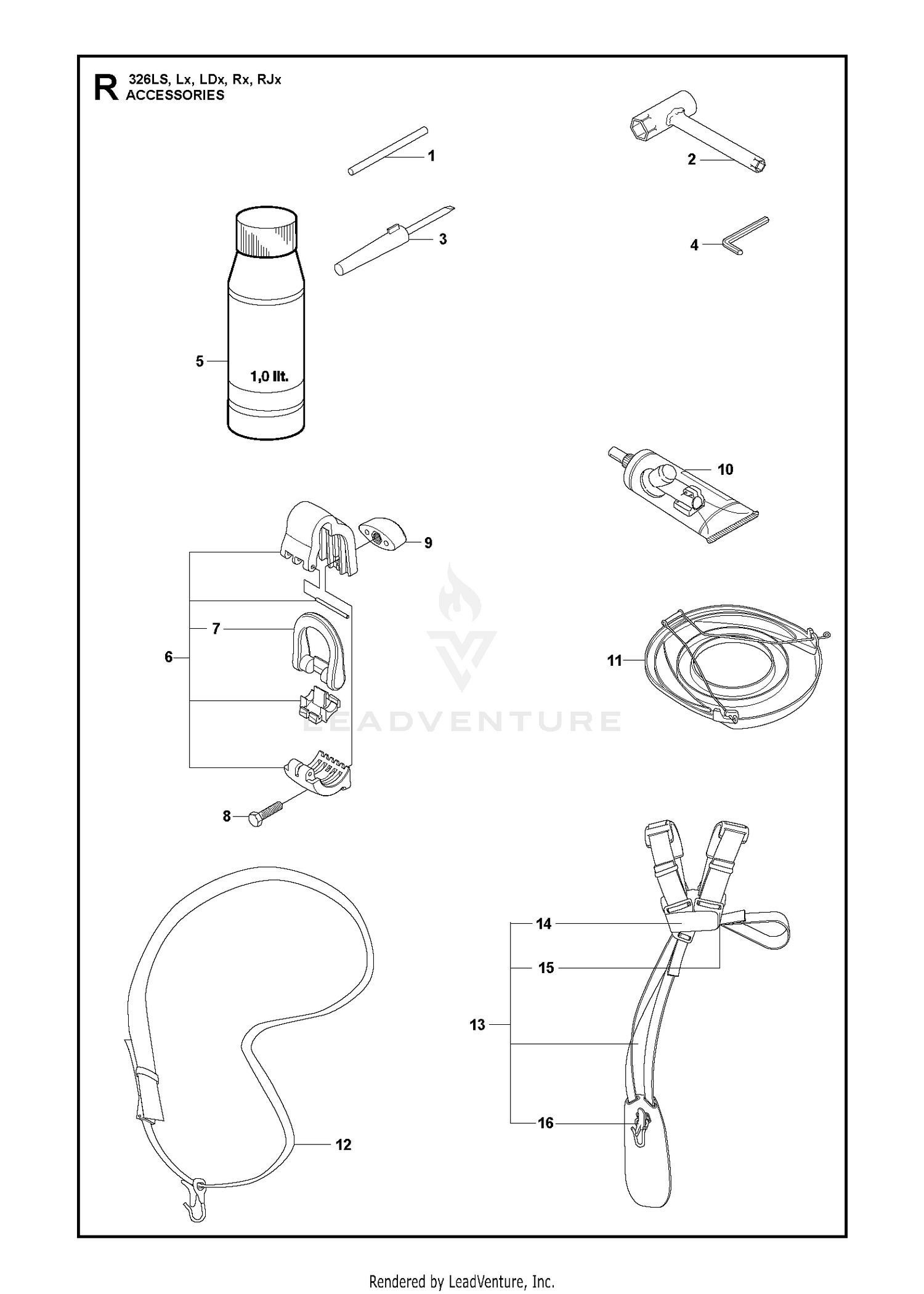

| Ref | Part Number | Description |
|---|
| 1 |
322-1 |
SCREW-HH Price: $0.22 |
| 1 |
502285901 |
LOCKING PIN Price: $4.99 |
| 2 |
14-5229 |
DISCONTINUED Price: Call Us |
| 2 |
531222001 |
COMBINATION WRENCH COMBI TOOL This part replaces 502114602. Price: $5.99 |
| 3 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 3 |
501600203 |
SCREWDRIVER Price: $2.99 |
| 4 |
502215801 |
L-KEY WRENCH Price: $2.99 |
| 4 |
80-9150-03 |
SUPPORT-MUFFLER SHIELD This part replaces 80-9150. Price: $34.51 |
| 5 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 6 |
14-5249 |
SHIELD-ENGINE, RH Price: $74.10 |
| 6 |
537353601 |
HANGING BRACKET Price: $11.99 |
| 7 |
14-5239 |
SHIELD-ENGINE, LH Price: $65.23 |
| 7 |
537350101 |
HOOK Price: $6.99 |
| 8 |
323-6 |
SCREW-HH Price: $0.66 |
| 8 |
725233151 |
SCREW M6S 5X20 Price: $2.99 |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 9 |
537130402 |
KNOB Price: $4.99 |
| 10 |
240-14 |
BUMPER-RUBBER Price: $13.84 |
| 10 |
503976401 |
BEVEL GEAR GREASE Price: $14.99 |
| 11 |
80-7700-03 |
BRACKET-SUPPORT This part replaces 80-7700. Price: $20.20 |
| 12 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 12 |
537216202 |
Harness - Diagonal with sign This part replaces 537216201. Price: $8.99 |
| 13 |
3217-5 |
NUT-HEX Price: $0.25 |
| 13 |
537216301 |
HARNESS DUO Price: $49.99 |
| 14 |
322-4 |
SCREW-HH Price: $0.35 |
| 14 |
503734102 |
STRAP Price: $11.99 |
| 15 |
503734101 |
RIGHT FRONT HARNESS PC Price: $3.33 |
| 15 |
80-7680-03 |
SUPPORT-MUFFLER This part replaces 80-7680. Price: $19.38 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 19 |
94-6510 |
DISCONTINUED Price: Call Us |
| 20 |
94-6491 |
DISCONTINUED Price: Call Us |
| 21 |
110-3258 |
HOSE-FUEL This part replaces 94-6616. Price: $23.35 |
| 22 |
86-8470 |
CABLE-BATTERY, NEGATIVE Price: $29.03 |
| 23 |
71-5960 |
FUEL FILTER Price: $48.99 |
| 24 |
32128-21 |
NUT-HF Price: $0.39 |
| 25 |
108-1260 |
BATTERY-DRY This part replaces 80-6791. Price: $186.64 |
| 26 |
3269-32 |
RIVET-POP Price: $0.25 |
| 27 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 28 |
323-19 |
SCREW-HH Price: $1.70 |
| 29 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 32 |
323-9 |
SCREW-HH Price: $1.29 |
| 33 |
80-5650 |
MUFFLER Price: $783.15 |
| 34 |
80-8290 |
PLATE-SURFACE, HOT Price: $5.06 |
| 35 |
80-9350 |
PLATE-HOT SURFACE Price: $13.39 |
| 36 |
82-1520 |
GASKET-EXHAUST Price: $15.99 |
| 37 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 38 |
52-5980 |
SPACER-PIVOT ARM, REAR Price: $21.44 |
| 39 |
94-6513 |
DISCONTINUED Price: Call Us |
| 40 |
94-6512 |
DECAL - QUICK REF. Price: $30.82 |
| 41 |
94-6514-03 |
BATTERY BASE ASM This part replaces 94-6514. Price: $145.31 |
| 42 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 44 |
32148-9 |
NUT-CLINCH Price: $2.65 |
