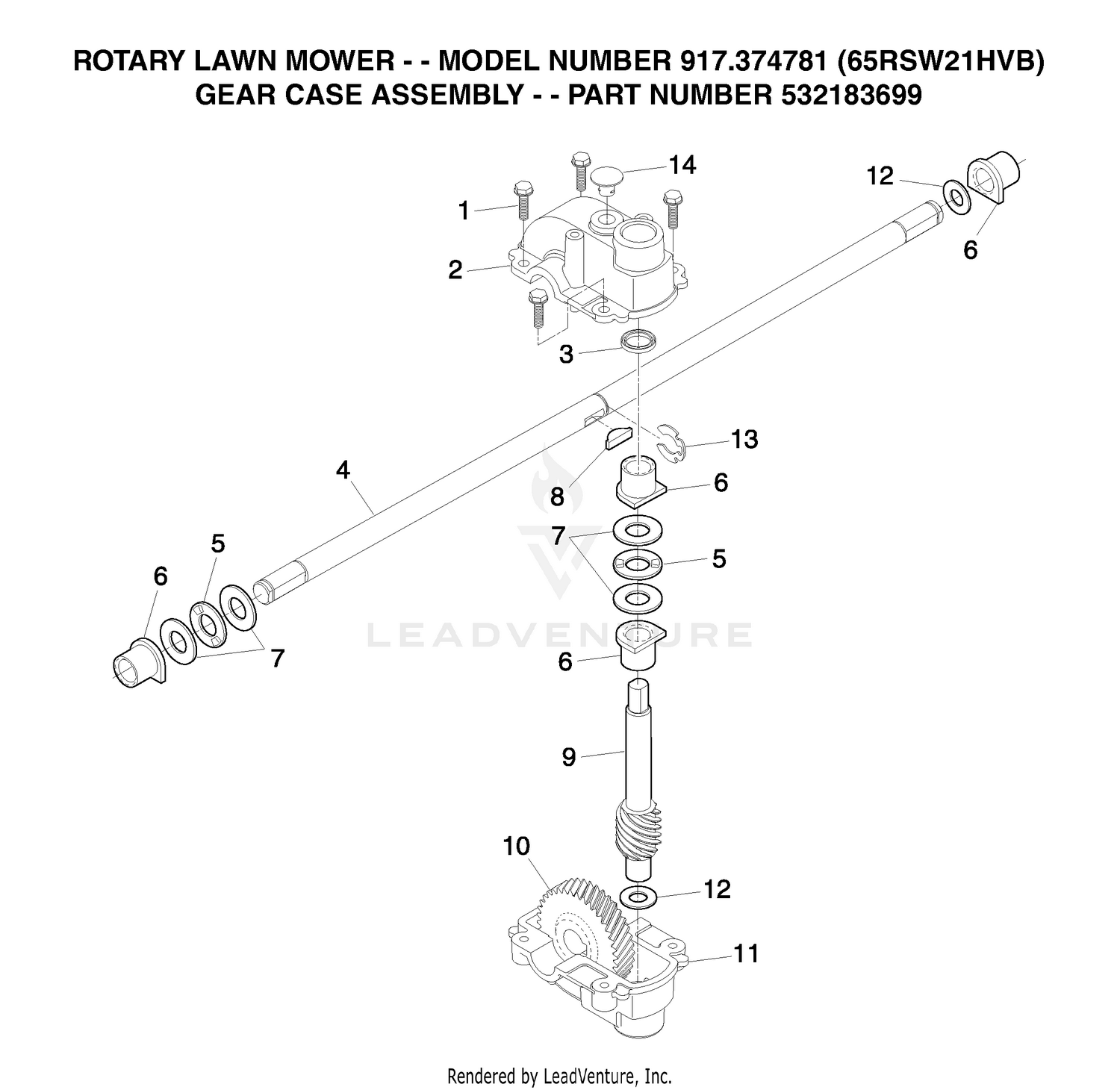

GEAR CASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 817541011 | Screw, Hex Washer Head #10-24 x .668 Price: $9.47 |
| 3 | 532057072 | SEAL Price: $4.99 |
| 4 | 532183908 | SHAFT.DRIVE.HI-VAC.EZ Price: $32.99 |
| 5 | 532160818 | BEARING, NEEDLE, THRUST Price: $4.99 |
| 6 | 532077881 | BEARING Price: $24.99 |
| 7 | 532160817 | WASHER, THRUST Price: $3.99 |
| 8 | 532850848 | HI PRO KEY Price: $4.99 |
| 9 | 532184134 | SHAFT.WORM.HI-VAC Price: $13.99 |
| 10 | 532160679 | GEAR, HELICAL Price: $27.99 |
| 11 | 532160676 | KIT.GEARCASE.HALVES.RWGD.21" This part replaces 532160673. Price: $14.99 |
| 12 | 532057079 | THRUST WASHER Price: $1.99 |
| 13 | 812000039 | KLIP RING Price: $4.99 |
| 14 | 532086447 | PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 532414975 | KIT.TRANSMISION.REPLACE.183699 | This part replaces 532184208. Price: $99.99 532414975 |
