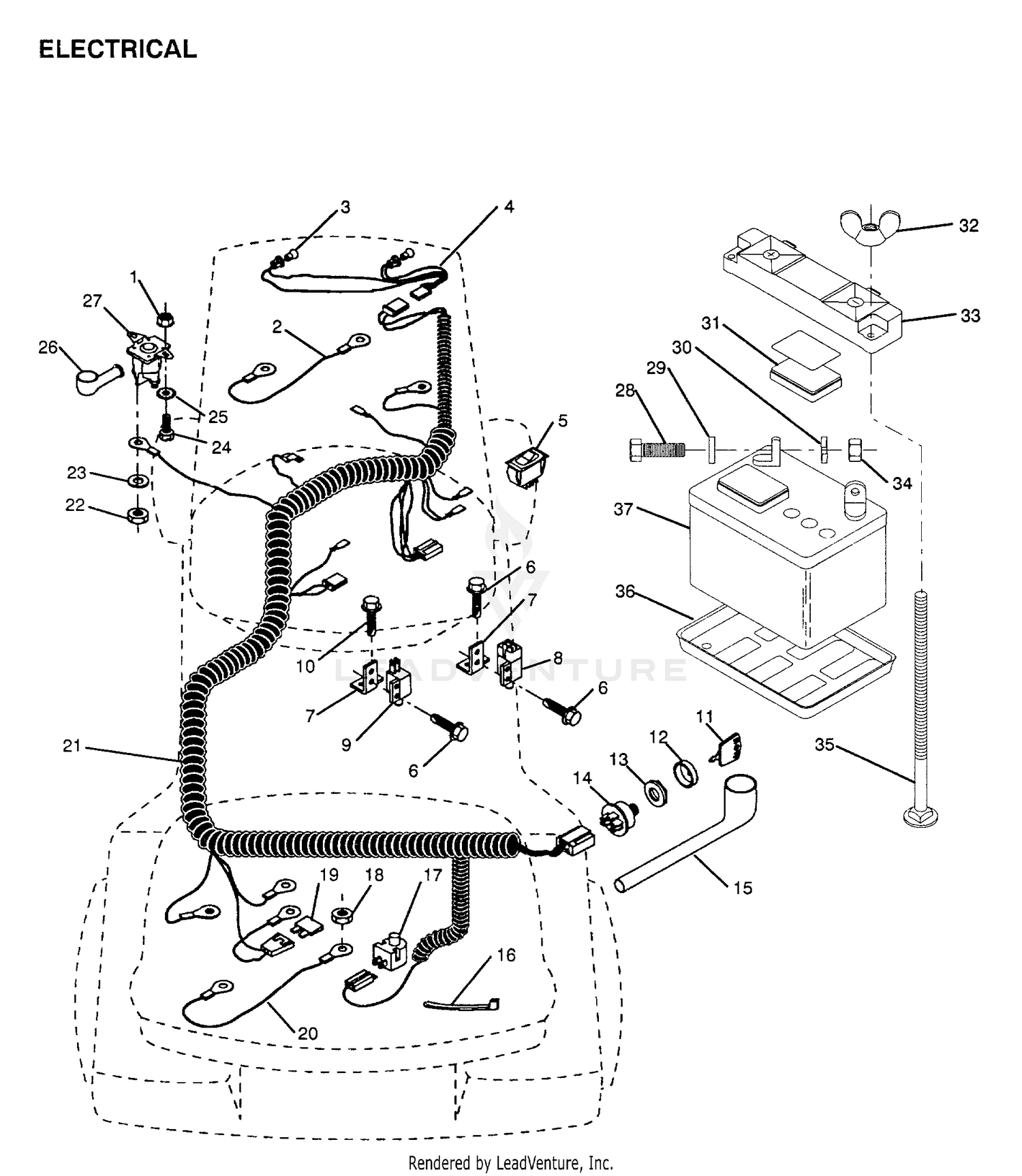

| Ref | Part Number | Description |
|---|
| 1 |
73510400 |
NUT Price: Call Us |
| 1 |
94-2694-01 |
COVER-RH Price: $46.16 |
| 2 |
105002X |
CABLE LTV Price: Call Us |
| 2 |
95-5981-01 |
FRAME ASM Price: $3,151.67 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
7662J |
SUB= 4152J Price: Call Us |
| 4 |
127441X |
SUB= 136850 Price: Call Us |
| 4 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 5 |
110712X |
SWITCH LT Price: Call Us |
| 5 |
28-4210 |
SOLENOID Price: $63.91 |
| 6 |
17021008 |
SCREW Price: Call Us |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 7 |
108236X |
BRACKET LT Price: Call Us |
| 7 |
3219-14 |
NUT-HEX Price: $0.25 |
| 8 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 8 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 9 |
104445X |
SWITCH-INTER. GT Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
17211008 |
SCREW Price: Call Us |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
122147X |
KEY Price: Call Us |
| 11 |
3217-5 |
NUT-HEX Price: $0.25 |
| 12 |
123620X |
SUB= 141226 Price: Call Us |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 13 |
100-6434 |
ROD-HOLD DOWN, BATTERY Price: $10.10 |
| 13 |
124211X |
NUT IGNITION Price: Call Us |
| 14 |
32103-22 |
NUT-WING Price: $2.39 |
| 14 |
4406R |
SUB= STD365402 Price: Call Us |
| 15 |
104-8162 |
BATTERY-DRY Price: $114.99 |
| 15 |
124083X |
COVER IGNITION SW Price: Call Us |
| 16 |
100-6435 |
POST-BATTERY Price: $15.91 |
| 16 |
7192 |
J WIRE TIE Price: Call Us 7192 J |
| 17 |
121305X |
SWITCH SEAT Price: Call Us |
| 17 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 18 |
73510500 |
NUT Price: Call Us |
| 18 |
83-0840-01 |
SHIELD-COVER, VALVE Price: $41.96 |
| 19 |
108824X |
FUSE HYT Price: Call Us |
| 20 |
105-9751 |
DECAL Price: $19.23 |
| 20 |
596J |
SUB= 2955J Price: Call Us |
| 22 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 22 |
73350400 |
NUT Price: Call Us |
| 23 |
10090400 |
SUB= 10040400 Price: Call Us |
| 23 |
95-7119 |
HOSE-LINE, RETURN Price: $80.05 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 24 |
74780408 |
BOLT Price: Call Us |
| 25 |
11050400 |
LOCKWASHER Price: Call Us |
| 25 |
95-4356 |
FITTING This part replaces 353-563. Price: $67.28 |
| 26 |
719J |
SUB= 154336 Price: Call Us |
| 26 |
74-3600 |
DISCONTINUED Price: Call Us |
| 27 |
109081X |
SUB= 146154 Price: Call Us |
| 27 |
68-5880 |
HOSE-HYD Price: $112.20 |
| 28 |
353-564 |
FITTING-90 DEG Price: $167.47 |
| 28 |
74760412 |
BOLT LT Price: Call Us |
| 29 |
19091016 |
WASHER Price: Call Us |
| 29 |
27-2380 |
SPACER Price: $11.14 |
| 30 |
10040400 |
LOCKWASHER Price: Call Us |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
322-4 |
SCREW-HH Price: $0.35 |
| 32 |
123198X |
SUB= 146525 Price: Call Us |
| 32 |
83-0830-01 |
PANEL-CONTROL, UPPER Price: $140.31 |
| 33 |
102476X |
SUB= 150109 Price: Call Us |
| 33 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 34 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 34 |
73220400 |
SUB= 50675 Price: Call Us |
| 35 |
237-143 |
O-RING Price: $1.34 |
| 35 |
72240460 |
BOLT Price: Call Us |
| 36 |
93-8065 |
DECAL-TRACTION Price: $6.71 |
| 37 |
121265X |
SUB= 123899X Price: Call Us |
| 37 |
67-1300 |
DECAL Price: $29.99 |
| 38 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 41 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 42 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 43 |
104-2064-03 |
BATTERY BASE ASM Price: $117.27 |
| 44 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 46 |
106948 |
TRAY-BATTERY Price: $10.99 |
| 101539X |
SHEET |
INSTR LT Price: Call Us 101539X |
| 127662X |
OPERATORS |
MANUAL FRENCH Price: Call Us 127662X |
| 129500 |
MANUAL |
PARTS E/F Price: Call Us 129500 |
