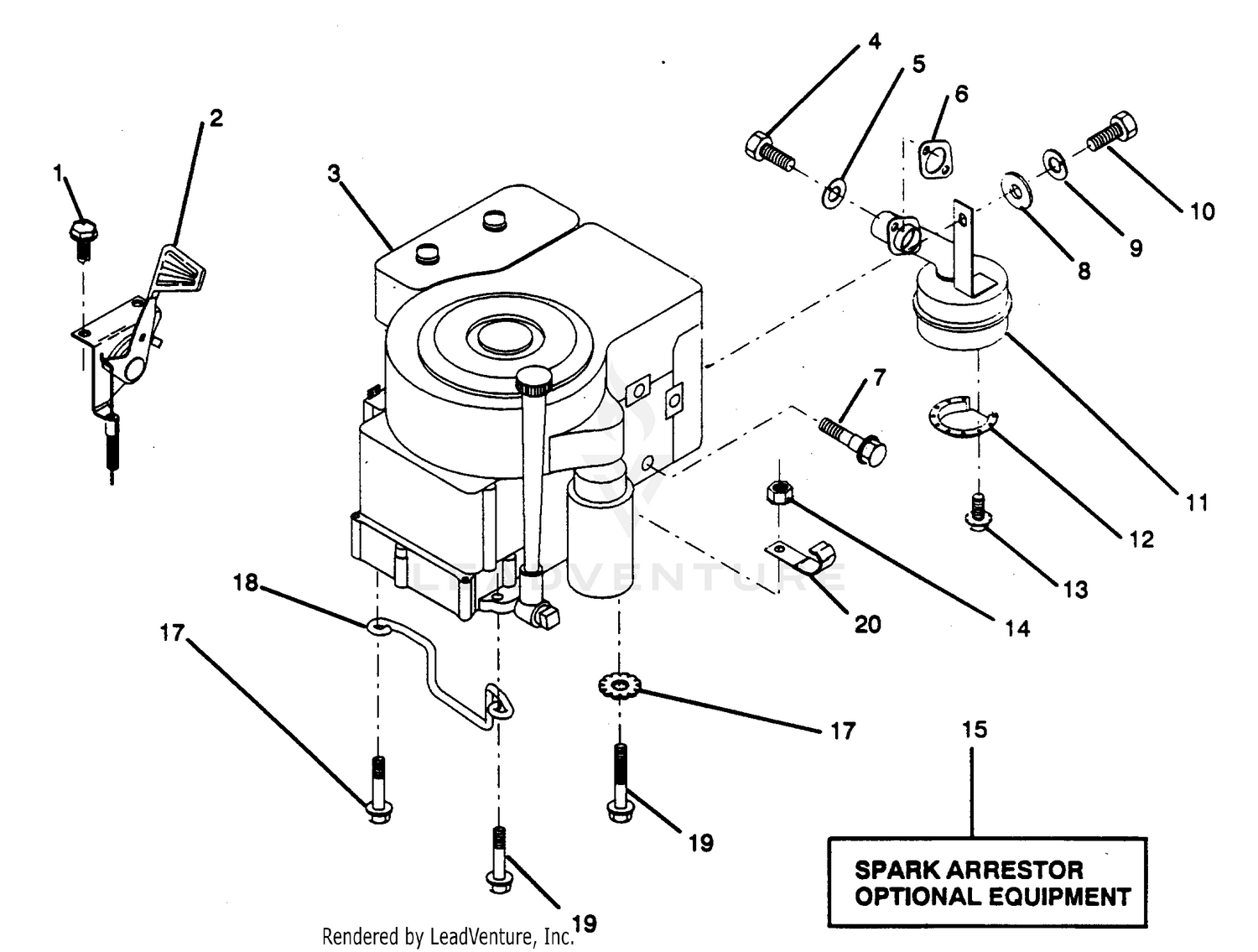

| Ref | Part Number | Description |
|---|
| 1 |
114-5422 |
ROLLER-SHOULDER, PLASTIC Price: $525.86 |
| 1 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 2 |
114-5403 |
SHAFT-ROLLER, FRONT Price: $82.00 |
| 2 |
532132752 |
Control, Throttle (AYP part number) This part replaces 532122014. Price: $17.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
532124136 |
Engine, Briggs and Stratton, Model Number 281707, Type Number 0412-01 Price: Call Us |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
532192334 |
SCREW.SOCKET HD.5/16-1 This part replaces 871070512. Price: $2.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
810040500 |
Washer, Lock Heavy Helical Spring 5/16 (AYP part number) Price: $2.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING Price: $24.46 |
| 6 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532125593. Price: $7.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
532121094 |
Bolt, Shoulder 5/16 (AYP part number) Price: $2.99 |
| 8 |
531003379 |
WASHER This part replaces 819101216. Price: $2.99 |
| 9 |
810040400 |
Washer, Lock Heavy Helical Spring 1/4 (AYP part number) Price: $3.99 |
| 10 |
874780412 |
Bolt, Fin. Hex 1/4-20 UNC x 3/4 (AYP part number) Price: $2.99 |
| 11 |
532124097 |
Muffler (AYP part number) Price: $58.82 |
| 12 |
532101326 |
Deflector, Muffler (AYP part number) Price: $4.01 |
| 13 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 14 |
873510600 |
Nut, Keps 3/8-16 UNC (AYP part number) Price: $3.99 |
| 15 |
532121851 |
Kit, Spark Arrestor (optional) (AYP part number) Price: $26.83 |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 18 |
532126636 |
Keeper, Ground Drive Belt (AYP part number) Price: $5.99 |
| 19 |
817490632 |
Screw, Hex. Wsh Thdrol 3/8 - 16 x 2 (AYP part number) Price: $2.99 |
| 20 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
