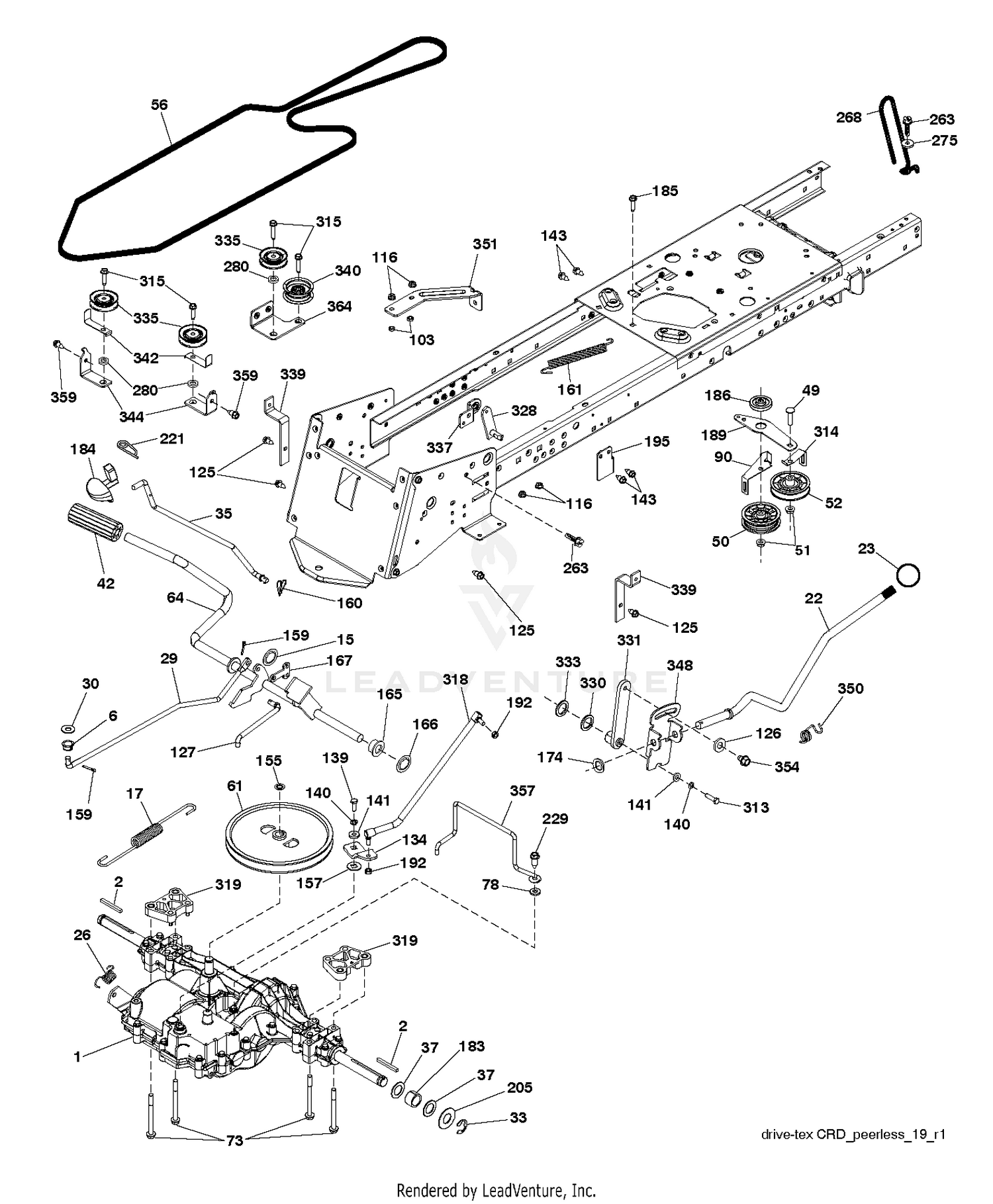

| Ref | Part Number | Description |
|---|
| 1 |
47-3650 |
CHAIN-LIFT, NO. 2 AND 3 Price: $119.48 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 2 |
8-0280 |
DISCONTINUED Price: Call Us |
| 3 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 4 |
51-0850-01 |
SUPPORT-PULLEY This part replaces 51-0850. Price: $306.47 |
| 5 |
325-17 |
SCREW-HH Price: $2.90 |
| 6 |
47-3930-01 |
LOCKUP BRACKET ASM This part replaces 47-3930. Price: $270.92 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 7 |
32128-23 |
NUT-HF Price: $1.51 |
| 8 |
47-3640-01 |
CYLINDER REST ASM This part replaces 47-3640. Price: $44.42 |
| 9 |
3290-216 |
WASHER Price: $3.83 |
| 10 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 11 |
47-3870-01 |
RH CHANNEL ASM This part replaces 47-3870. Price: $235.39 |
| 12 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 13 |
26-8590 |
PIN-CYLINDER Price: $23.00 |
| 14 |
237-79 |
O-RING Price: $5.46 |
| 15 |
353-537 |
FITTING-ELBOW, 90 DEG Price: $12.91 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
115-4949-01 |
HYDRAULIC CYLINDER ASM (14.00 STROKE) This part replaces 47-3720. Price: $1,376.05 |
| 17 |
20-4390 |
SPACER Price: $12.54 |
| 17 |
583552401 |
SPRING.BRAKE.GEAR.CRD.TEX This part replaces 532440867. Price: $6.99 |
| 18 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 19 |
42-3550-01 |
COVER-MOUNT, CYLINDER This part replaces 42-3550. Price: $108.41 |
| 20 |
3-0144 |
SHAFT Price: $53.89 |
| 21 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 22 |
47-3860-01 |
LH CHANNEL ASM This part replaces 47-3860. Price: $215.68 |
| 22 |
583568701 |
ROD.SHIFT.FENDER.K46.CRD.TEX This part replaces 532443246. Price: $24.99 |
| 23 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 23 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 24 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 25 |
47-3010-01 |
TRAILER ASM This part replaces 47-3010. Price: $3,956.22 |
| 26 |
325-6 |
SCREW-HH Price: $1.42 |
| 26 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 27 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 28 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
| 29 |
532437016 |
ROD.BRAKE.GEAR.CRD.TEX Price: $9.99 |
| 30 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 30 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 31 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 32 |
47-3230-01 |
NO. 1 LIFT ARM ASM This part replaces 47-3230. Price: $907.15 |
| 33 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 35 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 35 |
596874801 |
Rods This part replaces 532401031. Price: $6.99 |
| 36 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 37 |
47-3660 |
CHAIN-LIFT, NO. 1 Price: $197.71 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
5-2942 |
SHACKLE Price: $16.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
583508901 |
V-BELT.TEX.CRD.GEAR This part replaces 532436384. Price: $64.99 |
| 61 |
584450701 |
PULLEY TRANSAXLE.7" This part replaces 532165999. Price: $49.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 73 |
583613201 |
BOLT.FLANGED This part replaces 874490556. Price: $3.99 |
| 78 |
819111212 |
WASHER Price: $4.99 |
| 90 |
583570001 |
KEEPER.BELT.CLUTCHING.TEX.CRD This part replaces 532443605. Price: $4.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 126 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 127 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 134 |
532145090 |
ARM SHIFT Price: $6.99 |
| 139 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 140 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 141 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 143 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 155 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 157 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 189 |
583492701 |
BELLCRANK.GROUND.DRIVE.CRD.TEX This part replaces 532433611. Price: $5.99 |
| 192 |
532150360 |
NUT LOCK CENTER 1/4 -28 FNTHD Price: $2.99 |
| 195 |
580456901 |
BRACKET.ROD.BRAKE Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 229 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 268 |
583122001 |
GUARD.MUFFLER This part replaces 532182402. Price: $5.99 |
| 275 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 280 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 313 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 314 |
583575801 |
KEEPER.BELT This part replaces 532444713. Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 318 |
593974401 |
Links This part replaces 532437022. Price: $24.99 |
| 319 |
583512001 |
SPACER.TRANSAXLE.TEX.CRD This part replaces 532436794. Price: $24.99 |
| 328 |
583524801 |
SHAFT.SUBASM.SHIFT.FRONT.CRD This part replaces 532437958. Price: $9.99 |
| 330 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 331 |
583570101 |
HUB.SHIFT.FENDER.TEX.CRD This part replaces 532443606. Price: $17.99 |
| 333 |
532170868 |
WASHER.WAVE.SPRING Price: $6.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 337 |
583507801 |
BRACKET.SUPT.SHIFT.CRD.TEX This part replaces 532435937. Price: $6.99 |
| 339 |
583512601 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532436867. Price: $2.99 |
| 340 |
583512101 |
IDLER.FLAT.2.25.INCH This part replaces 532436812. Price: $27.99 |
| 342 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 344 |
583506401 |
BRACKET.IDLER.CRD.TEX This part replaces 532435645. Price: $4.99 |
| 348 |
583570201 |
ARM.CLEVIS.ROD.SHIFT.TEX.CRD This part replaces 532443607. Price: $7.99 |
| 350 |
583576901 |
SPRING.TORSION.SHIFT.TXCRDI&II This part replaces 532445020. Price: $2.99 |
| 351 |
583515101 |
BRACKET.97.CRD.DECK.SWAY This part replaces 532436998. Price: $7.99 |
| 354 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 357 |
583555901 |
KEEPER-BELT.TRANS.TEX-CRD.GEAR This part replaces 532441338. Price: $12.99 |
| 359 |
596564002 |
Screws This part replaces 817490610. Price: $2.99 |
| 364 |
583567401 |
BRACKET.IDLER.CRD.TEX This part replaces 532443032. Price: $7.99 |
