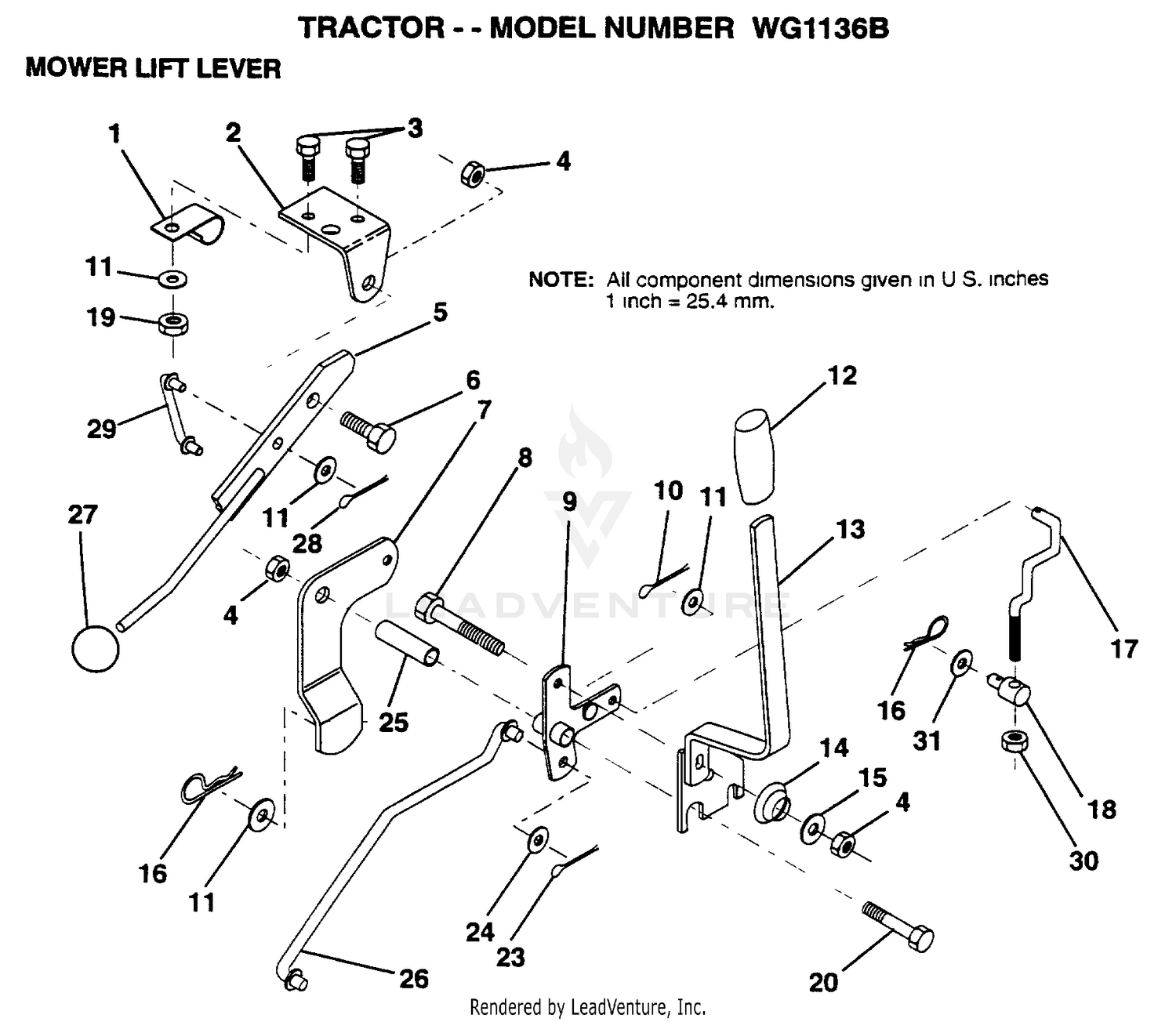

| Ref | Part Number | Description |
|---|
| 1 |
83-1050 |
SPACER Price: $3.26 |
| 2 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 2 |
122018X |
BRKT CLUTCH Price: Call Us |
| 3 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 3 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 4 |
98-4539-03 |
BRACKET-ENGINE MOUNT, LH Price: $179.96 |
| 5 |
145187 |
LEVER.ASM.CLUTCH Price: Call Us |
| 5 |
98-4543-03 |
BRACKET-ENGINE MOUNT, RH Price: $180.69 |
| 6 |
98-9749 |
PLATE-THROTTLE Price: $29.11 |
| 7 |
135371 |
MWR CLUTCH ARM AS Price: Call Us |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 8 |
74760636 |
BOLT Price: Call Us |
| 9 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 10 |
76020412 |
COTTER PIN Price: Call Us |
| 11 |
19131316 |
WASHER Price: Call Us |
| 11 |
98-4513-03 |
BRACKET-ENGINE, REAR Price: $78.69 |
| 12 |
104-1474-03 |
DISCONTINUED Price: Call Us |
| 12 |
131861 |
SUB= 532131861 Price: Call Us |
| 13 |
139352 |
HANDLE.ASM.LIFT Price: Call Us |
| 13 |
3213-2 |
SCREW-HH Price: $1.90 |
| 14 |
123496X |
SPRING COMPRESSIO Price: Call Us |
| 15 |
19131212 |
WASHER T Price: Call Us |
| 15 |
98-9322 |
SCREW-HSH Price: $4.89 |
| 16 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 16 |
4921H |
SPRING.RETAINER Price: Call Us |
| 17 |
98-4598 |
CABLE-BATTERY, NEGATIVE Price: $69.78 |
| 18 |
115-8009 |
KIT-ENGINE DSL This part replaces 106-7778. Price: $12,424.95 |
| 18 |
142028 |
TRUNION ADJ Price: Call Us |
| 18 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 18 |
57-6390 |
NUT-JAM Price: $0.89 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
73680400 |
SUB= 73690400 Price: Call Us |
| 20 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 20 |
74760644 |
BOLT Price: Call Us |
| 21 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 22 |
48-7890 |
NUT-HEX Price: $0.25 |
| 23 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 23 |
98-4594 |
CLAMP-RETAINER Price: $15.98 |
| 24 |
19171612 |
WASHER GT Price: Call Us |
| 24 |
32128-36 |
NUT-HF Price: $1.56 |
| 25 |
121933X |
TUBE SPACER Price: Call Us |
| 25 |
98-4515-03 |
BRACKET-REAR ENGINE, LH Price: $62.07 |
| 26 |
141470 |
ROD LIFT MOWER Price: Call Us |
| 26 |
98-4514-03 |
BRACKET-REAR ENGINE, RH Price: $55.86 |
| 27 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 27 |
323-12 |
SCREW-HH Price: $1.14 |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 28 |
76020312 |
SUB= 3145 Price: Call Us |
| 29 |
131655 |
CLUTCH LINK Price: Call Us |
| 29 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 30 |
73350600 |
NUT Price: Call Us |
| 31 |
43-0090 |
SCREW-HH Price: $8.05 |
| 32 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
