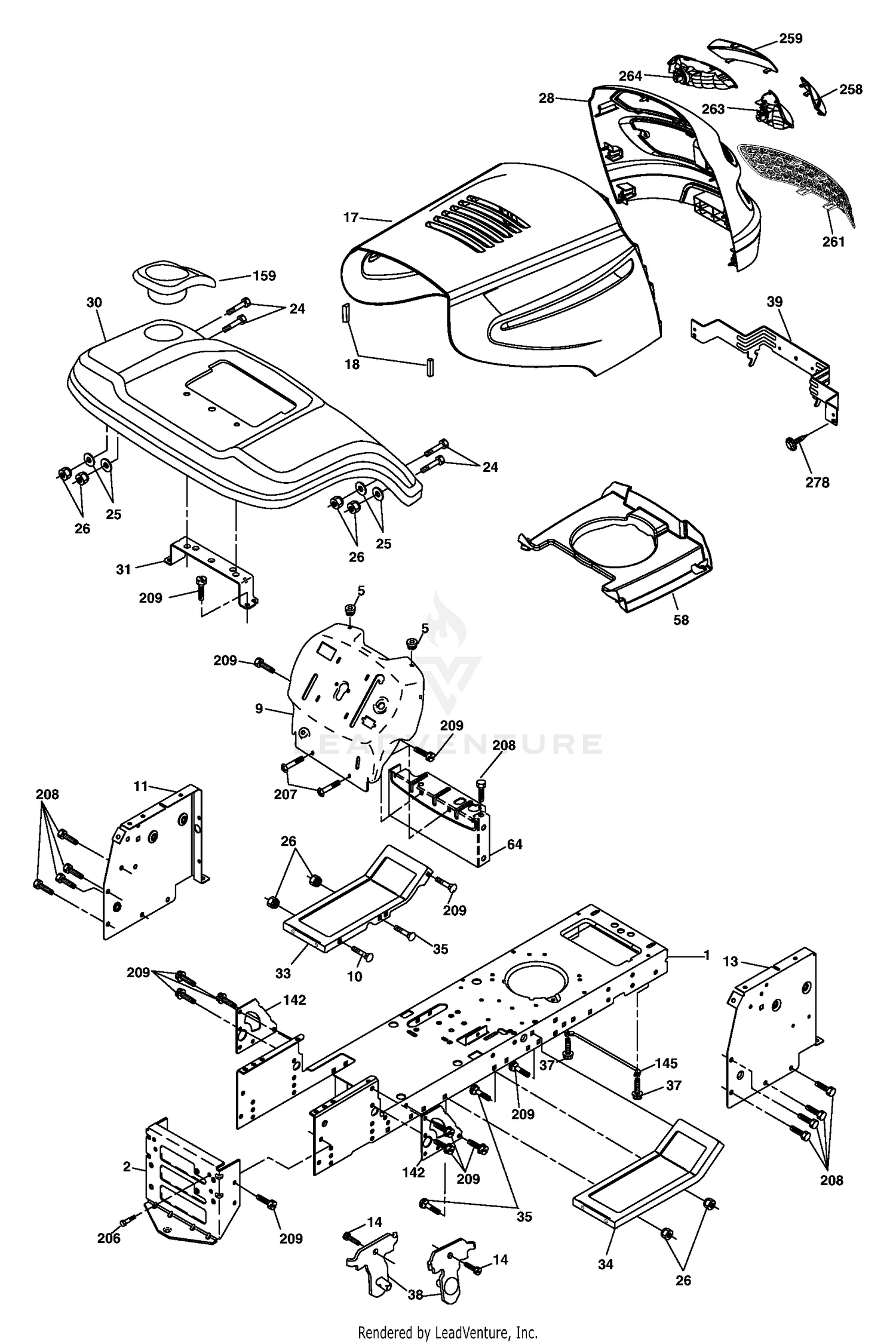

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
193510X010 |
Dash P/L Price: Call Us |
| 10 |
112-7018 |
VALVE-INLET Price: $41.87 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 13 |
179174X010 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
183393X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 112-7021. Price: $34.21 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 30 |
192528X428 |
Fender Price: Call Us |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt RDHD SHT SQNK 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 58 |
184322 |
Duct Air Price: Call Us |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
110-3832 |
WASHER-PLAIN Price: $0.71 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 160 |
112-7020 |
ROCKER ARM ASM Price: $75.86 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 258 |
183835X599 |
Lens Grille Pro RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille Pro LH Price: Call Us |
| 261 |
183829X428 |
Insert Grille Price: Call Us |
| 263 |
183833 |
Bezel Grille RH Price: Call Us |
| 264 |
183832 |
Bezel Grille LH Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 5479J |
Plug |
BTN BlK Price: Call Us 5479J |
