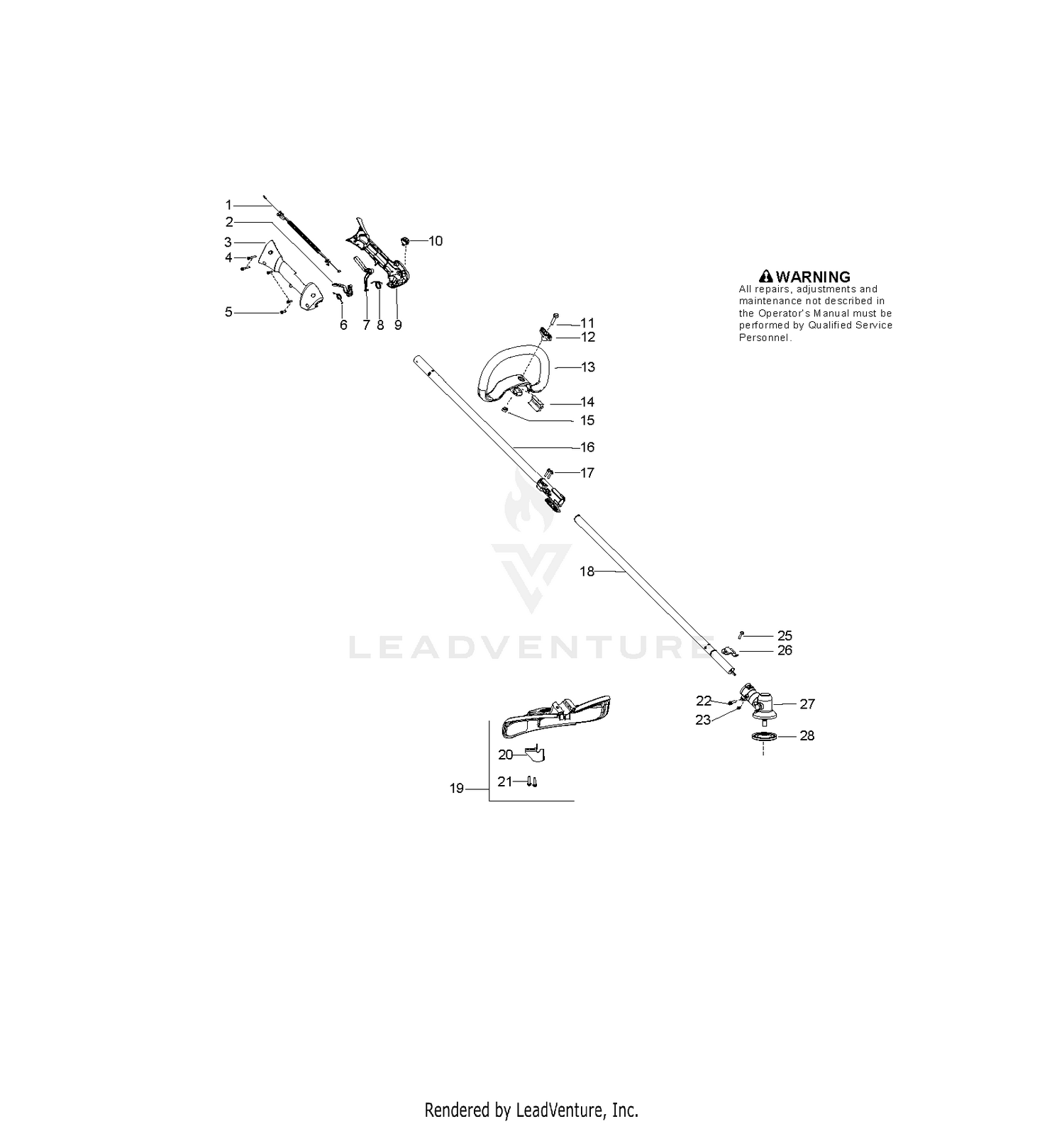

SHAFT & HANDLE
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545125301 | ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 | 545066001 | TRIGGER THROTTLE Price: $5.99 |
| 3 | 545062001 | HOUSING-THROTTLE RH Price: $8.99 |
| 4 | 530016448 | SCREW Price: $2.99 |
| 5 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 6 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 7 | 530059804 | THROTTLE LOCKOUT Price: $4.99 |
| 8 | 545045601 | SPRING LOCKOUT Price: $4.99 |
| 10 | 545049301 | KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 16 | 545006066 | DRIVE SHAFT Price: $79.99 |
| 17 | 503200725 | SCREW Price: $2.99 |
| 18 | 545006067 | KIT DRIVESHAFT LOWER LDX Price: $99.99 |
| 19 | 545030901 | KIT COBI SHIELD Price: $27.99 |
| 20 | 530052286 | Limiter - Line Price: $0.68 |
| 21 | 530015814 | SCREW Price: $0.17 |
| 22 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 23 | 545003902 | SCREW Price: $2.99 |
| 25 | 530015771 | SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 26 | 530057554 | BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 27 | 530096295 | ASSY GEARBOX Price: $34.99 |
| 28 | 537234901 | DRIVE DISC Price: $19.99 |
