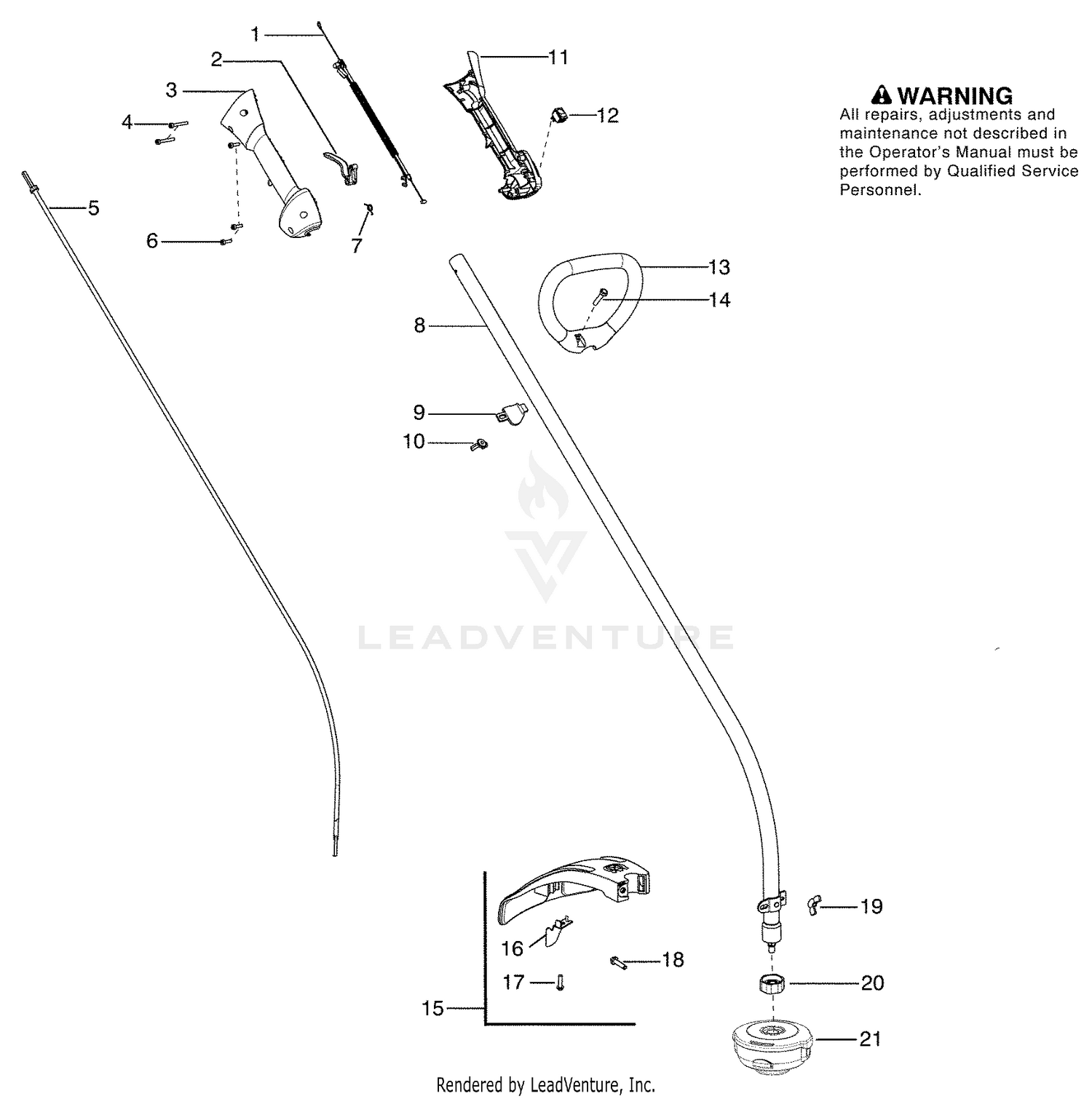

Handle & Controls
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41_098_04 | Starter Assembly (Incl. Ref. #8-13) Price: Call Us |
| 1 | 545125301 | ASSY-CABLE WIRE HARNESS Price: $19.99 |
| 2 | 45_126_17 | Brace-Tail Price: Call Us |
| 2 | 545066001 | TRIGGER THROTTLE Price: $5.99 |
| 3 | 545062002 | HOUSING-THROTTLE (RH) Price: $9.99 |
| 3 | X-67-83 | Screw Price: Call Us |
| 4 | 530016448 | SCREW Price: $2.99 |
| 4 | X-67-62 | Screw Price: Call Us |
| 5 | 545007508 | FLEX SHAFT 52" Price: $19.99 |
| 5 | X-159-2 | Screw Price: Call Us |
| 6 | 47_126_29 | Bracket-Solenoid Price: Call Us |
| 6 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 7 | 41_086_19 | Bolt-Thru Price: Call Us |
| 7 | 530016454 | SPRING TRIGGER Price: $4.99 |
| 8 | 41_227_04 | Cap-Commutator End Price: Call Us |
| 8 | 545008088 | KIT-D'SHAFT 52" SILVER Price: $9.99 |
| 9 | 52_755_15 | Kit-Brush Price: Call Us |
| 9 | 530059185 | CLAMP ASSIST HANDLE Price: $2.99 |
| 10 | 45_170_02 | Armature Price: Call Us |
| 10 | 530091373 | NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 11 | 41_227_03 | Cap-Drive End Price: Call Us |
| 11 | 545067001 | HSG THROTTLE LH Price: $9.99 |
| 12 | 47_755_07 | Kit-Drive Price: Call Us |
| 12 | 545049301 | KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 13 | 47_755_13 | Kit-Drive Parts Price: Call Us |
| 13 | 545042201 | HANDLE Price: $14.99 |
| 14 | 530015820 | BOLT, TYPE 2 Price: $3.99 |
| 16 | 545081862 | KIT - LIMITER - LINE Price: $5.99 |
| 17 | 530015814 | SCREW Price: $0.17 |
| 18 | 530015820 | BOLT, TYPE 2 Price: $3.99 |
| 19 | 530091373 | NUT-"D" HANDLE This part replaces 530016152. Price: $3.99 |
| 20 | 545017403 | DUST CUP Price: $5.99 |
| 25_450_03 | Tag-Caution | Price: Call Us 25_450_03 |
