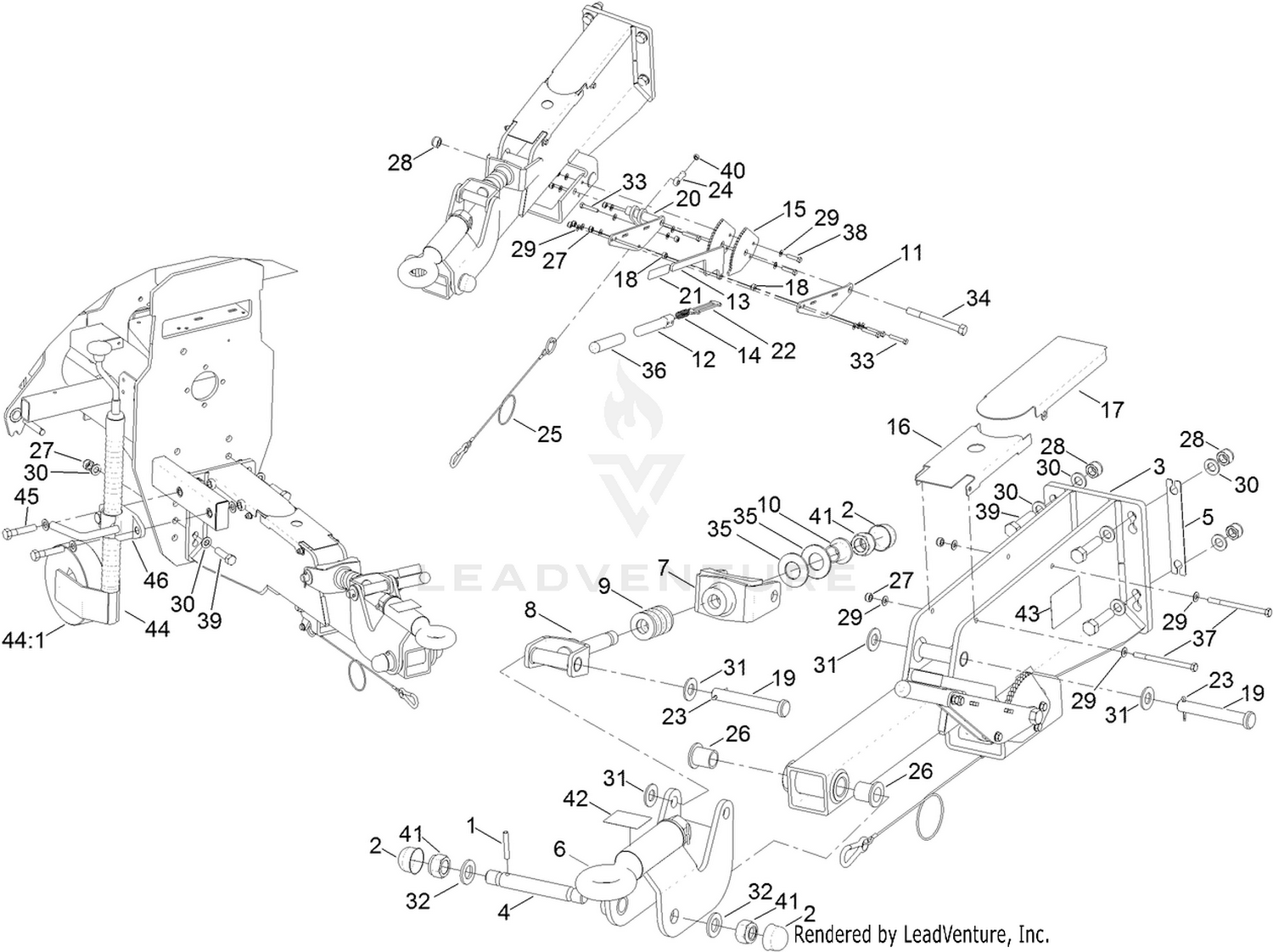

Drawbar Assembly — Parts Catalog

Parts (44)

Ref	Part Number	Description
2	10-11-100	NUT CAP M24 Price: $1.97
3	111-1856-03	DRAWBAR Price: $678.25
4	111-1877	PIN - DRAWBAR Price: $50.45
5	111-1920	SHIM - DRAWBAR Price: $7.55
6	111-1931-03	HITCH-PICKUP Price: $154.02
7	111-1945-03	SEAT-SPRING Price: $101.91
8	111-1946-03	SEAT-SPRING Price: $135.99
9	111-1953	SPRING-DIE Price: $107.79
10	111-1955	WASHERS-SPRING Price: $23.83
11	111-1999-03	BODY-HANDBRAKE Price: $22.84
12	111-2000-03	HANDLE-HANDBRAKE Price: $139.82
13	111-2001-03	RELEASE-HANDBRAKE Price: $22.78
14	111-2003	SPRING-HAND BRAKE Price: $10.84
15	111-2004	RATCHET-HANDBRAKE Price: $24.08
16	111-2131-03	STAND-PTO Price: $26.50
17	111-2132-03	COVER-DRAWBAR Price: $27.28
18	111-2156	BOSS-HANDBRAKE Price: $15.01
19	111-2487	PIN-SPRING Price: $45.10
20	111-2518-03	HANDBRAKE LEVER ASSEMBLY Price: $87.83
21	111-2565	SLEEVES-FLAT Price: $4.28
22	111-2641	STOP-HANDBRAKE Price: $13.76
23	74-11-001	PIN Price: $1.42
24	111-2896	ROD END-FEMALE Price: $20.36
25	111-2897	CABLE-BREAK WAY Price: $38.13
26	HY3512	BUSHING-FLANGED Price: $15.57
27	09441	NUT M8 NYL INSERT T TYPE Price: $1.39
28	09456	NUT M16 X 2 NYL INS P TYPE Price: $1.40
29	09475	WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
30	09491	WASHER M16 PLAIN Price: $1.42
31	09499	WASHER M20 PLAIN Price: $1.40
32	09555	WASHER M24 PLAIN Price: $1.31
33	09654	BOLT M8 X 45 HX.HD GR.8.8 Z/P Price: $1.40
34	09757	BOLT Price: $7.41
35	767815	WASHER-BELLEVILLE Price: $7.80
36	HY510197	HANDLE-GRIP Price: $9.88
37	ZBH1H120U	BOLT M8*120 Price: $1.38
38	ZDH1H035U	SETSCREW HEX HD M8X35 Price: $1.36
39	ZDH1P060U	HEX HD SET SCW.M16*60 Price: $1.52
40	ZNH1H000U	HEX.NUT M8 Price: $1.40
41	ZNN1X000U	HEX.NUT M24 NYLOC Price: $5.40
42	66-13-016	DECAL-DRAWBAR Price: Call Us
43	66-13-023	DECAL WARNING HANDBRAKE Price: $21.18
44	134-0492	JOCKEY ASSEMBLY Price: $161.37
45	HY09510	BOLT-HEX, HD Price: $1.72
