| Ref | Part Number | Description |
|---|
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
75-1420-01 |
DISCONTINUED This part replaces 75-1420. Price: Call Us |
| 3 |
106-5950 |
RH FENDER ASM This part replaces 93-7579. Price: $661.25 |
| 4 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 5 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 6 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 7 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 8 |
98-9746 |
HOOD ASM This part replaces 98-9319. Price: $1,782.58 |
| 9 |
93-0081 |
STRIP-SEAL Price: $73.83 |
| 10 |
98-4521 |
DISCONTINUED Price: Call Us |
| 11 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 12 |
98-4573-03 |
SCREEN-HOOD, REAR This part replaces 98-4573. Price: $74.71 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 15 |
321-39 |
SCREW-HH Price: $0.42 |
| 16 |
62-7400 |
DECAL Price: $24.54 |
| 17 |
63-6900-01 |
LH HOOD HINGE PLATE ASM This part replaces 63-6900. Price: $23.15 |
| 18 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 20 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 21 |
75-0570 |
CABLE-HOOD Price: $16.66 |
| 22 |
98-4572 |
BRACKET-CLAMP, HOSE Price: $33.62 |
| 23 |
92-5751 |
DECAL-HOOD, LH Price: $34.66 |
| 24 |
93-6698 |
DISCONTINUED Price: Call Us |
| 25 |
98-9340 |
DECAL Price: $18.20 |
| 26 |
75-5810-03 |
BOX-TOOL ASM This part replaces 75-5810. Price: $234.90 |
| 27 |
98-9314 |
GROMMET Price: $15.98 |
| 29 |
106-5951 |
LH FENDER ASM This part replaces 75-3860. Price: $625.15 |
| 30 |
322-3 |
SCREW-HH Price: $0.79 |
| 31 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 32 |
93-6689 |
DECAL-NO RIDERS Price: $9.75 |
| 33 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 34 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 35 |
75-0650 |
TREAD-FOOTREST, LH Price: $30.34 |
| 36 |
75-1410-01 |
PLATE-ACCESS, FLOOR This part replaces 75-1410. Price: $142.43 |
| 37 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 38 |
75-1390-01 |
COVER-ACCESS, FRONT This part replaces 75-1390. Price: $78.27 |
| 39 |
75-0620 |
TREAD-FOOT, LH Price: $24.33 |
| 40 |
322-4 |
SCREW-HH Price: $0.35 |
| 41 |
93-3626 |
BRACKET-HOSE Price: $23.80 |
| 42 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 42 |
75-6840 |
KNOB-KNURLED Price: $16.22 |
| 43 |
107-1839 |
KIT-FRAME ASM, RM5000 This part replaces 98-4549. Price: $3,818.37 |
| 44 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 46 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 47 |
75-6260-03 |
COVER-BOX, TOOL This part replaces 75-6260. Price: $59.24 |
| 48 |
93-8051 |
DISCONTINUED Price: Call Us |
| 49 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 50 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 51 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 52 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 54 |
72-3560 |
DECAL Price: $12.52 |
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501693001 |
501693001 |
THROTTLE FLAP Price: $5.55 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503081801 |
503081801 |
Washer Price: $7.50 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |

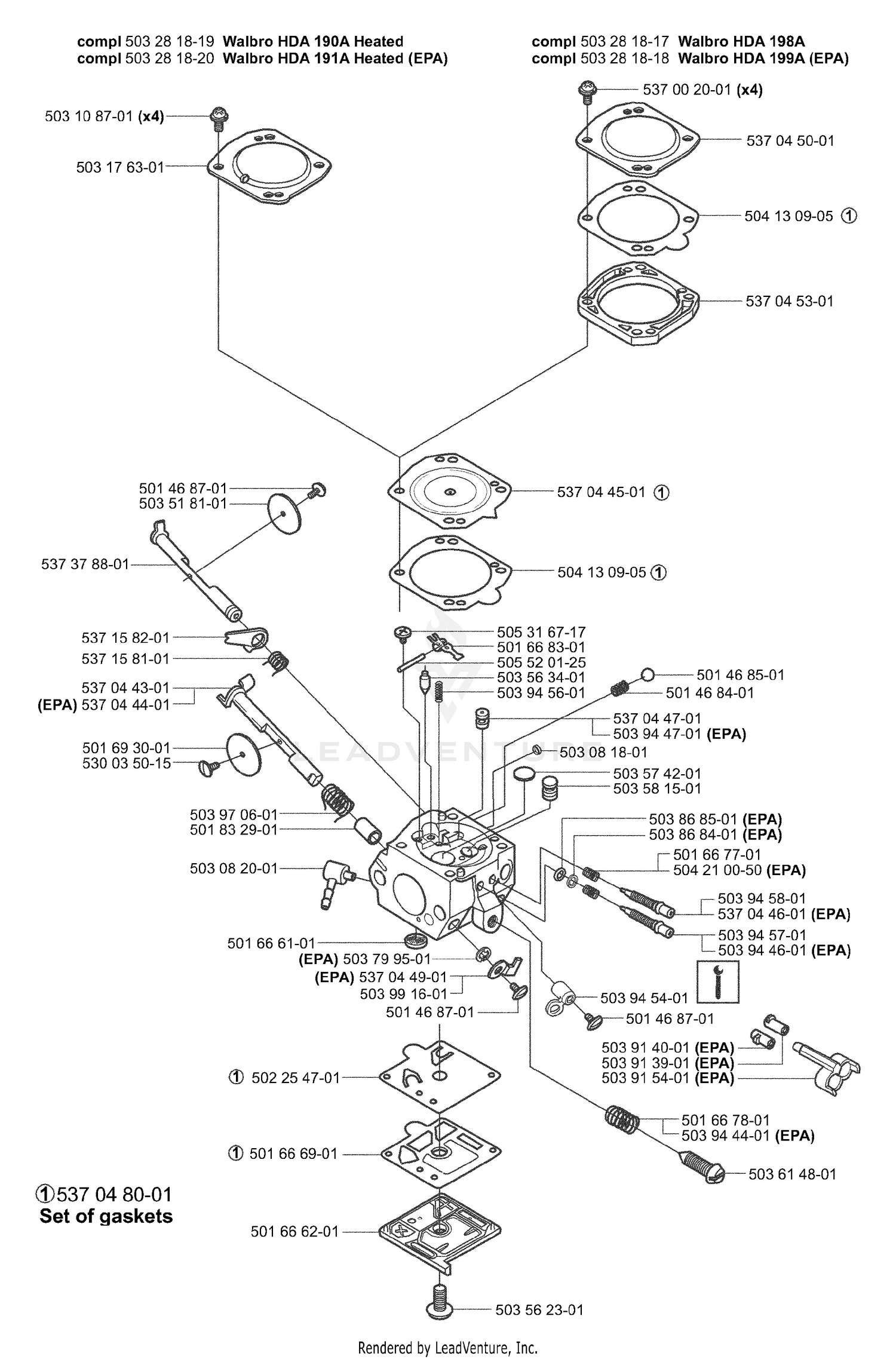

| 503281817 |
503281817 |
CARBURETOR Price: $109.99 |
| 503281818 |
505203002 |
CARBURETOR W/SLEEVE This part replaces 503281818. Price: $79.99 |
| 503281819 |
505203002 |
CARBURETOR W/SLEEVE This part replaces 503281819. Price: $79.99 |
| 503281820 |
505203002 |
CARBURETOR W/SLEEVE This part replaces 503281820. Price: $79.99 |
| 503518101 |
503518101 |
THROTTLE VALVE Price: $2.12 |
| 503562301 |
503562301 |
Screw Price: $0.40 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503574201 |
503574201 |
WELCH PLUG Price: $6.99 |
| 503581501 |
503581501 |
JET Price: $4.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503799501 |
503799501 |
CLIP Price: $6.99 |
| 503868401 |
503868401 |
Washer Price: $0.39 |
| 503868501 |
503868501 |
O-Ring Price: $0.36 |
| 503913901 |
503913901 |
LIMITER CAP Price: $2.99 |
| 503914001 |
503914001 |
LIMITER CAP Price: $4.99 |
| 503915401 |
503915401 |
CAP Price: $7.99 |
| 503944401 |
503944401 |
SPRING Price: $11.99 |
| 503944601 |
505554601 |
LOW SPEED NEEDLE This part replaces 503944601. Price: $3.99 |
| 503944701 |
503944701 |
JET Price: $4.99 |
| 503945401 |
503945401 |
LEVER Price: $3.99 |
| 503945601 |
503945601 |
SPRING Price: $2.99 |
| 503945701 |
503945701 |
IDLE NEEDLE Price: $4.99 |
| 503945801 |
503945801 |
NEEDLE ADJUSTING Price: $3.99 |
| 503970601 |
503970601 |
RETURN SPRING Price: $2.99 |
| 503991601 |
503991601 |
LEVER Price: $2.99 |
| 504130905 |
504130905 |
GASKET Price: $2.99 |
| 504210050 |
530035293 |
NEEDLE SPRING This part replaces 504210050. Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 537002001 |
537002001 |
SCREW Price: $0.39 |
| 537044301 |
537044301 |
THROTTLE SHAFT Price: $19.99 |
| 537044401 |
537044401 |
THROTTLE SHAFT Price: $3.99 |
| 537044501 |
537044501 |
DIAPHRAM Price: $7.99 |
| 537044601 |
537044601 |
NEEDLE HIGH SPEED Price: $11.99 |
| 537044701 |
537044701 |
JET Price: $5.99 |
| 537044901 |
537044901 |
STOP Price: $2.99 |
| 537045001 |
537045001 |
COVER Price: $1.20 |
| 537045301 |
537045301 |
PLATE Price: $3.99 |
| 537048001 |
537048001 |
GASKET SET Price: $7.99 |
| 537158101 |
537158101 |
SPRING Price: $9.99 |
| 537158201 |
537158201 |
LEVER Price: $3.99 |
